About us:
----Now Haodong Technology is the first and only manufacture in China who apply rare-earth catalytic combustion technology in infrared burner&heater. It can save 10%-20% energy than non-catalytic type.At the same time, it prolongs the use life of ceramic plate.
Now we mainly manufacture gas heaters, bbq burners and industrial burners.

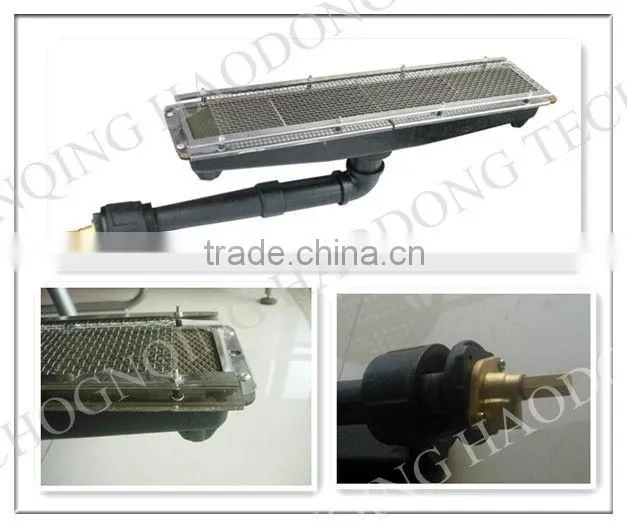

Industrial Infrared Ceramic Gas Heater for paper dying equipment (HD162)
Model |
Length (mm) |
Width (mm) |
Hight(mm) |
Weight (kg) |
Consumption |
Heat Output |
Inlet Port (Inch) |
||
NG |
LPG |
||||||||
m3/h |
kg/h |
KW/h |
Kcal/h |
3/8 |
|||||
HD162 |
570 |
130 |
175 |
8.0 |
0.49 |
0.45 |
6.3 |
5400 |
|
The largeat advantage of our products compared to others :
Material Descriptions:
Shell: gray cast iron
Upper cover : stamped stainless iron
Burning net: Fe-Cr-Al material
Nozzle: brass
Core components: cordierite honeycomb burner plates with rare-earth catalyst-coated
Advantages:
- Energy saving: conversion rate≥90%
- Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
- Whole combustion: 95% of energy released in the form of infrared ray; heating the objects directly
- Long useful time: ≥11000hr
- Easily installed
Summary of the product:
- Its catalytic combustion is the best combustion mode ,which means that gas (natural gas, liquefied petroleum gas) and combustion-supporting gas (air) are mixed according to the scientific proportion through burner shell (pre-mixed room) with the precise design and manufacturing .
- Ignited by the ignition, the gas mixture is burning on surface of catalyst which lies in the holes of porous cordierite honeycomb plate .
- The vast majority(95%) of the heat generated in the form of infrared radiation penetrate the object directly,put an end to energy loss caused by heating the air to heat the object, the mode of heat convection heating , greatly improve the energy conversion ability so as to further save the energy (save 60% of the operation costs under the same industrial conditions compared to the ordinary heating mode --electric heating ).
- Gas is almost under complete combustion as a result of catalytic combustio. the flue gas pollution is extremely low (CO <0.02%, NOx<10ppm) ,fully meeting the national environmental standards and there is no need for direct exhaust fan
Technical parameters
Items |
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG) |
Light-off temperature |
≥350 |
complete combustion temperature |
≤380 |
|
Heat source temperature |
around 850 |
Baking temperature range |
30---850 |
Wavelength range |
1.9μm--15μm |
|
Furnace pressure natural |
2000pa(NG)/2800pa(LPG) |
Applied ranges:
1. Coating Industry: forging heat coating, liquid, powder coating, pre-heating the water to deal with dry acid.

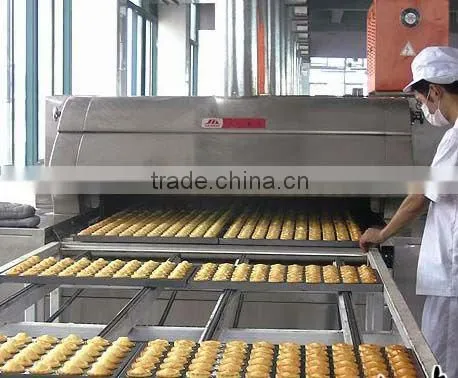

2. The food industry: drying for processed food such as cookies, egg rolls, snow rice cakes, shredded squid, tea processing and baking.
3. Agriculture and animal husbandry: keeping warm for a variety of birds, the livestock shed;grain drying.
4. Food and beverage industry: all kinds of barbecue, fruit and vegetable dehydration.
5. Drying operation in printing and dyeing, paper, wood, carpet and other industries
6. Bake ceramic mold industry, the Health and embryos, the surface drying of glazed ceramic tiles.
7. The heat treatment of metallic materials (300 --- 800 ).
8. Heating ,warming and insulation for commercial buildings and workshop.
We also have pulse igniter, ignition pin and solenoid valve.
Factory & Packing Photoes:
Contact information:
Trade manager:cn1500440252
Whatsapp:+ 86 13883514635
If any need, pls contact us freely, then we will offer the best service for you.
