Help CenterIndustrial Tea Dryer Drying Equipment HD242
Related Products
-
Industrial Paint Drying Machine Heater Parts HD262US$ 30 - 120MOQ: 10 Pieces -
Infrared Gas Heater for Powder Coating Booth/Powder Coating Oven(HD242)US$ 30 - 120MOQ: 10 Pieces
-
Industrial Infrared Ceramic Gas Heater for Paper Dying Equipment (HD162)US$ 50 - 80MOQ: 100 Pieces
-
HD162 Infrared Textile Drying EquipmentUS$ 30 - 120MOQ: 10 Pieces
-
Industrial Thermal Gas Heater Used in Poder Coating Equipment HD262US$ 30 - 120MOQ: 10 Pieces
company profiles :
Established in 2005 ,Chongqing Haodong Technology co.,Ltd is a mannufacturer specialiaed in the research, development and production of infrared catalytic burner.
The inrared burner is based on catalytic combustion patent technique which is advanced in the field and which is developed by Sichuan Chemical Works Ltd. Now they have been successfully applied in coating,foods drying and baking ,drying process, heating at low and middle temperatures, warming , heat preservaton,Now we mainly sell infrared gas burner,room heater ,chain,and other products
Supplier assessment certificate

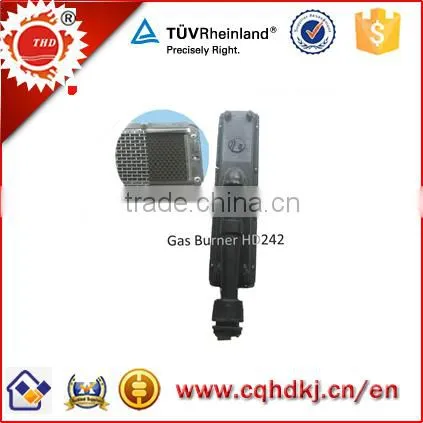

infrared gas burner for powder coating oven heating equipment (HD242)
Model |
Length (mm) |
Width (mm) |
Height (mm) |
Weight (kg) |
Consumption |
Heat Output |
Inlet Port (Inch) |
|||
NG |
LPG |
|||||||||
m3/h |
kg/h |
KW/h |
Kcal/h |
BTU/h |
||||||
HD242 |
840 |
130 |
175 |
11.7 |
0.74 |
0.68 |
9.4 |
8120 |
31972 |
3/8 |
Material of industrial drying equipment :
Shell:gray cast iron
Upper cover:stamped stainless iron
Burning net:Fe-Cr-Al material
Nozzle:brass

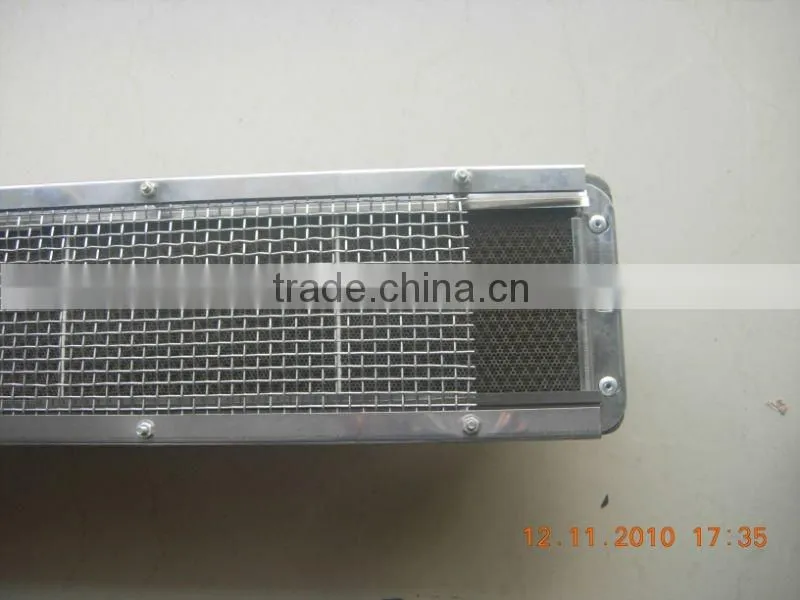

Core components:cordierite honeycomb burner plates with rare-earth catalyst-coated
Technical parameters:
|
Items
|
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
Light-off temperature |
≥350 |
complete combustion temperature |
≤380 |
|
Heat source temperature
|
around 850 |
Baking temperature range |
30---850 |
Wavelength range |
1.9m--15m |
|
Furnance pressure natural |
Gas 150mmAq;liquefied petroleum gas 280mmAq
|
Advantages of industrial drying equipment :
1. Energy saving: conversion rate:≥90%
2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3. Whole combustion: 95% of energy released in the form of infrared ray ;heating the objects directly
4. Long life:≥11000hr
5. Easily installed
6. Flameless & smokeless
Application of industrial drying equipment
Coating Industry: forging heat coating, liquid/powder coating, spray booth, drying curing oven, surface painting, pre-heating treatment, infrared paint dryer etc.
Other models for choose

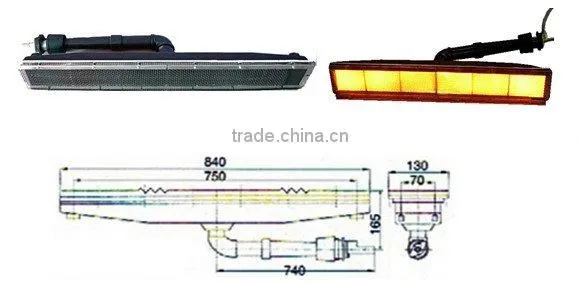

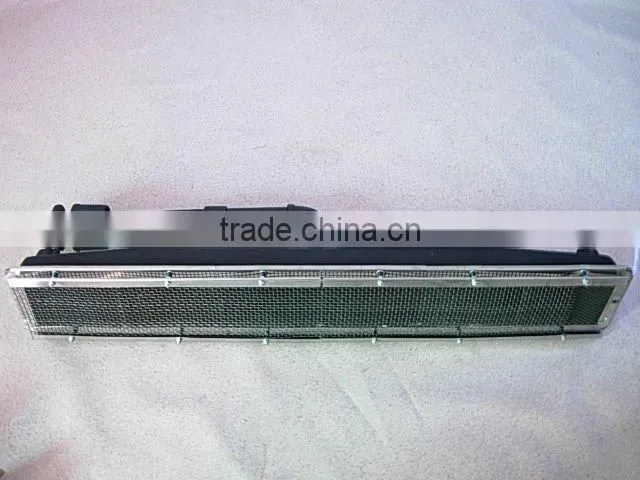

industrial tea dryer drying equipment HD242
Specification
| MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
| HD61 | 423*80*94 | 3.8 | NG/LPG | 2.4 | 2030 | 0.18 | 0.18 |
| HD82 | 219*164*108 | 4.8 | NG/LPG | 3.1 | 2700 | 0.24 | 0.24 |
| HD101 | 690*80*115 | 6.9 | NG/LPG | 3.9 | 3380 | 0.3 | 0.29 |
| HD162 | 570*130*175 | 8 | NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD242 | 840*130*175 | 11.7 | NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
| HD262 | 930*130*175 | 13 | NG/LPG | 10.9 | 9360 | 0.8 | 0.82 |
Company honours
Contact information Whatsup:13883514635
Trade manager:cn1500440252
If any need, welcome to contact us freely!!
We'll do our best to serve for you!!
