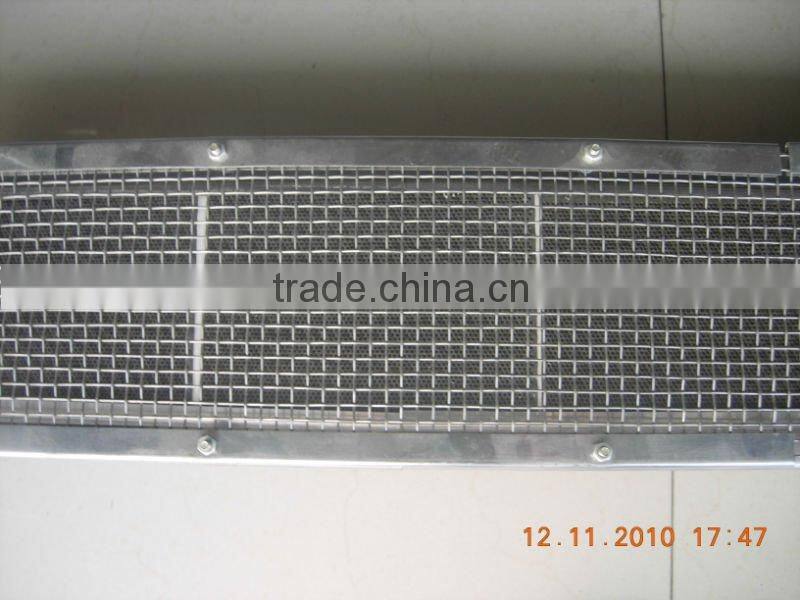

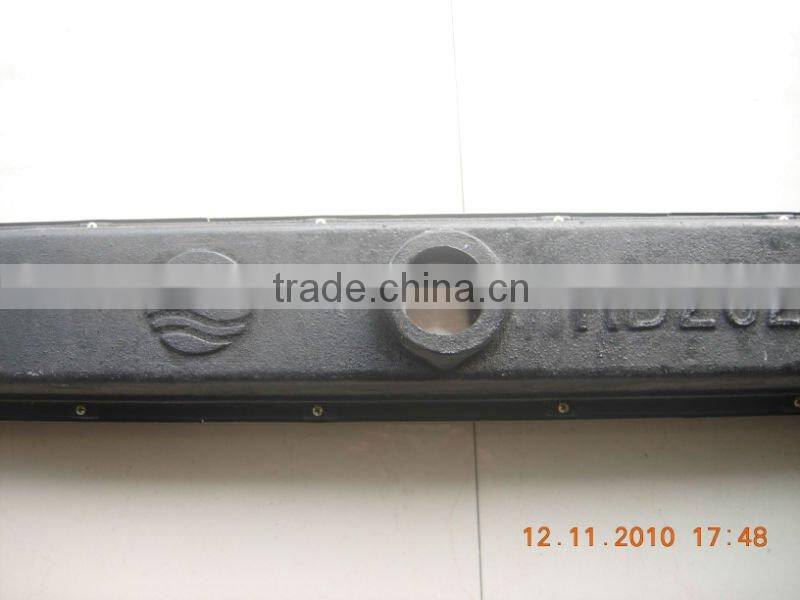

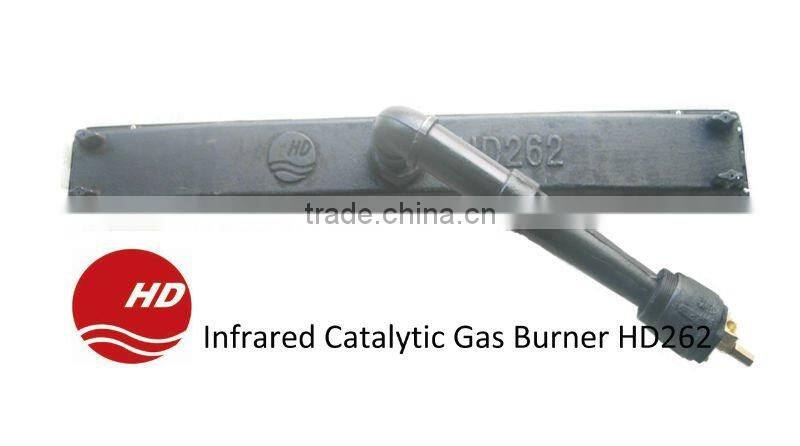

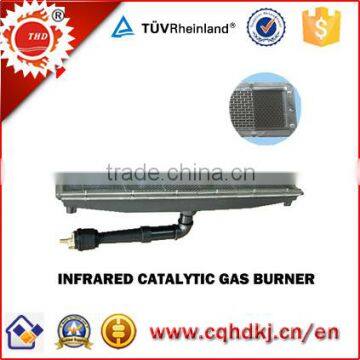

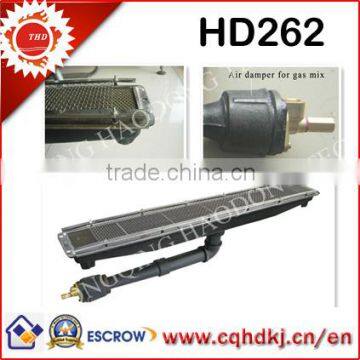

Help CenterHD262 Infrared Rotary Catalytic Burner(HD262)
Related Products
-
Gas Heater Parts for Powder Coating Boiler HD162US$ 10 - 100MOQ: 10 Pieces -
Industrial Bread Oven Heating Burner HD262 Quality ChoiceUS$ 60 - 120MOQ: 10 Pieces
-
Lpg Portable Infrared Gas Stove Heater Parts HD162US$ 30 - 120MOQ: 10 Pieces
-
Industrial Tea Dryer Drying Equipment HD242US$ 30 - 120MOQ: 10 Pieces
-
Industrial Paint Drying Machine Heater Parts HD262US$ 30 - 120MOQ: 10 Pieces
Model |
Length (mm) |
Width (mm) |
Hight(mm) |
Weight (kg) |
Consumption |
Heat Output |
Inlet Port (Inch) |
||
NG |
LPG |
||||||||
m3/h |
kg/h |
Kw/h |
Kcal/h |
3/8 |
|||||
HD262 |
930 |
130 |
175 |
13.0 |
0.80 |
0.74 |
10.9 |
9360 |
|
company profiles :
Established in 2005 ,Chongqing Haodong Technology co.,Ltd is a mannufacturer specialiaed in the research, development and production of infrared catalytic burner.
The inrared burner is based on catalytic combustion patent technique which is advanced in the field and which is developed by Sichuan Chemical Works Ltd. Now thy have been successfully applied in coating,foods drying and baking ,drying process, heating at low and middle temperatures, warming , heat preservaton and so on .
http://cqhdkj.en.china.cn/company_profile/capability_assessment.html

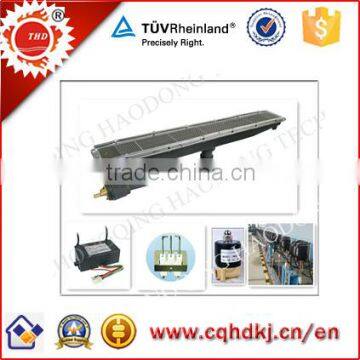

Other models for choose
| MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
| HD61 | 423*80*94 | 3.8 | NG/LPG | 2.4 | 2030 | 0.18 | 0.18 |
| HD82 | 219*164*108 | 4.8 | NG/LPG | 3.1 | 2700 | 0.24 | 0.24 |
| HD101 | 690*80*115 | 6.9 | NG/LPG | 3.9 | 3380 | 0.3 | 0.29 |
| HD162 | 570*130*175 | 8 | NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD242 | 840*130*175 | 11.7 | NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
| HD262 | 930*130*175 | 13 | NG/LPG | 10.9 | 9360 | 0.8 | 0.82 |
Infrated catalystic burner features:
Energy saving:conversion rate:≥90%
Environmental protection:CO≤80ppm;NOx≤10ppm;CHx≤50ppm
Taking full usage of heat:95% of energy released in the form of infrared ray ;heating the objects directly
Long life:≥11000hr
Easily installed
Main purposes:
1. Coating Industry: forging heat coating, liquid, powder coating, pre-heating the water to deal with dry acid.
2. The food industry: drying for processed food such as cookies, egg rolls, snow rice cakes, shredded squid, fish sauce, ham etc;tea processing and baking.
3. Agriculture and animal husbandry: keeping warm for a variety of birds, the livestock shed;grain drying.
4. Food and beverage industry: all kinds of barbecue, fruit and vegetable dehydration.
5. Drying operation in printing and dyeing, paper, wood, carpet and other industries
6. Bake ceramic mold industry, the Health and embryos, the surface drying of glazed ceramic tiles.
7. The heat treatment of metallic materials (300 --- 800 ).
8. Heating ,warming and insulation for commercial buildings and workshop
The user manual
Table 1:The use of technical parameters
|
Items
|
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
Light-off temperature |
≥350 |
complete combustion temperature |
≤380 |
|
Heat source temperature
|
around 850 |
Baking temperature range |
30---850 |
Wavelength range |
1.9μm--15μm |
|
Furnance pressure natural |
2000pa(NG)/2800pa(LPG) |
Applied Range :

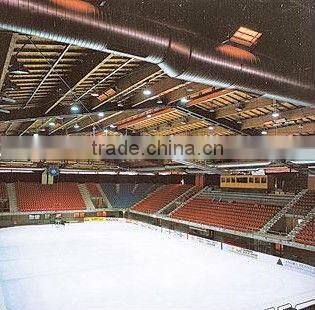

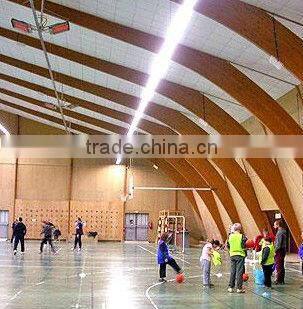

Heating Industry: workshop heater, sports hall heater, home heater, patio heater, greenhouse heater etc.
Food Industry: Rice Biscuit assembly line, grilled chicken, biscuit, egg roll, roasting shredded squid oven, oven for roast duck, smokeless oven, middle eastern oven, baking, etc.

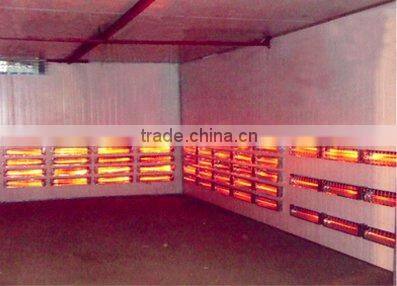

Painting Industry: Liquefied or powered painting assembly line, warm-up, preliminary treatment of heating, desiccating wood, galvanization drying assembly line, phosphatization drying assembly line
Fiber industry: Carpet latex dryer, dyeing dryer, printing dryer, textile dryer, industrial clothes dryer, latex gloves drying assembly line
Glass and ceramics industry: Enamel firing dryer, glass oven, heat-setting machine, mould drying, fritting, parching
Paper industry: All kinds of paper dry lines and auxiliary drying heat wall
Farming and animal husbandry: Heating of barton, heating of crops, grain dryer

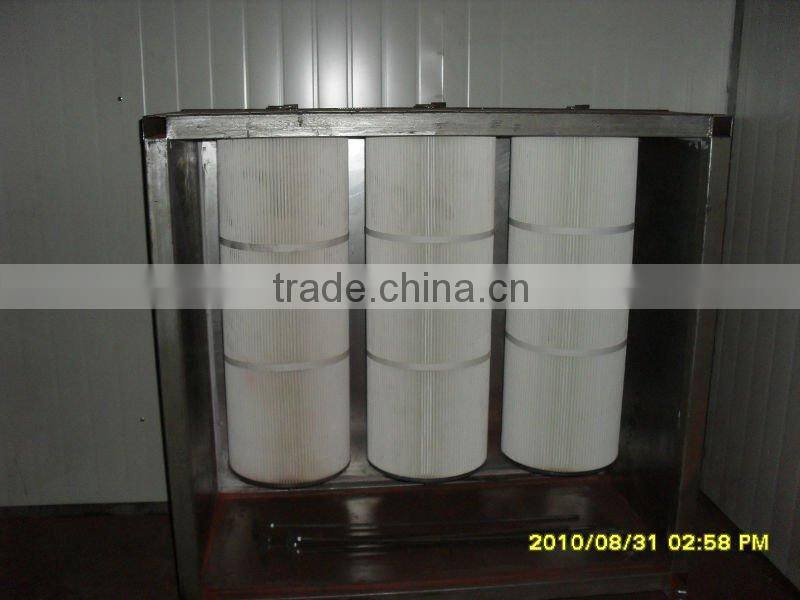

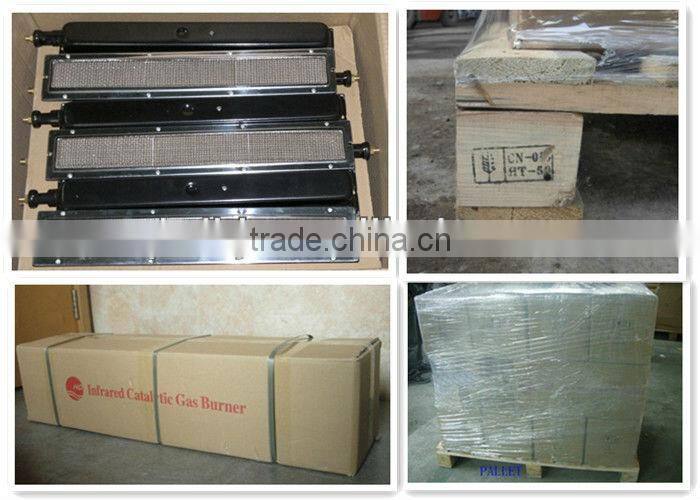

Factory&Packing photos:
Contact information: Trade manager:cn1500440252 Whatsapp:+86 13883514635
If any need, welcome to contact us freely!!
We'll do our best to serve for you!!
Your satisfaction is our passion!!!
