----Now Haodong Technology is the first and only manufacture in China who apply rare-earth catalytic combustion technology in infrared burner&heater.
After coated with processed black rare-earth on the ceramic surface,the energy-transfer rate goes up greating,can save 10% energy than non-catalytic type.At the same time, it prolongs the use life of ceramic plate.
Now we have manufacture two series ceramic gas infrared burners: industrial series and bbq series.
https://img13.fr-trading.com/company_profile/capability_assessment.html

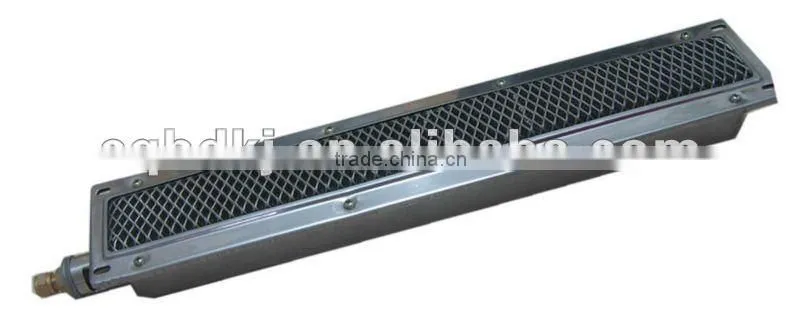

1. BBQ series Gas Infrared burners
MODEL |
Dimension |
Weight |
Gas Type |
Heat Output |
Power |
|
mm |
kg |
BTU/h |
Kcal/hr |
Kw |
||
HD220 |
220*170*60 |
0.9 |
NG/LPG |
10000 |
2520 | 2.94 |
HD400 |
400*80*60 |
0.7 |
NG/LPG |
9030 |
2300 |
2.72 |
HD538 |
538*85*65 |
1.4 |
NG/LPG |
13500 |
3400 |
3.9 |
HD668 |
668*85*65 |
1.7 |
NG/LPG |
166000 |
4180 |
4.8 |
Material:
1. Shell: galvanized sheet
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron

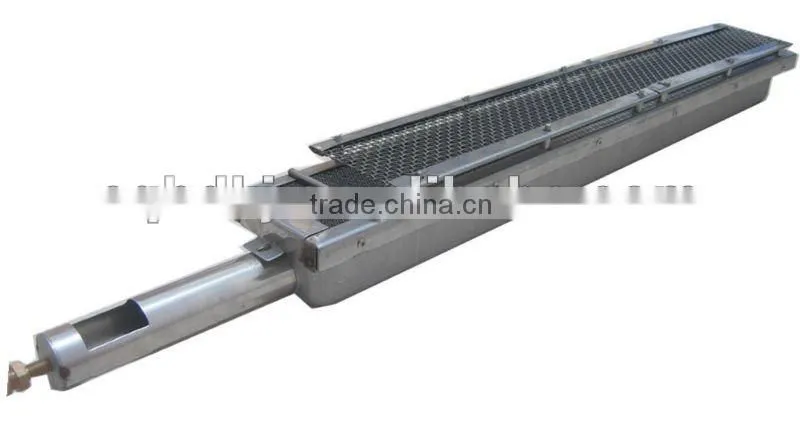

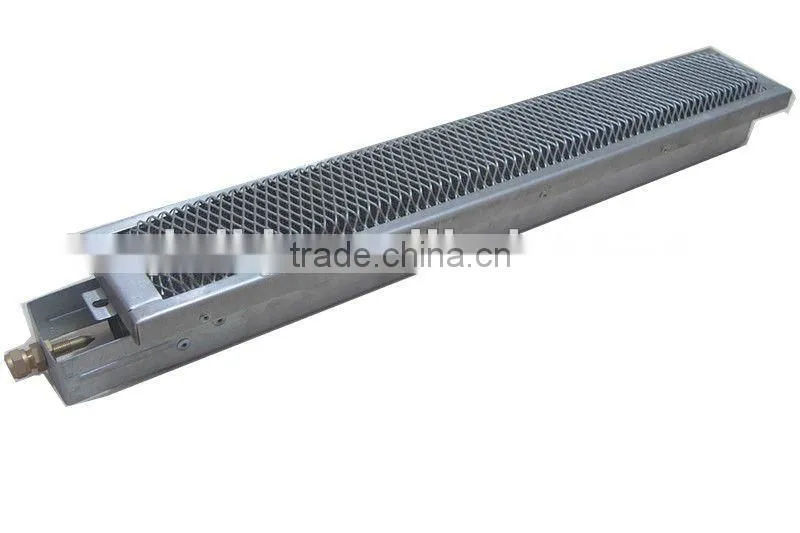

HD400 HD538
HD668 HD220
Application
This series is specially make for bbq, commercial grill,shawarma,kebab machine, chicken grill machine, poultry roaster and so on,which will not keep burner working above 4hours one time.

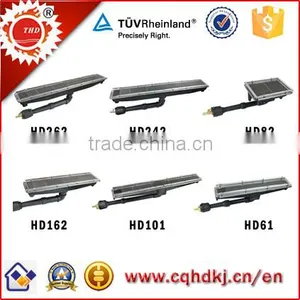

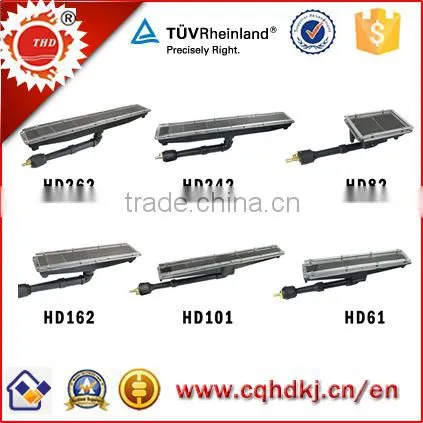

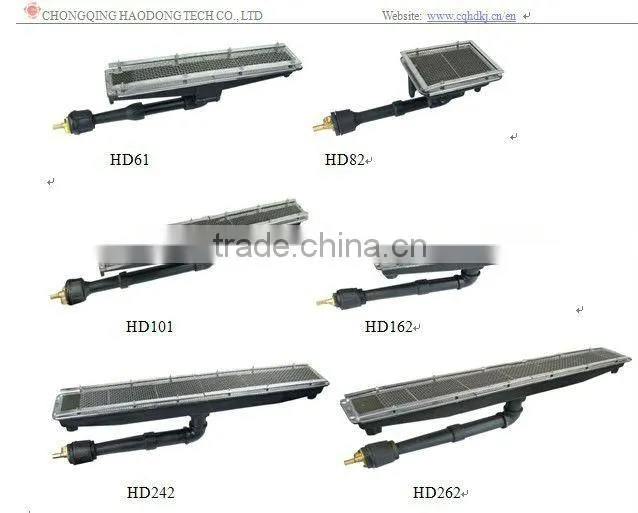

2.Industrial series infrared gas burners
MODEL |
Dimension |
Weight |
GasType |
Heat Output |
Consumption |
||
mm |
kg |
KW/h |
Kcal/hr |
NG(m3/h) |
LPG(kg/h) |
||
HD61 |
423*80*94 |
3.8 |
NG/LPG |
2.4 |
2030 |
0.18 |
0.18 |

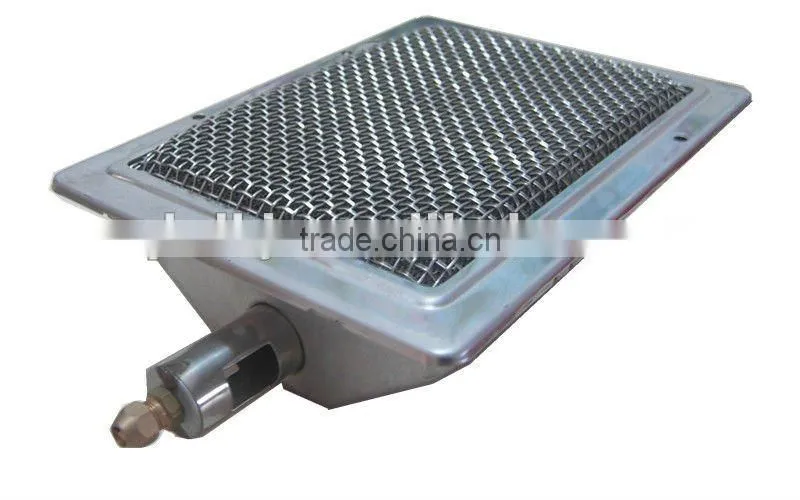

HD82 |
219*164*108 |
4.8 |
NG/LPG |
3.1 |
2700 |
0.24 |
0.24 |
HD101 |
690*80*115 |
6.9 |
NG/LPG |
3.9 |
3380 |
0.3 |
0.29 |

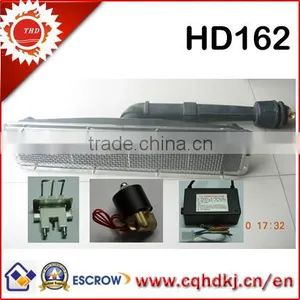

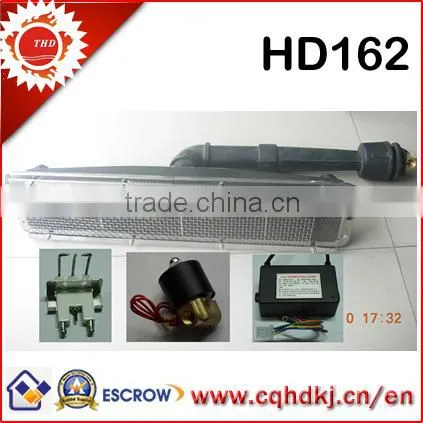

HD162 |
570*130*175 |
8 |
NG/LPG |
6.3 |
5400 |
0.49 |
0.47 |
HD242 |
840*130*175 |
11.7 |
NG/LPG |
9.4 |
8120 |
0.75 |
0.71 |
HD262 |
930*130*175 |
13 |
NG/LPG |
10.9 |
9360 |
0.8 |
0.82 |
Material:
1. Shell: Cast Iron
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron
Advantages:
1.Energy saving:Save above 30% energy than electric
2.High efficient: preheating up time can be reduced to under 30min
3.Eco-friendly:CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4.Naturally aspirated burner,no need of accessories equipment,like air blower,fire chamber...

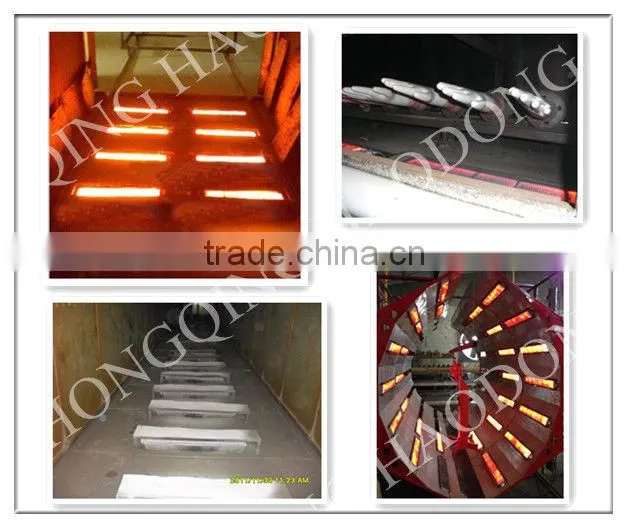

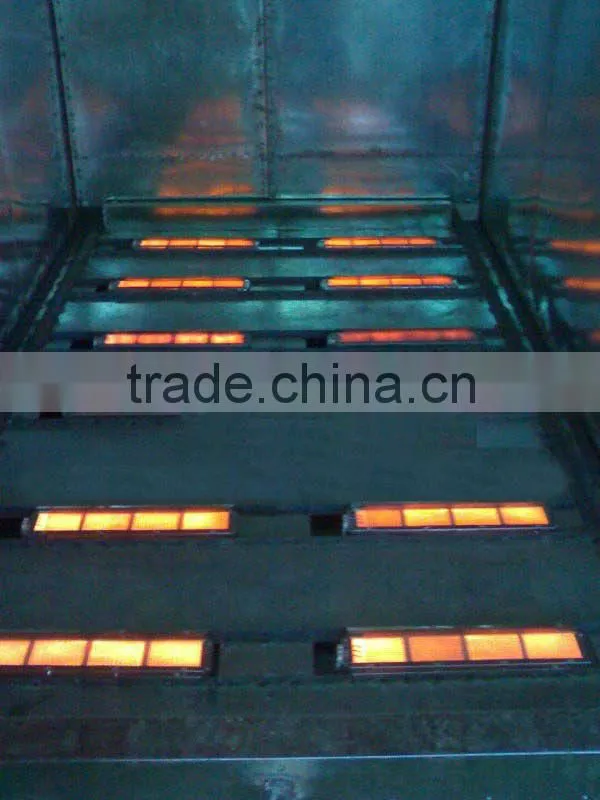

Applied Range:
1. Coating Industry: forging heat coating, liquid, powder coating, pre-heating the water to deal with dry acid.
2. The food industry: drying for processed food such as cookies, egg rolls, snow rice cakes, shredded squid, fish sauce, ham etc;tea processing and baking.
3. Agriculture and animal husbandry: keeping warm for a variety of birds, the livestock shed;grain drying.
4. Food and beverage industry: all kinds of barbecue, fruit and vegetable dehydration.
5. Drying operation in printing and dyeing, paper, wood, carpet and other industries
6. Bake ceramic mold industry, the Health and embryos, the surface drying of glazed ceramic tiles.
7. Heating ,warming and insulation for commercial buildings and workshop

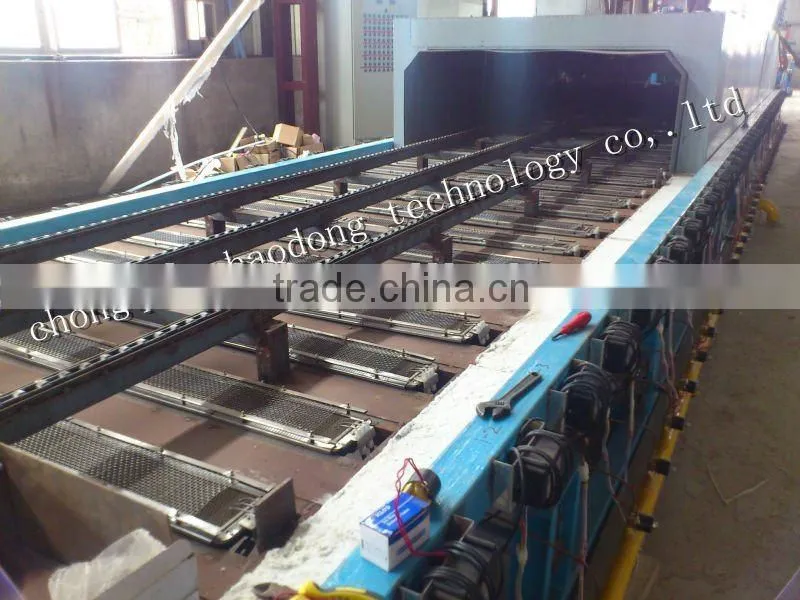

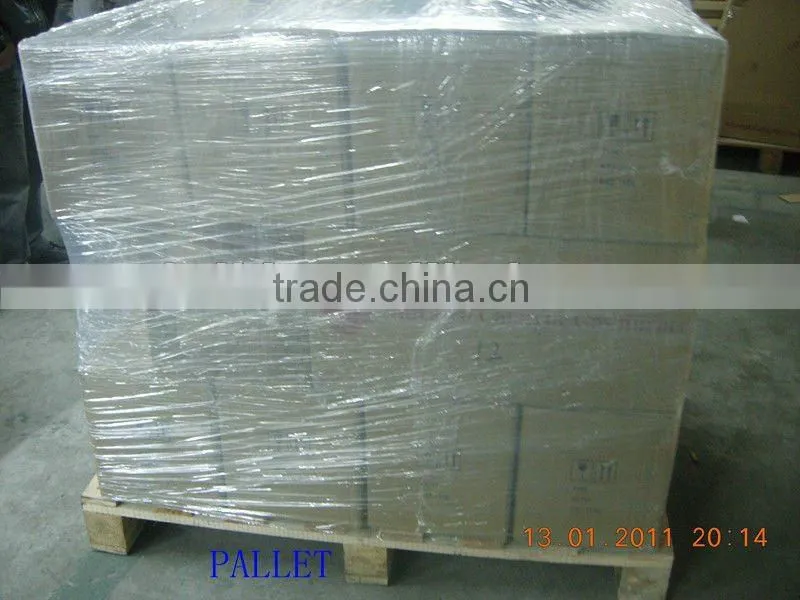

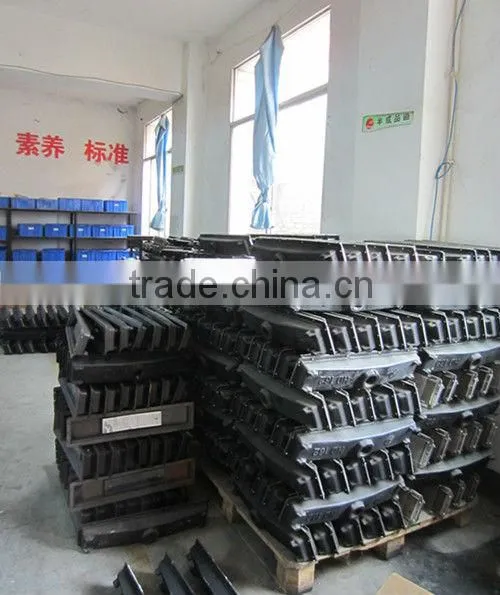

Factory & Packing Photos:
contact information: Trade manager:cn1500440252 Whatsapp:+86 13883514635 If any need, welcome to contact us freely!!
We'll do our best to serve for you!!
Your satisfaction is our passion!!!
