Summary of gas heating accessories : This infrared burner uses rare-earth as catalyst, which is with relatively low cost, higher activity than noble metal. The burning occurs on the covering catalyst and radiate infrared ray, energy transfer can reach 95%.And can save10%-20% energy than other non-catalytic infrared ceramic plate.
Advantage of gas heating accessories : 1. No flame catalytic combustion.
2. heat mainly infrared radiation.
3. guarantee the gas burning fire and burn holes never carbon.
4. Low emission of poisonous and harmful material

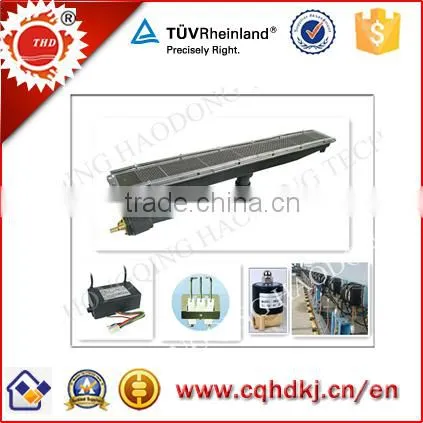

infrared industrial convenient catalytic gas heating accessories HD262
Model |
Length (mm) |
Width (mm) |
Height (mm) |
Weight (kg) |
Consumption |
Heat Output |
Inlet Port (Inch) |
|||
NG |
LPG |
|||||||||
m3/h |
kg/h |
KW/h |
Kcal/h |
BTU/h |
||||||
HD262 |
930 |
130 |
175 |
15 |
0.8 |
0.74 |
10.9 |
9360 |
41972 |
3/8 |

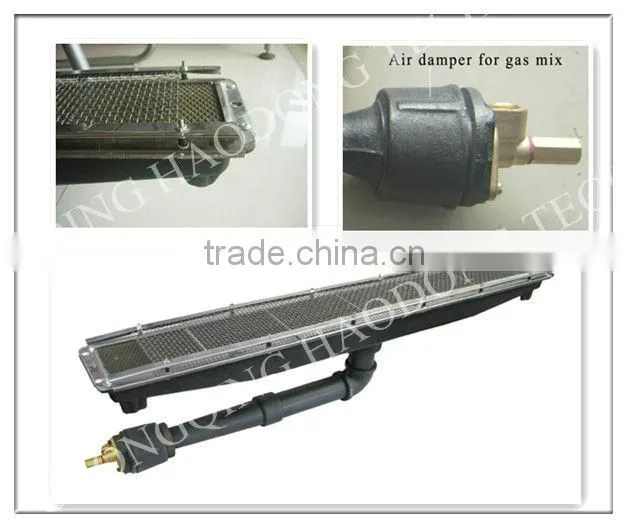

Material of gas heating accessories : Shell:gray cast iron
Upper cover:stamped stainless iron
Burning net:Fe-Cr-Al material
Nozzle:brass
Core components:cordierite honeycomb burner plates with rare-earth catalyst-coated
Technical parameters:
|
Items
|
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
Light-off temperature |
≥350 |
complete combustion temperature |
≤380 |
|
Heat source temperature
|
around 850 |
Baking temperature range |
30---850 |
Wavelength range |
1.9m--15m |
|
Furnance pressure natural |
Gas 150mmAq;liquefied petroleum gas 280mmAq
|
Advantages of gas heating accessories :
1. Energy saving: conversion rate:≥90%
2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3. Whole combustion: 95% of energy released in the form of infrared ray ;heating the objects directly
4. Long life:≥11000hr
5. Easily installed
6. Flameless & smokeless

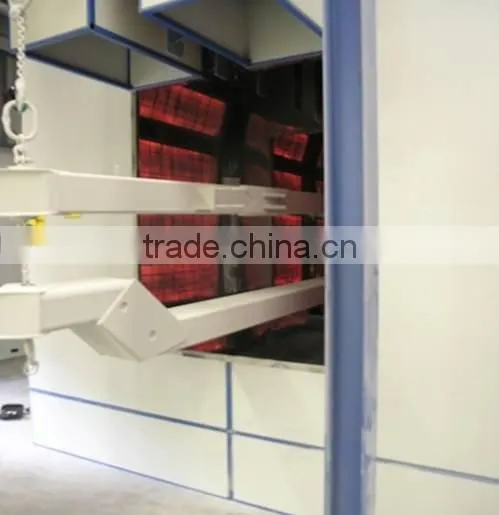

Application of gas heating accessories 1. Coating Industry: forging heat coating, liquid, powder coating, pre-heating the water to deal with dry acid.
2. The food industry: drying for processed food such as cookies, egg rolls, snow rice cakes, shredded squid, fish sauce, ham etc;tea processing and baking.
3. Agriculture and animal husbandry: keeping warm for a variety of birds, the livestock shed;grain drying.
4. Food and beverage industry: all kinds of barbecue, fruit and vegetable dehydration.
5. Drying operation in printing and dyeing, paper, wood, carpet and other industries
6. Bake ceramic mold industry, the Health and embryos, the surface drying of glazed ceramic tiles.

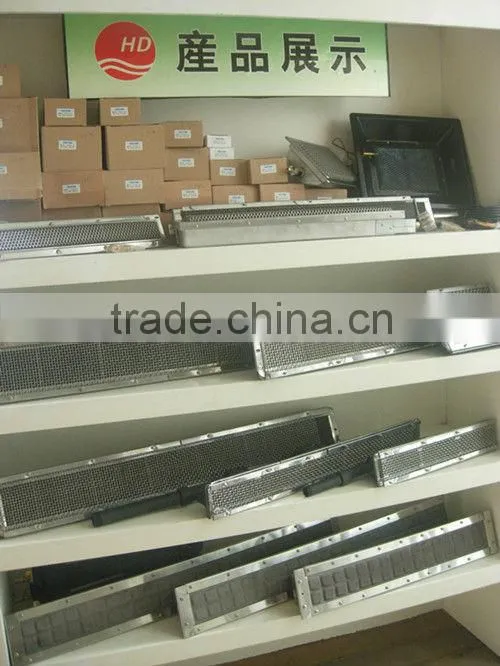

Factory & Packing Photos:
