About us:

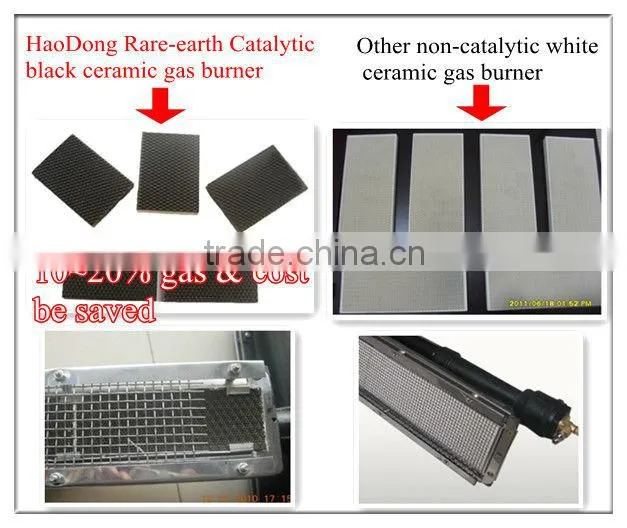

----Haodong Technology is the first and only manufacture in China who apply rare-earth catalytic combustion technology in infrared burner&heater. It can save 10%-20% energy than non-catalytic type.At the same time, it prolongs the use life of ceramic plate
it is usual used for industrial ovens ,industrial stoves and other heating parts
Product introduction :

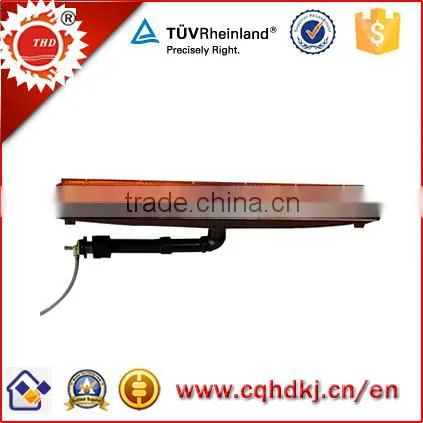

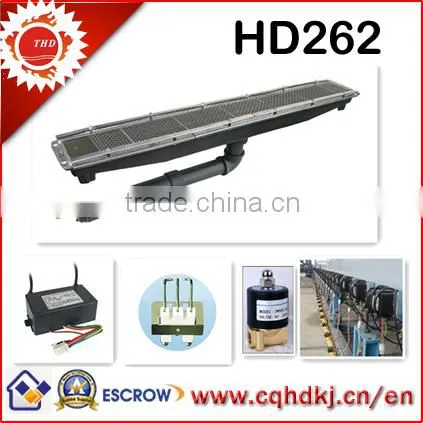

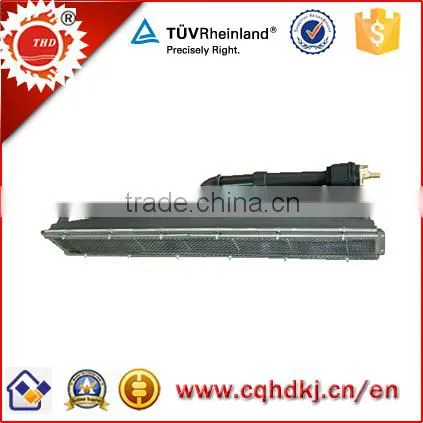

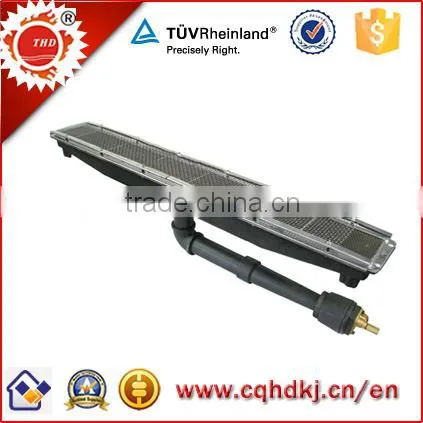

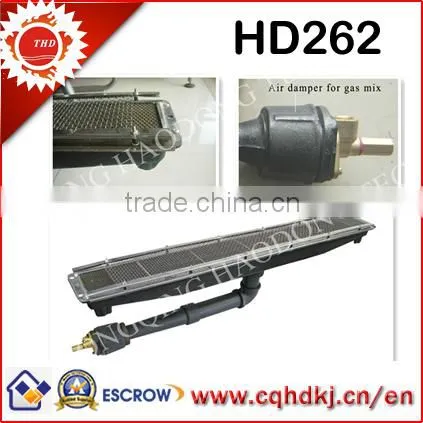

Gas Ceramic burner for industrial stoves and ovens part(HD262)

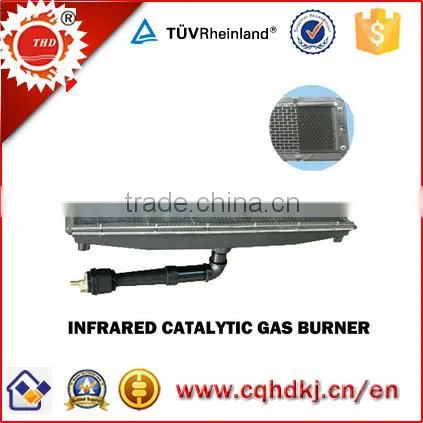

*industrial ceramic series infrared catalytic gas burner
Specification
| MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
| HD61 | 423*80*94 | 3.8 | NG/LPG | 2.4 | 2030 | 0.18 | 0.18 |
| HD82 | 219*164*108 | 4.8 | NG/LPG | 3.1 | 2700 | 0.24 | 0.24 |
| HD101 | 690*80*115 | 6.9 | NG/LPG | 3.9 | 3380 | 0.3 | 0.29 |
| HD162 | 570*130*175 | 8 | NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD242 | 840*130*175 | 11.7 | NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
| HD262 | 930*130*175 | 13 | NG/LPG | 10.9 | 9360 | 0.8 | 0.82 |
Material :
Shell:gray cast iron
Upper cover:stamped stainless iron
Burning net:Fe-Cr-Al material
Nozzle:brass
Core components:cordierite honeycomb burner plates with rare-earth catalyst-coated
Technical parameters:
|
Items
|
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
Light-off temperature |
≥350 |
complete combustion temperature |
≤380 |
|
Heat source temperature
|
around 850 |
Baking temperature range |
30---850 |
Wavelength range |
1.9m--15m |
|
Furnance pressure natural |
Gas 150mmAq;liquefied petroleum gas 280mmAq
|
Advantages:
1. Energy saving: conversion rate:≥90%
2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3. Whole combustion: 95% of energy released in the form of infrared ray;heating the objects directly
4. Long life:≥11000hr
5. Easily installed
6. Flameless & smokeless

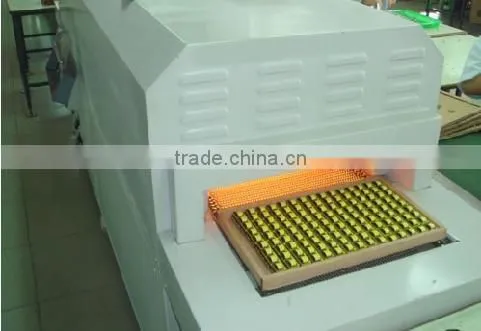

Application
1. Heating Industry: surface heat treatment,forging heat coating, liquid, powder coating, pre-heating the water to deal with dry acid.
2. The food industry: bakery oven, pizza oven, biscuit, drying for processed food such as cookies, egg rolls, snow rice cakes, shredded squid, fish sauce, ham etc;tea processing and baking.
3. Agriculture and animal husbandry: keeping warm for a variety of birds, the livestock shed;grain drying.
4. Drying operation in printing and dyeing, paper, wood, carpet and other industries
5. Bake ceramic mold industry, the Health and embryos, the surface drying of glazed ceramic tiles.
6. Heating ,warming and insulation for commercial buildings and workshop

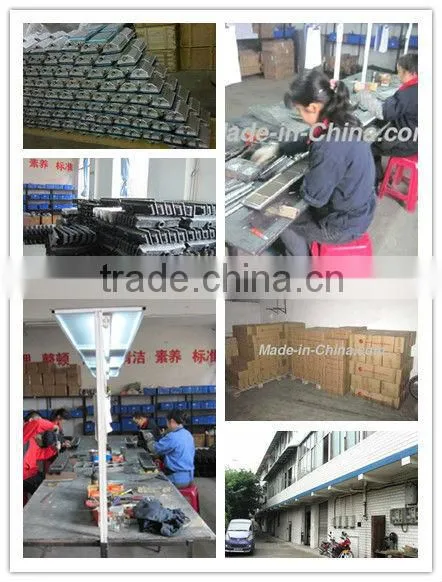

Factory & Packing Photoes:
If any need, welcome to contact us freely!!
We'll do our best to serve for you!!
Trade manager:cn1500440252
Whatsapp:+ 86 13883514635
