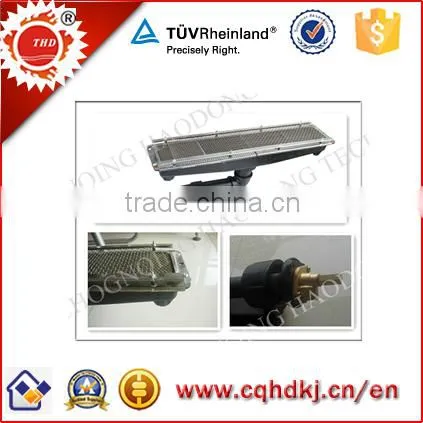

Help CenterInfrared Industrial Oven Gas Burner(HD162)
Related Products
-
Infrared Industrial Convenient Catalytic Gas Heating Accessories HD262US$ 30 - 120MOQ: 10 Pieces -
Gas Ceramic Burner for Industrial Stoves and Ovens Part(HD262)US$ 50 - 88MOQ: 100 Pieces
-
Industrial Infrared Ceramic Lpg /natural Gas Burner Used for Industrial Furnace HD101)US$ 30 - 100MOQ: 50 Pieces
-
Spray Booth Heating System Gas Infrared Heater HD262US$ 30 - 120MOQ: 10 Pieces
-
Infrared Electrostatic Powder Coating Oven Burner HD242US$ 30 - 120MOQ: 10 Pieces
company profiles :
Established in 2005 ,Chongqing Haodong Technology co.,Ltd is a mannufacturer specialiaed in the research, development and production of infrared catalytic burner.
The inrared burner is based on catalytic combustion patent technique which is advanced in the field and which is developed by Sichuan Chemical Works Ltd. Now thy have been successfully applied in coating,foods drying and baking ,drying process, heating at low and middle temperatures, warming , heat preservaton and so on .
https://img13.fr-trading.com/company_profile/capability_assessment.html

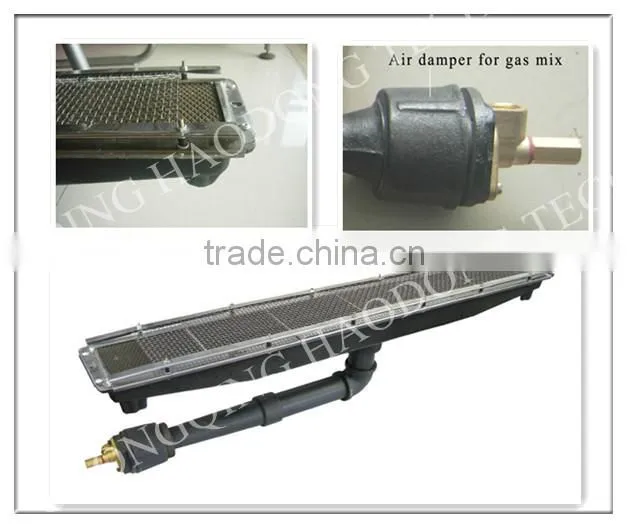

Infrared Industrial oven gas burner HD162
Model |
Length (mm) |
Width (mm) |
Hight(mm) |
Weight (kg) |
Consumption |
Heat Output |
Inlet Port (Inch) |
||
NG |
LPG |
||||||||
m3/h |
kg/h |
KW/h |
Kcal/h |
3/8 |
|||||
HD162 |
570 |
130 |
175 |
8.0 |
0.49 |
0.45 |
6.3 |
5400 |
|
Material Descriptions:
Shell: gray cast iron
Upper cover : stamped stainless iron
Burning net: Fe-Cr-Al material
Nozzle: brass
Core components: cordierite honeycomb burner plates with rare-earth catalyst-coated
Advantages:
Energy saving:conversion rate:≥90%
Environmental protection:CO≤80ppm;NOx≤10ppm;CHx≤50ppm
Taking full usage of heat:95% of energy released in the form of infrared ray ;heating the objects directly
Long life:≥11000hr
Easily installed
The user manual
Table 1:The use of technical parameters
|
Items
|
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
Light-off temperature |
≤350 |
complete combustion temperature |
≤380 |
|
Heat source temperature
|
around 850 |
Baking temperature range |
30---850 |
Wavelength range |
1.9m--15m |
|
Furnance pressure natural |
gas 150mmAq;liquefied petroleum gas 280mmAq
|
Main purposes:
1. Coating Industry: forging heat coating, liquid, powder coating, pre-heating the water to deal with dry acid.
2. The food industry: drying for processed food such as cookies, egg rolls, snow rice cakes, shredded squid, fish sauce, ham etc;tea processing and baking.
3. Agriculture and animal husbandry: keeping warm for a variety of birds, the livestock shed;grain drying.
4. Food and beverage industry: all kinds of barbecue, fruit and vegetable dehydration.
5. Drying operation in printing and dyeing, paper, wood, carpet and other industries
Factory & Packing Photos:
Contact information: Name:Meggie Chan Trade manager:cn1500440252 Whatsapp:+ 86 13883514635
If any need, welcome to contact us freely!!
We'll do our best to serve for you!!
Your satisfaction is our passion!!!
