Company profiles :

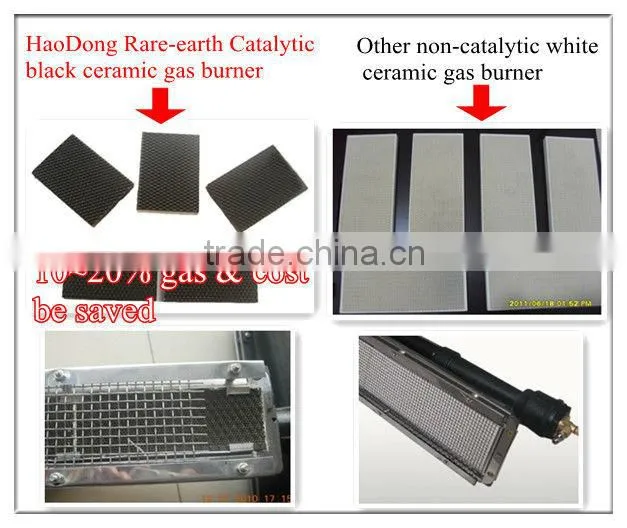

----Now Haodong Technology is the first and only manufacture in China who apply rare-earth catalytic combustion technology in infrared burner&heater. It can save 10%-20% energy than non-catalytic type.At the same time, it prolongs the use life of ceramic plate.

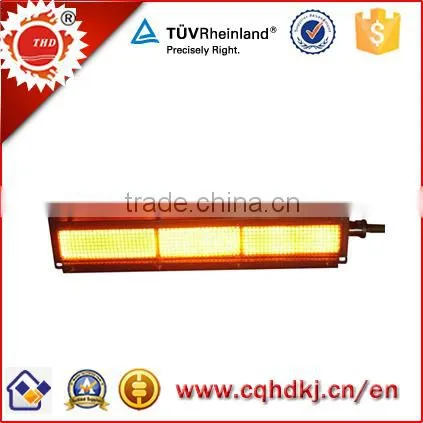

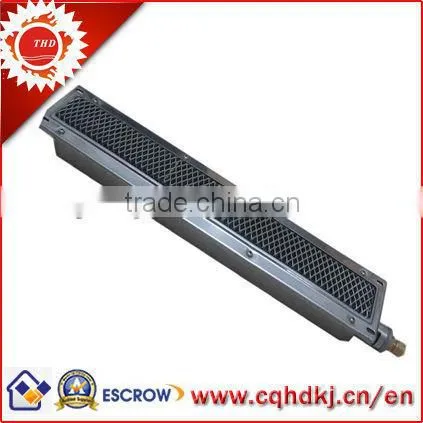

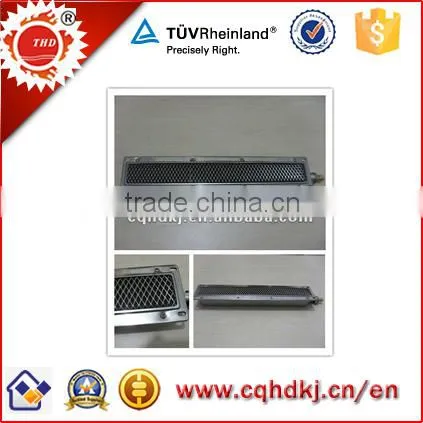

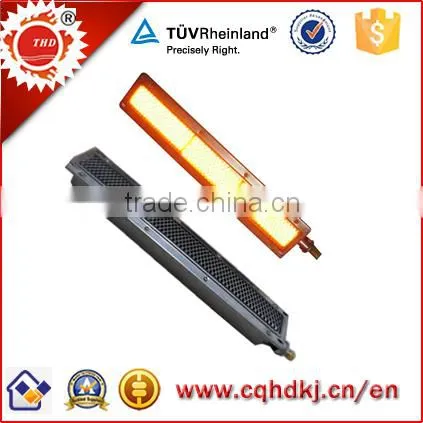

infrared honeycomb ceramic plate gas burner for BBQ grill (HD400)
- Einfrared ceramic plate gas burner parts for BBQ (HD400) nergy saving: conversion rate≥90%
- Environmental friendly: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
- Whole combustion: 95% of energy released in the form of infrared ray
- Flameless & Smokeless
- Long useful time: ≥11000hr
- Easily installed
- Can use Natural Gas and Liquefid Petroleum gas
Main Purpose of Infrared Ceramic Burner:
- Barbeque, Food Baking process and so on. It can save 50% energy when using this kind of products;
- mainly installed on the innermost firewall of ovens;
- The combustion front is at right angle to a plane. So it is usually called back furnace;
- It is widely used in high-grade combined-type oven in North America and in snack car/teppanyaki/duck furnace in China.
*BARBRCUE series infrared catalyticc gas burner
Specification
MODEL |
Dimension |
Weight |
Gas Type |
Heat Output |
Power |
|
mm |
kg |
BTU/h |
Kcal/hr |
Kw |
||
HD220 |
220*170*60 |
0.9 |
NG/LPG |
10000 |
2520 | 2.94 |
HD400 |
400*80*60 |
0.7 |
NG/LPG |
9030 |
2300 |
2.72 |
HD538 |
538*85*65 |
1.4 |
NG/LPG |
13500 |
3400 |
3.9 |
HD668 |
668*85*65 |
1.7 |
NG/LPG |
166000 |
4180 |
4.8 |

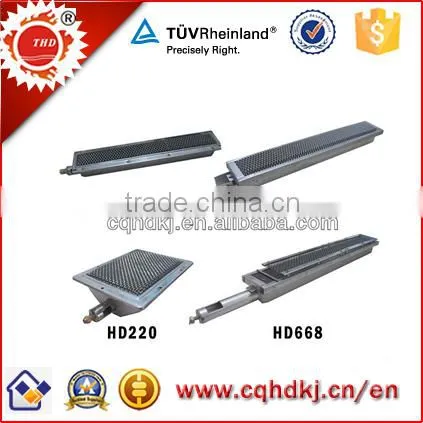

HD400 HD538
HD538 HD220
Usage of technical parameters
Table 1:The use of technical parameters
Items |
Technical parameters |
Types |
natural gas (NG),liquefied petroleum gas (LPG) |
Light-off temperature |
≥350 |
complete combustion temperature |
≤380 |
Heat source temperature |
around 850 |
Baking temperature range |
30---850 |
Wavelength range |
1.9μm--15μm |
|
Furnance pressure natural |
2000pa(NG)/2800pa(LPG) |
Table 2:Comparison table for all kinds of energy consumption
|
Furnace type Parameters |
Electronic |
Oil furnace |
Coal-fired furnace |
Infrared catalytic heaters |
|
Energy requirement
|
10,000Kcal |
10,000Kcal |
10,000Kcal |
10,000Kcal |
Temperature |
180 |
180 |
180 |
180 |
Energy consumption |
Electricity(15 kW/h)
|
Electricity (1Kw/h)+ diesel (2Kg) |
Coal (10Kg)
|
LPG(0.9Kg) |
Heating time |
20 minutes |
40 minutes |
90 minutes |
5-8 minutes |
The most advantage of our products compared to others:
