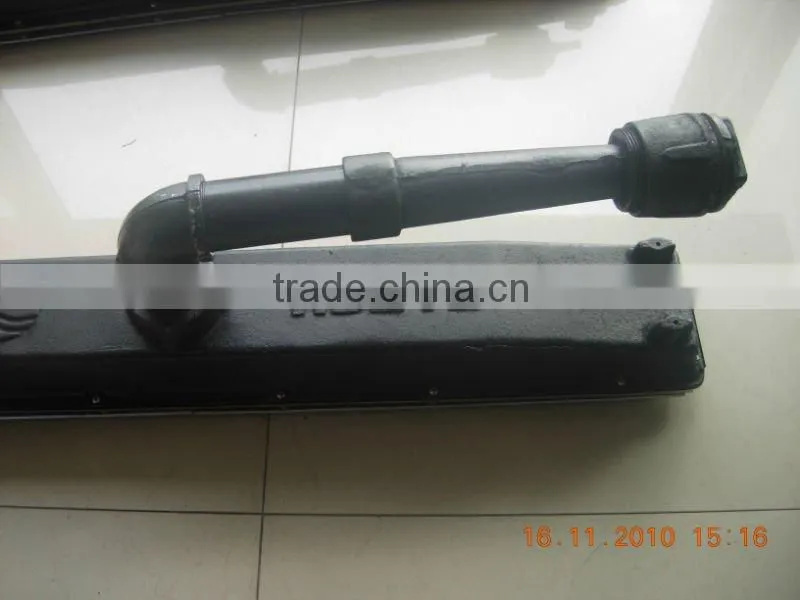

Ceramic plate Heater/ Infrared Gas burner heating equipment (HD242)
- 10000 Piece / Pieces per Month
- Chongqing China
- T/T Credit Card
- Heater Core Heater Welding Gun Heater Element
- Industrial Diesel Heater /Agricultural Vegetable Planting/Aquaculture Industry Heater
- Preheating equipment for hardbandig welding
- Heater Core Heater Welding Gun Heater Element
- DL-3 model electric air heater with upper outlet and lower inlet
- DL-2 model electric air heater with Left-Right Circulation
Product Details
Condition: | New | Type: | Infrared Heater | Power Source: | Natural Gas |
Place of Origin: | Chongqing, China | Brand Name: | Haodong | Model Number: | HD242 |
Dimension(L*W*H): | 840*130*175mm | Weight: | 11.9KG | Voltage: | 110/220VAC |
Power(W): | 9.4KW/h | Certification: | TUV | Warranty: | 1 year |
After-sales Service Provided: | No overseas service provided |
Product Description
About us:
Chongqing Haodong Technology Co,. LTD is the first and only company who apply rare-earth catalytic combustion technology on infrared burner & heater, this kind of technology could save 10~20% energy than non-catalytic infrared heater.
Product introduction :
Ceramic plate Heater/ Infrared Gas burner heating equipment (HD242)
*industrial ceramic series infrared catalytic gas burner
Specification
MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption | ||
mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
HD61 | 423*80*94 | 3.8 | NG/LPG | 2.4 | 2030 | 0.18 | 0.18 |
HD82 | 219*164*108 | 4.8 | NG/LPG | 3.1 | 2700 | 0.24 | 0.24 |
HD101 | 690*80*115 | 6.9 | NG/LPG | 3.9 | 3380 | 0.3 | 0.29 |
HD162 | 570*130*175 | 8 | NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
HD242 | 840*130*175 | 11.7 | NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
HD262 | 930*130*175 | 13 | NG/LPG | 10.9 | 9360 | 0.8 | 0.82 |
Material:
Shell:gray cast iron
Upper cover:stamped stainless iron
Burning net:Fe-Cr-Al material
Nozzle:brass
Core components:cordierite honeycomb burner plates with rare-earth catalyst-coated
Technical parameters:
Items
| Technical parameters |
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
Light-off temperature | ≥350 |
complete combustion temperature | ≤380 |
Heat source temperature
| around 850 |
Baking temperature range | 30---850 |
Wavelength range | 1.9m--15m |
Furnance pressure natural | Gas 150mmAq;liquefied petroleum gas 280mmAq
|
Advantages:
1. Energy saving: conversion rate:≥90%
2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3. Whole combustion: 95% of energy released in the form of infrared ray ;heating the objects directly
4. Long life:≥11000hr
5. Easily installed
6. Flameless & smokeless
Application
1. Coating Industry: forging heat coating, liquid, powder coating, pre-heating the water to deal with dry acid.
2. The food industry: drying for processed food such as cookies, egg rolls, snow rice cakes, shredded squid, fish sauce, ham etc;tea processing and baking.
3. Agriculture and animal husbandry: keeping warm for a variety of birds, the livestock shed;grain drying.
4. Food and beverage industry: all kinds of barbecue, fruit and vegetable dehydration.
5. Drying operation in printing and dyeing, paper, wood, carpet and other industries
6. Bake ceramic mold industry, the Health and embryos, the surface drying of glazed ceramic tiles.
7. Heating ,warming and insulation for commercial buildings and workshop
Factory & Packing Photoes:
