US$ 10 - 45 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
HaoDong
Model Number:
HD220
Contact Supplier Request Quote Chat Now
Chongqing Haodong Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name HaoDong
Model Number HD220
Grill Type Gas Grills
Gas Type LGP
Metal Type Stainless Steel
Finishing Not Coated
Feature Adjustable Height, Easily Assembled, Easily Cleaned, Electronic Pulse Ignition
Safety Device Flame Safety Device, High Pressure Protection Device, Oxygen Depletion Safety Device

About us

Infrared burner for bbq grill,stove,oven,meat HD220



Infrared burner for bbq grill,stove,oven,meat HD220Infrared burner for bbq grill,stove,oven,meat HD220



Supplier assessment certificate



 Infrared burner for bbq grill,stove,oven,meat HD220



Infrared burner for bbq grill,stove,oven HD220

Infrared burner for bbq grill,stove,oven,meat HD220

Model

Length

(mm)

Width

(mm)

Hight

(mm)

Weight (kg)

Consumption

Heat Output

NG

LPG

m3/h

kg/h

BTU/h

KW/h

HD220

220

170

60

0.9

0.29

0.22

10000

2.94

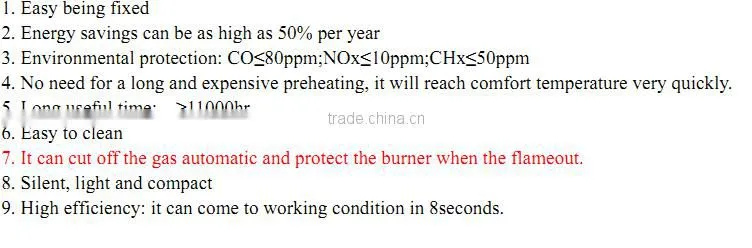

Advantages of Infrared burner for bbq grill :

Infrared burner for bbq grill,stove,oven,meat HD220

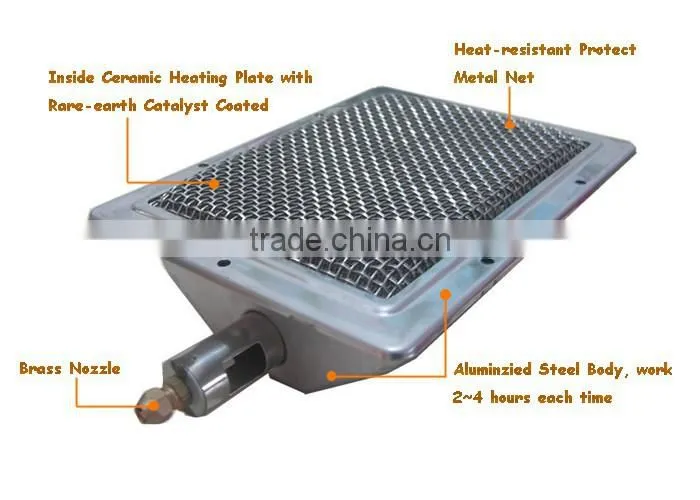

Detailed product description of  Infrared burner :

Type:           HD220

Gas type:        LPG or NG

Dimension:      220L*170W*60H (mm)

Weight:         0.9Kg/pc

Heat output:     10000BTU/hr or 2.94KW/hr

Gas consumption: 0.22Kg/hr for LPG at the pressure rating of 2.8Kpa

0.29m3/hr for NG at the pressure rating of 2.0Kpa

 Technical parameters

Items

Technical parameters

 Types

 natural gas (NG),liquefied petroleum gas (LPG)

Light-off temperature

≥350

complete combustion temperature

≤380

 Heat source temperature

around 850

Baking temperature range

30---850

Wavelength range

1.9m--15m

Furnance pressure

natural

gas 150mmAq;liquefied petroleum gas 280mmAq



Comparison table for all kinds of energy consumption

  Furnace type



Parameters

Electronic

cooker



Oil furnace

Coal-fired furnace



Infrared catalytic heaters

 Energy requirement

10,000Kcal

10,000Kcal

10,000Kcal

10,000Kcal

Temperature

180

180

180

180

Energy consumption

Electricity(15 kW/h)

Electricity (1Kw/h)+ diesel (2Kg)

Coal (10Kg)

LPG(0.9Kg)

Heating time

 20 minutes

40 minutes

90 minutes

5-8 minutes

Application of  Infrared burner

 This series is specially make for bbq, kebab machine, commercial grill, chicken roast, poultry roaster ,shawarma machine,gas cooker and so on.

Infrared burner for bbq grill,stove,oven,meat HD220

Factory & Packing Photos of Infrared burner :

Infrared burner for bbq grill,stove,oven,meat HD220Infrared burner for bbq grill,stove,oven,meat HD220

Infrared burner for bbq grill,stove,oven,meat HD220Infrared burner for bbq grill,stove,oven,meat HD220

Company honours

Infrared burner for bbq grill,stove,oven,meat HD220
