Home > Products > bbq grill burners > Gas Cooker/Gas Stove heating parts Infrared gas burner HD220 Most Popular
Gas Cooker/Gas Stove heating parts Infrared gas burner HD220 Most Popular
- 100000 Unit / Units per Month
- Chognqing China
- T/T Credit Card PayPal
- mail bag
- thickend explosion proof metal armored gas pipe stove pipe resisitant liquefide gas pipe hose
- stainless steel corrugated tubing gas pipegas delivery pipe suppliers
- Nordic white Customized silicone spatula stir-fry spatula non-stick wok stir-fry spoon spatula Household kitchen set
- HP550-S LED Digital electric small hotplate
- Gas four-headed stove with oven commercial hotel restaurant gas-fired oven price
Product Details
Type: | Other, Gas Cooktops, infrared bbq gas burner | No. of Gas Burner: | 2 | Installation: | Built-In |
Certification: | Other, TUV | Surface Material: | Aluminum | Place of Origin: | Chongqing, China |
Brand Name: | HD | Model Number: | HD220 |
Product Description
About us:
Supplier assessment certificate

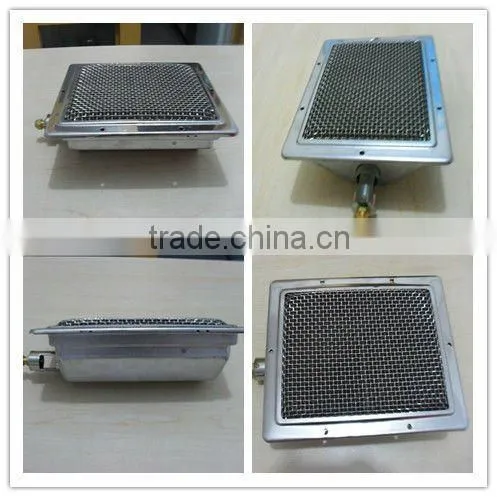

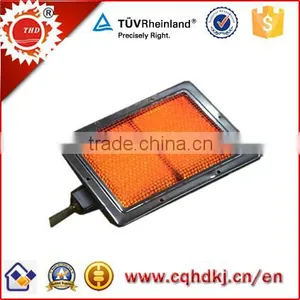

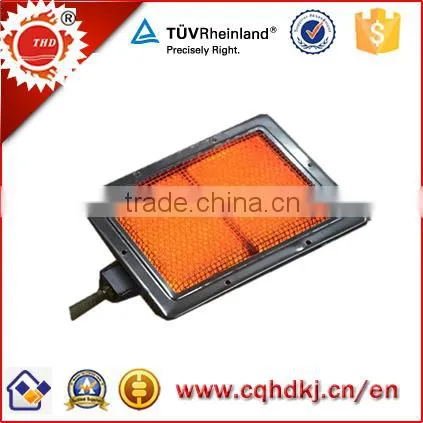

Gas Cooker/Gas Stove heating parts Infrared gas burner HD220

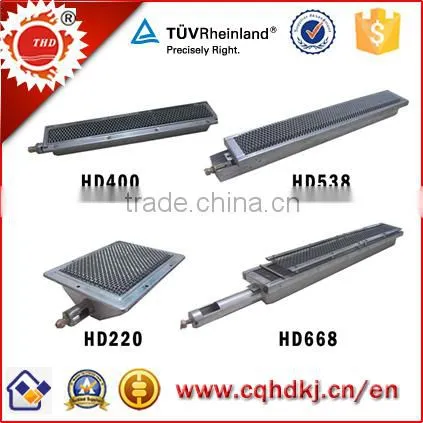

Other gas burner series
MODEL | Dimension | Weight | Gas Type | Heat Output | Power | |
mm | kg | BTU/h | Kcal/hr | Kw | ||
HD220 | 220*170*60 | 0.9 | NG/LPG | 10000 | 2520 | 2.94 |
HD400 | 400*80*60 | 0.7 | NG/LPG | 9030 | 2300 | 2.72 |
HD538 | 538*85*65 | 1.4 | NG/LPG | 13500 | 3400 | 3.9 |
HD668 | 668*85*65 | 1.7 | NG/LPG | 166000 | 4180 | 4.8 |
Material:
1. Shell: galvanized sheet
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron
Advantages
1.Environmental friendly: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
2.Whole combustion: 95% of energy released in the form of infraredray; heating the objects directly
3.Long useful time: ≥11000hr
4.Easily installed
5.Smokeless & flameless
6.Energy-saving: save above 30% than electric burner
Product summary:
- Infrared catalytic burner uses the porous cordierite honeycomb combustion plate with a special catalyst coated as a core component .
- Its catalytic combustion is the best combustion mode ,which means that gas (natural gas, liquefied petroleum gas) and combustion-supporting gas (air) are mixed according to the scientific proportion through burner shell (pre-mixed room) with the precise design and manufacturing .
- Ignited by the ignition, the gas mixture is burning on surface of catalyst which lies in the holes of porous cordierite honeycomb plate .
- The vast majority(95%) of the heat generated in the form of infrared radiation penetrate the object directly,put an end to energy loss caused by heating the air to heat the object, the mode of heat convection heating , greatly improve the energy conversion ability so as to further save the energy (save 60% of the operation costs under the same industrial conditions compared to the ordinary heating mode --electric heating ).
- Gas is almost under complete combustion as a result of catalytic combustio. the flue gas pollution is extremely low (CO <0.02%, NOx<10ppm) ,fully meeting the national environmental standards and there is no need for direct exhaust fan
The user manual:
Table 1:The use of technical parameters
Items | Technical parameters |
Types | natural gas (NG),liquefied petroleum gas (LPG) |
Light-off temperature | ≥350 |
complete combustion temperature | ≤380 |
Heat source temperature | around 850 |
Baking temperature range | 30---850 |
Wavelength range | 1.9m--15m |
Furnance pressure natural | gas 150mmAq;liquefied petroleum gas 280mmAq
|
Table 2:
Comparison table for all kinds of energy consumption
Furnace type
Parameters | Electronic cooker
| Oil furnace | Coal-fired furnace
| Infrared heaters | Infrared catalytic heaters |
Energy requirement | 10,000Kcal | 10,000Kcal | 10,000Kcal | 10,000Kcal | 10,000Kcal |
Temperature | 180 | 180 | 180 | 180 | 180 |
Energy consumption | Electricity(15 kW/h) | Electricity (1Kw/h)+ diesel (2Kg) | Coal (10Kg) | LPG (1Kg) | LPG(0.9Kg) |
Heating time | 20 minutes | 40 minutes | 90 minutes | 6-10 minutes | 5-8 minutes |
Application:

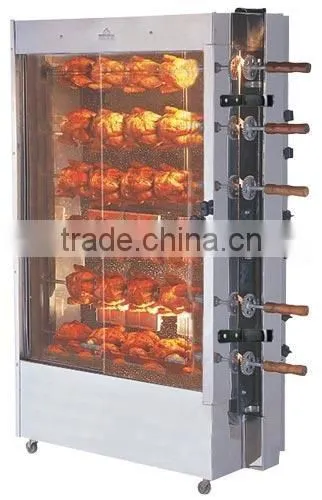

This kind burner now are widel used in shawarma/kebab/Gyros machine, bbq grill/stove/oven,gas cooker,chicken roaster/grill/oven,other cooking,catering or kitchen eqiupment...
