Hard cylinder ZSY gearbox
HUAYUN gearbox with CEMA & DIN standard, certificated by the TUV, ISO9001/2008 and Safety Certificate of Approval for Mining Products, exported to USA, Russia, Belgium, Australia, New Zealand, South Africa, and so on.
1. Working environment:
1. High-speed shaft speed is less than 1500 rev / min
2. The gear is not greater than the peripheral speed of 20 m / sec
3. The temperature is -40 ~ 45 ℃, if less than 0 ℃, before the start of oil should be preheated to above 0 ℃, this gear can be used for both directions running.

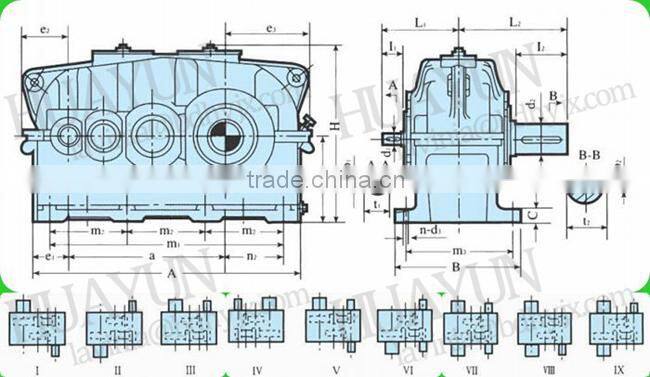

2. Dimension and the installation method for ZSY gearbox
3. Features:
1. The gear made of high strength carbon steel made by carburizing tooth surface hardness of HRC58-62, gears grinding process, high precision, good contact.
2. Transmission High efficiency: more than 96.5% unipolar, bipolar greater than 90%, three more than 90%.
3. smooth operation, low noise.
4. Easy dismantling, easy to install.
4. Steering:
Configuring backstop reducer allows only single operation, steering is defined as: the face of the output shaft, the output shaft clockwise operation is S, counterclockwise operation is N.
Description |
Hard cylinder ZSY gearbox |
Type |
ZDY ZLY ZSY ZFY |
Gear matrial |
High strength low carbon alloy steel |
Rotate of high speed shaft |
Not more than 1500 r/min |
Rotor peripheral speed |
Not more than 20 m/s |
Working condition |
-40 ~ 45 centigrade degree |
Hardness |
HRC58-62 |
Application |
Used in coal mine, steel industry, cement industry and so on |
5. Manufacturing equipment
6. Test equipment
7. Should you have any other questions about the ZSY gearbox please contact us via the following ways:
