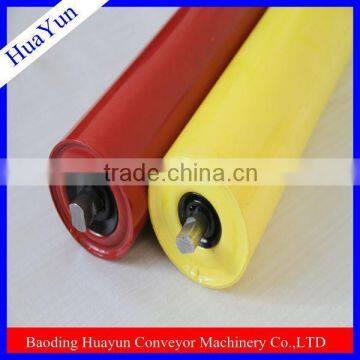

Lithium greasing rollers for modular belt conveyor

Name: Lithium greasing rollers for modular belt conveyor
Brand: HuaYun
Availability: InStock

FOB Price

USD $3 - $15 / Piece

50 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	HuaYun
Model Number	HY

Huayun Conveyor Machinery Co.,Ltd is a manufacturer/factory of conveyor rollers,

conveyor pulleys, roller conveyors and so on.

Lithium greasing rollers for modular belt conveyor

Feature:

1) Corrosion resistance

2) High hardness, strong wear resistance

3) Good sealing

4) Long life - more than 30,000 hours

5) Low operation costs

Pipe / tube	1) Material : carbon steel 2) Diameter : 50~219mm 3) Length : 150mm~3500mm 4) Thickness : 1.0~4.0mm
Type conveyor	DTII DTII(A) TD75
Shaft / axis	1) Material : A3 / 45# steel 2) Diameter : 20 25 30 35 40 mm
Bearing	1) Type : Deep groove ball bearing with C3/C4 2) Size : 6104 6204 6205 6305 6206 6306 6307 6308 3) Brand : C&U HRB LYC ZWZ NWH SKF NSK
Seals	1) Multiple labyrinth water proof dust proof 2) Type : general use nylon / double labyrinth / TR 3) Grease : Lithium grease lubricant
Welding	Automatic double end weld bearing housing
Painting	Electric static spraying painting / ordinary painting
Certificate	ISO9001:2008 MA ETC

Technical advantage of our transport roller :

Axial load: >10KN

Axial displacement: ≤1.2mm

Radial runout: ≤0.5mm

Rotation resistance: ≤3.5N

Water seal: ≤150g

Kindly contact us if any questions.

It is our pleasure to be on service of you!
