| 4 inch dia CEMA Industy conveyor roller equal length roll troughing conveyor idler |
| HUAYUN equal troughing conveyor idler with CEMA & DIN, certificated by the TUV, ISO9001/2008 and Safety Certificate of Approval for Mining Products, exported to USA, Russia, Belgium, Australia, New Zealand, South Africa, and so on. |
| 1. HUAYUN CEMA industry conveyor roller |
|
a. the steel conveyor roller shaft end is made in DTII or TD 75 type |
|
Feature of industry conveyor roller 1) strong construction 2) Better balance 3) Low T.I.R 4) Accurate bearing alignment 5) Maximum sealing efficiency 6) Low running resistance 7) Long service with more than 30,000 hours |
| 2. Details show for HUAYUN equal length roll troughing conveyor idler |
|
Craft advantage of Baoding Huayun steel conveyor roller is |

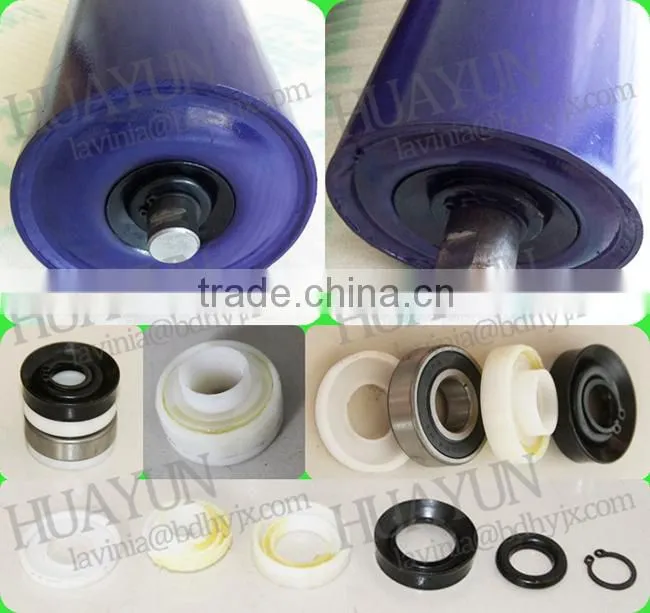

| Labyrinth sealing style of industry conveyor roller |
|
a. belt conveyor roller bearing type is ZZ, 2RS, 2RZ. |
Description |
blue steel CEMA industry conveyor roller equal length roll troughing conveyor idler |
Type |
Carrying troughing return flat transition parallel |
Pipe / tube |

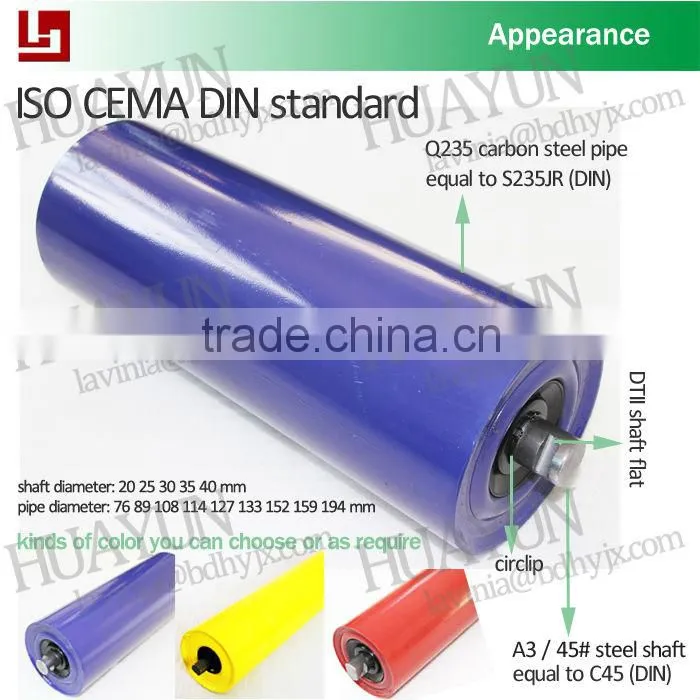

1) Material : Q235 carbon steel equal to DIN S235JR 2) Diameter : 4 inch 102mm 3) Length: 150mm ~ 600 mm 4) Thickness : 1.0 ~4.5 mm 5) With steel end cpas |
Type conveyor |
DTII DTII(A) TD75 |
Shaft / axis |
1) Material : A3 / 45# steel equal to DIN C45 2) Diameter: 20 25 mm 3) Shaft end type:DTII TD75 flat |
Bearing |
1) Type : Deep groove ball bearing with C3/C4 2) Size: 6204 6305 3) Brand: C&U HRB LYC ZWZ NWH SKF NSK FAG 4) Stamepd bearing and stamped bearing housing |
Seals |
1) Multiple labyrinth water proof dust proof 2) Type: DTII / TR made in nylon, methanal 3) Grease : Lithium grease lubricant |
Welding |
Automatic double end weld bearing housing |
Surface |
Electric static spraying painting |
Color |
Red, blue, yellow or as require |
Certificate |
ISO9001:2008 MA TUV CEMA DIN |
Application |
Used in coal mine, cement plant, power plant, port and so on |
Service life |
More than 30,000 hours |
| 3. Product process for HUAYUN equal length troughing idler |
|
the diameter of belt conveyor steel roller we can made is 51,60,76,89,108,114,127,133,140,152,159,194 mm |
| 4. Quality control for HUAYUN industry conveyor rollers |
| 1) steel roller test |
|
The steel roller test for axial, pipe, adhesive force, axial displacement, load capacity, radial run-out. |
| 2) ISO9001:2008 |
|
| 3) TUV qualified factory for troughing conveyor idler |
|
| 5. Kinds of belt conveyor idler rollers you can choose |
|
1) return conveyor idler roller - used for transporting whole pieces material & supporting returning belt
|
| 6. Package for HUAYUN belt conveyor idler rollers |
|
a. Packed in plastic package, wooden package or as require. b. Shipment within 7-15 working days according the quantity. MOQ: 50 pieces |
| 7. About us - Baoding Huayun Conveyor Machinery Co., Ltd. |
|
|
FAQ: 1. What is the business of your company?
The company Baoding Huayun is specializing in designing and manufacturing of conveyor roller, conveyor pulley, conveyor idler, conveyor idler bracket and conveyor. Our company has dedicated to the industry for 16 years.
2. What is the advantage of Huayun compared to other companies in the industry?
Since the R&D team and manufacturing team all possesses years of experience, Huayun can provide superior service to our customers across the globe. We offer the products at very competitive price.
3. What is the price policy of your company?
In our company, the price is different according to the quantity of your order, the more the cheaper. For more detailed information, you can contact our customer service representatives. The professional team will offer you 24/7 service.
4. What are the features of the services your company offered?
Based on the wide range of our products, Huanyun can offer first-class one-stop sourcing service. It will improve your efficiency significantly and be more economical. Since we generally ship products in large quantity, the cost of the freight can be lowered and this benefits our customers a lot.
5. What are the trade terms of your company?
Huayun accepts the payment of T/T and L/C, and the MOQ (Minimum Order Quantity) of conveyor rollers is 50 pieces. |
| Know more information about the troughing conveyor idler, pls contact us via the following ways: |
|
