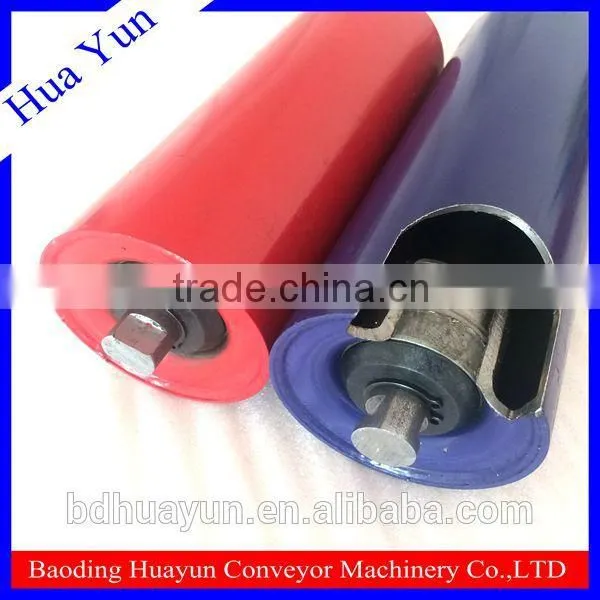

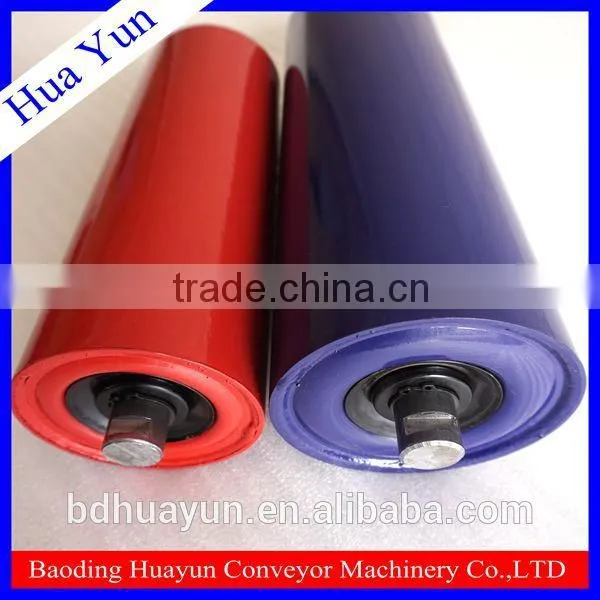

89mm diameter dust proof carrying idler steel conveyor belt idler roller of belt conveyor
HUAYUN steel conveyor belt idler rollers with CEMA & DIN standard, certificated by the ISO9001/2008 and Safety Certificate of Approval for Mining Products, exported to USA, Russia, Belgium, Australia, New Zealand, South Africa, and so on.
1. HUAYUN red steel conveyor belt idler rollers for mining equipment parts
Feature for dust proof carrying idler
1) strong construction
2) Better balance
3) Low T.I.R
4) Accurate bearing alignment
5) Maximum sealing efficiency
6) Low running resistance
7) Long service with more than 30,000 hours

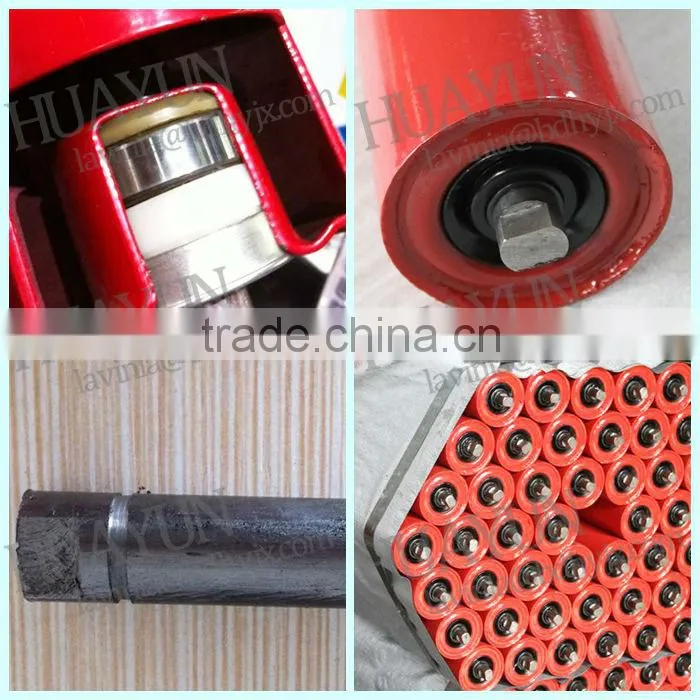

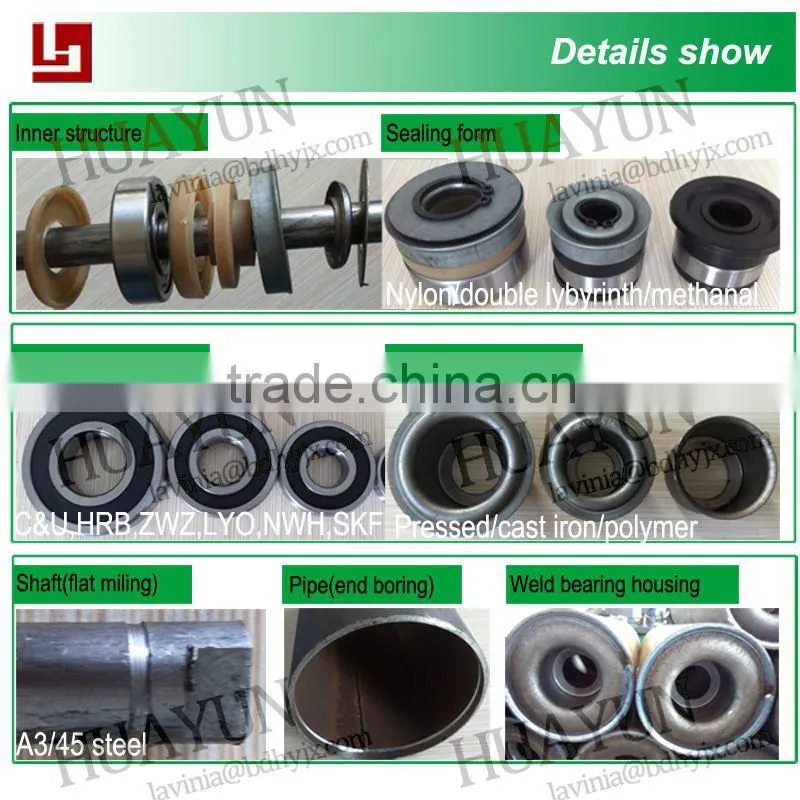

2. Details show for HUAYUN steel conveyor belt idler rollers
Craft advantage of Baoding Huayun conveyor idler roller is
a. automatic double end boring;
b. automatic double end flat milling;
c. automatic press bearing housing;
d. automatic double end bearing housing;
e. electric spray painting.

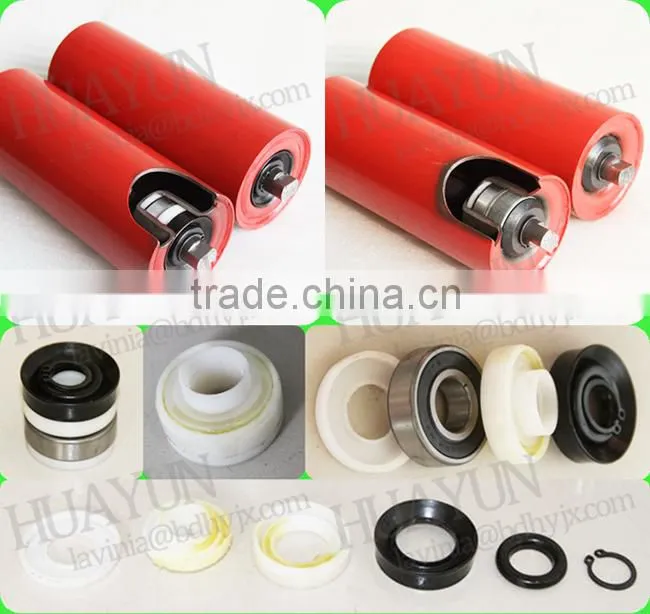

Dust proof and water proof multiple labyrinth seal
a. belt conveyor idler bearing type is ZZ, 2RS, 2RZ.
b. the seal of conveyor idler roller is DTII or TR/TK/TKII made by nylon or methanal
Description |
dust proof carrying idler steel conveyor belt idler roller of belt conveyor |
Pipe / tube |
1) Material : Q235 carbon steel equal to DIN S235JR 2) Diameter : 89 mm / 3.5 inch 3) Length: 150mm ~ 1600 mm 4) Thickness : 1.0 ~4.5 mm 5) With steel end cpas |
Type conveyor |
DTII DTII(A) TD75 |
Shaft / axis |
1) Material : A3 / 45# steel equal to DIN C45 2) Diameter: 20 25 mm 3) Shaft end type:DTII TD75 flat |
Bearing |
1) Type : Deep groove ball bearing with C3/C4 2) Size: 6204 6305 3) Brand: C&U HRB LYC ZWZ NWH SKF NSK FAG 4) Stamepd bearing and stamped bearing housing |
Seals |
1) Multiple labyrinth water proof dust proof 2) Type: DTII / TR made in nylon, methanal 3) Grease : Lithium grease lubricant |
Welding |
Automatic double end weld bearing housing |
Painting |
Electric static spraying painting |
Color |
Red blue yellow or as require |
Certificate |
ISO9001:2008 MA TUV |
Application |
Used in coal mine, power plant, port and so on |
Service life |
More than 30,000 hours |

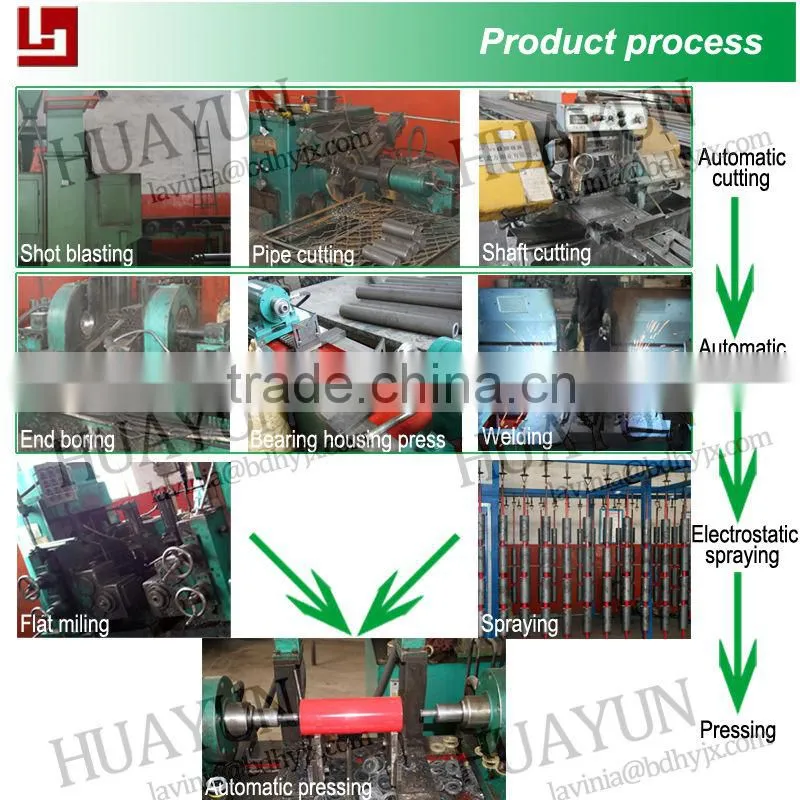

3. Product process for HUAYUN steel conveyor belt idler rollers
the diameter of belt conveyor idler roller we can manufacture is 51,60,76,89,102,108,114,127,133,140,152,159,194mm

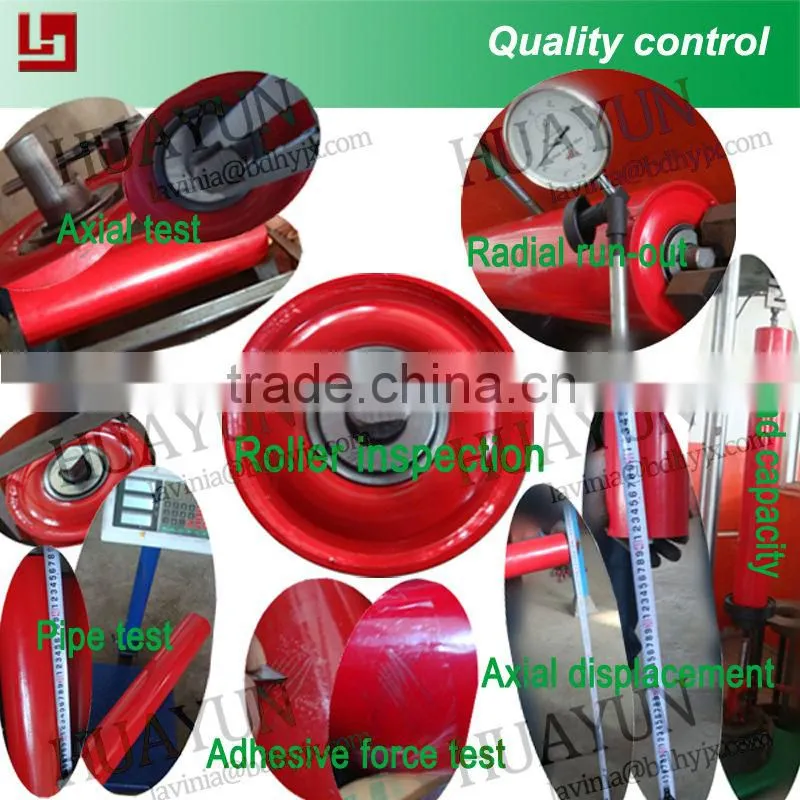

4. Quality control for HUAYUN steel conveyor belt idler rollers
1) idler rollers test
2) ISO9001:2008
3) TUV qualified factory for idler roller of belt conveyor

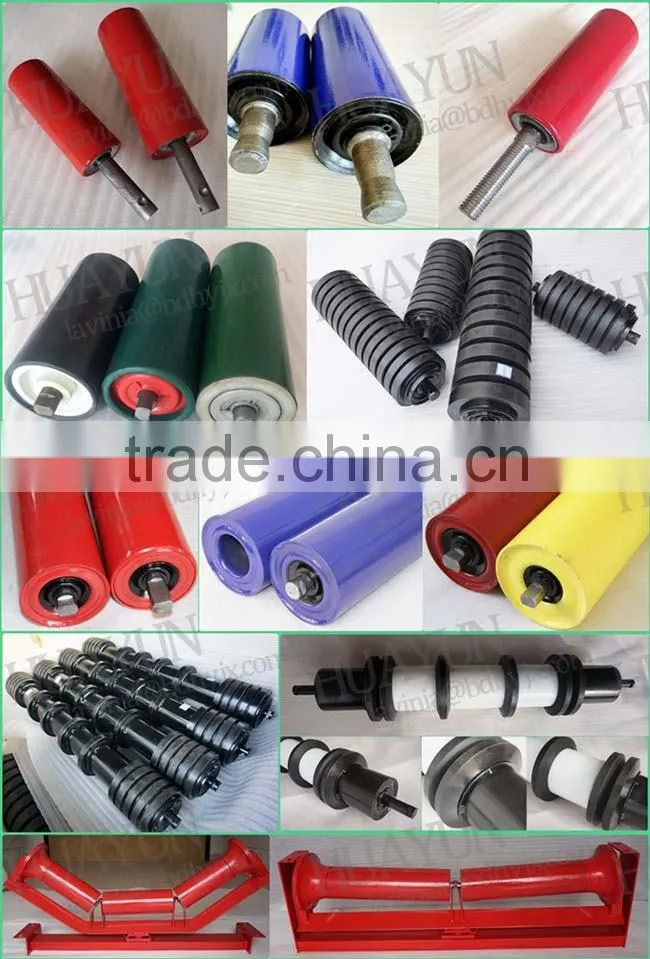

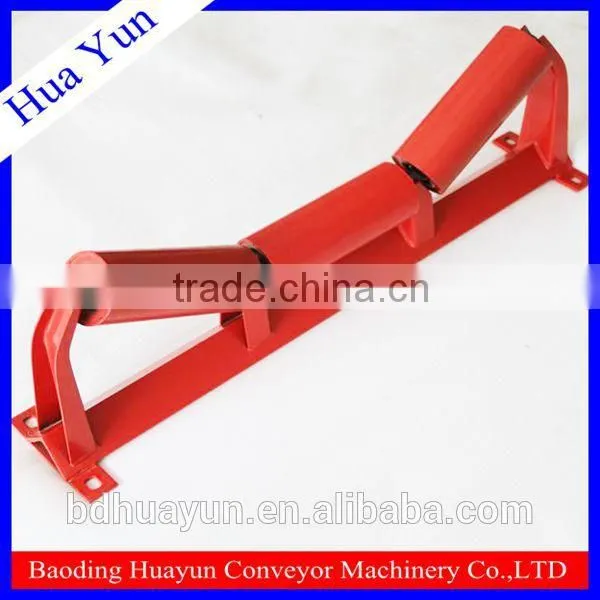

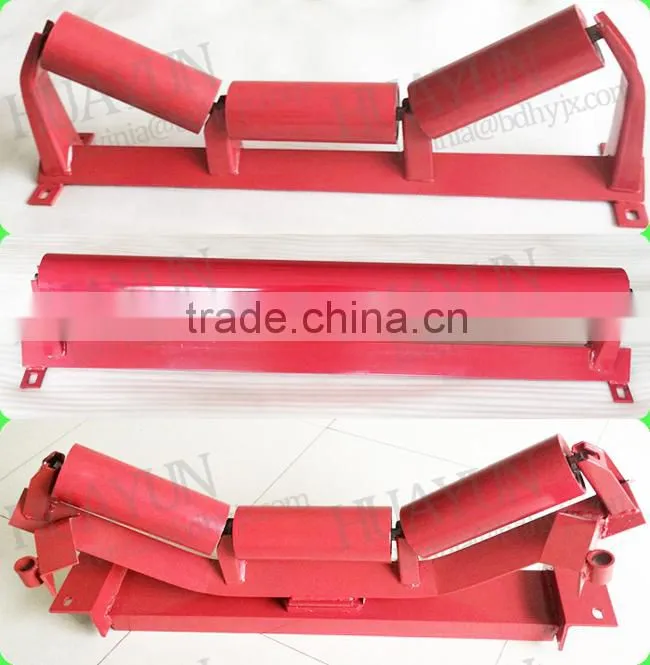

5. Kinds of HUAYUN conveyor belt idler rollers and conveyro frame you can choose
1) return conveyor idler roller - used for transporting whole pieces material & supporting returning belt
2) carrying conveyor idler roller - used for transporting bulk materials
3) impact/buffer/damper/shock absorber conveyor idler roller - reduce the impact of blanking on conveyor belt
4) guide/friction/tapered/crown face conveyor idler roller - adjust the conveyor belt deviation
5) rubber sprial conveyor idler roller - to prevent corrosion, sticky rollers, belt, tear
6) conveyor idler roller with rubber discs/steel sprial conveyor idler roller - clear conveyor belt
7) suspension conveyor idler roller - auto-adjusting, slow the impact of bulk materials, as well as to facilitate disassembly and assembly

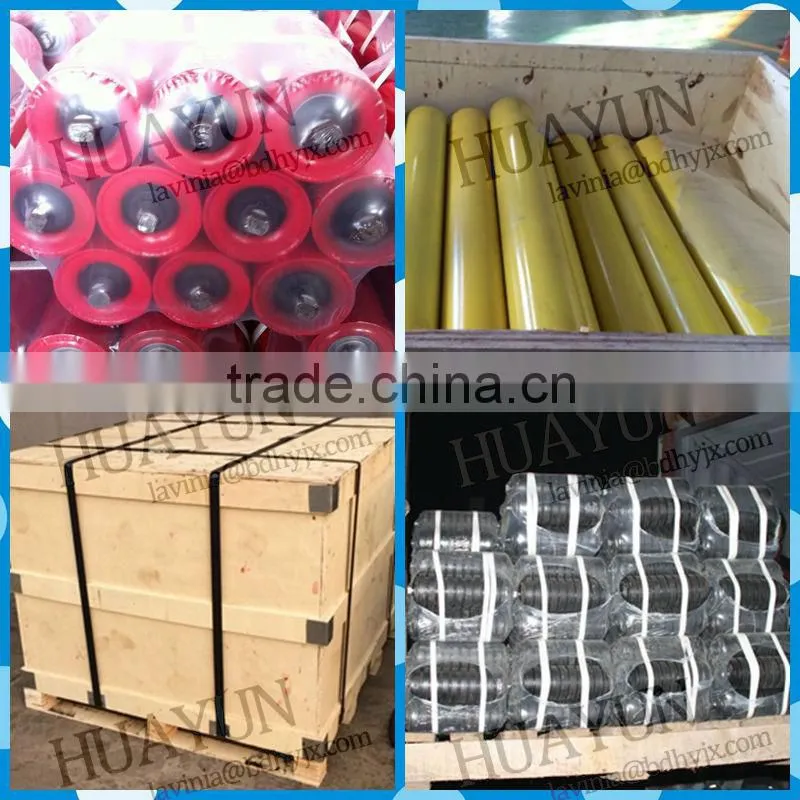

Packed in plastic package, wooden pakcage or as require.
Shipment within 7-15 working days according to the quantity.
MOQ: 50pieces
7. About us - Baoding Huayun Conveyor Machinery Co., Ltd.
five reasons to choose us:
1) manufacturer of belt conveyor idler rollers, conveyor pulleys, conveyor brackets;
2) with most advanced production equipment;
3) with exquisite craft with CEMA DIN standard;
4) with TUV, ISO9001:2008 and Safety of Approval for Mining Products;
5) with high quality material purchasing channel and excellent after-sale service.
Know more information about steel conveyor belt idler rollers, pls contact us via the following ways:
Send Inquiry to This Supplier
