HuaYun Solid Woven PVG Conveyor Belt for Heavy Load Conveyor Line

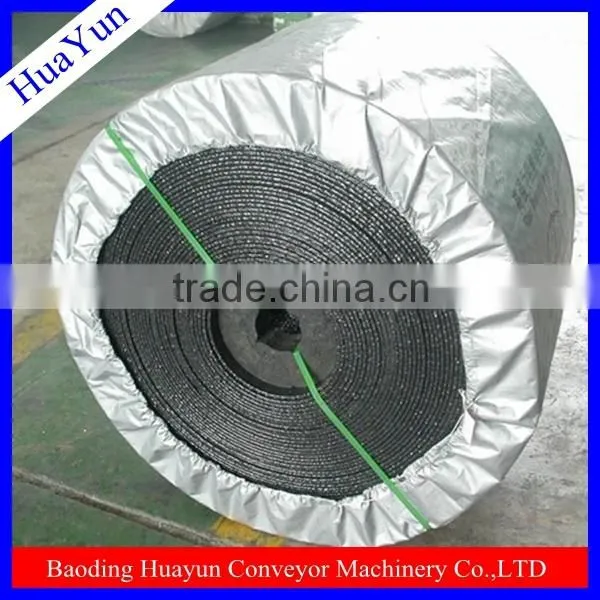

HuaYun Solid Woven PVG Conveyor Belt for Heavy Load Conveyor Line thumbnail-1
HuaYun Solid Woven PVG Conveyor Belt for Heavy Load Conveyor Line photo-1
US$ 3 - 50 MOQ: 50 Meters
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Belt Conveyor, Screw Conveyor and so on
Material:
Other, rubber and nylon
Contact Supplier Request Quote Chat Now
Baoding Huayun Conveyor Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin Xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Belt Conveyor, Screw Conveyor and so on
Material Other, rubber and nylon
Material Feature Fire Resistant
Structure Belt Conveyor
Load Capacity high
Place of Origin Hebei, China
Brand Name huayun
Model Number NN-200
Voltage 220V/380V
Power(W) 1.5KW
Dimension(L*W*H) 500-2400mm
Certification ISO

solid woven PVG conveyor belt



Product Description

1.performance of solid woven PVG conveyor belt

solid woven PVG conveyor belt is made from the whole belt core via dipping and plastifying

in polyvinyl chloride (PVC) dipping agent or sulfuration. It features largely in the high

strength, large freight volume and stable conveyance performance. Besides, it is fire

retardant, anti-static, shock resistant, wearable and corrosion resistant.



2.Usag of solid woven PVG conveyor belt

It is mainly applicable for the underground well haulage of coal mines, and also the conveyance

of materials for metallurgical and chemical industries. The whole core fire-retardant conveyer

belt is divided into 2 types.

 3.two types: PVC, PVG

PVC type conveyer belt's upper and lower layers are PVC coating cover, single-sided tape thickness: ≥1.0mm; PVG type belt's upper and lower layers are nitrile rubber and PVC,

single-sided tape thickness: 1.5mm-4.5mm.

PVC type conveyer belt's inclined angle: <16°;

PVG conveyer belt's inclined angle: <20°.

Type and technical parameter of PVC conveyor belt:



Standard MT914-2008

Safety factor 10

(Breaking strength

*1/10)

The Slope <16°C

Standard

 type

Degree

Breaking strength

≥,N/mm

Tensile yield

≥,%

Advising Mindiameter

of Transmission Drum

Longitudinal

Transverse

Longitudinal

Transverse



680S

4th

680

265

15

18

320

800S

5th

800

280

400

1000S

6th

1000

300

500

1250S

7th

1250

350

500

1400S

8th

1400

350

630

1600S

8th

1600

400

750



Type and technical parameter of solid woven PVG conveyor belt



Standard MT914-2008 BS3289 HG2805

Safety factor 10

(Breaking strength

*1/10)

Standard type

Degree

The slope <20°C



Breaking strength

≥,N/mm

Tensile yield

≥,%

Recommend

minimum

roller diameter

Longitudinal

Transverse

Longitudinal

Transverse

680S

4th

680

265

15

18

400

800S

5th

800

280

500

1000S

6th

1000

300

630

1250S

7th

1250

350

750

1400S

8th

1400

350

750

1600s

9th

1600

400

750



Safe function:



Function Name

The alcohol

combustion

The propane

combustion

Electrical

conductivity

The roller rub

Standard value

Average value≤3S,

List value≤10S

(Have no cover gum)

a)≥600

≤3X108Ω

≤325°C

Average value≤5S,

List value≤15S

(Have no cover gum)

b)≥50mm;≤140°C≤1250mm

Have no Mars





3.Fabric of solid woven PVG conveyor belt's produce process

HuaYun solid woven PVG conveyor belt for heavy load conveyor line



solid woven PVG conveyor belt Produce process

 HuaYun solid woven PVG conveyor belt for heavy load conveyor line

Our Services



1.Certificate of solid woven PVG conveyor belt

HuaYun solid woven PVG conveyor belt for heavy load conveyor lineHuaYun solid woven PVG conveyor belt for heavy load conveyor lineHuaYun solid woven PVG conveyor belt for heavy load conveyor line



2.Testing Equipments

HuaYun solid woven PVG conveyor belt for heavy load conveyor line







Company Information

 Factory Display

HuaYun solid woven PVG conveyor belt for heavy load conveyor line



Any more information, please feel free contact us!
