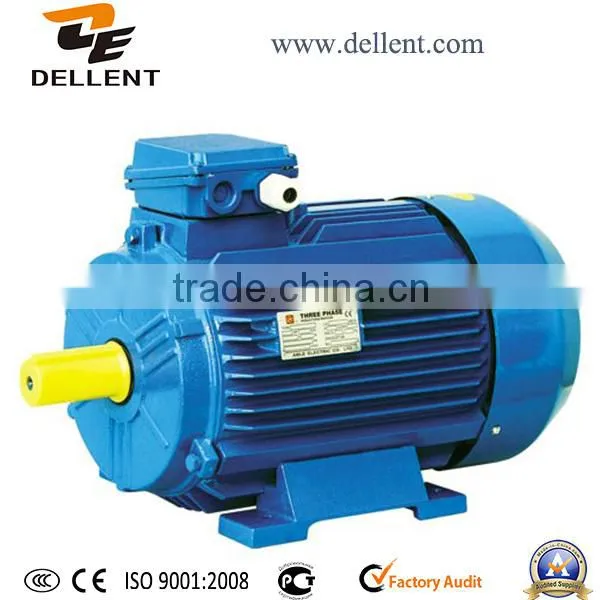

Y2 Series 0.18kW-55kW 3 Phase Motor / Three Phase Electric Motor With CE , CCC
US$ 10 - 300
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
DELLENT
Model Number:
Y2 series three phase electric motors
Type:
Asynchronous Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AEEF Series Three Phase Aluminum Housing High Efficiency Electric MotorUS$ 5 - 500MOQ: 50 Sets -
Y Series Cast Iron Housing Three-phase Induction Motor With CE , CCCUS$ 10 - 300MOQ: 50 Pieces
-
MS SeriesThree Phase Aluminum Housing High Efficiency Electric MotorUS$ 5 - 500MOQ: 50 Sets
-
Y2 Series Three Phase Cast Iron Housing High Efficiency Electric AC MotorUS$ 5 - 500MOQ: 50 Sets
-
YC Series Single Phase Electric ac Motor of Cast Iron Shell With CE , CCCUS$ 10 - 300MOQ: 50 Pieces
Brand Name
DELLENT
Model Number
Y2 series three phase electric motors
Type
Asynchronous Motor
Frequency
50HZ , 60HZ
Output Power
0.18 KW to 55KW
Protect Feature
Waterproof
Phase
Three-phase
Certification
CCC, CE, CCC, CE, Other, CCC, CE, CCC, CE , SGS, ISO
AC Voltage
Other, 230/380V , 380/660V
Place of Origin
Fujian, China
Efficiency
Other, IEC ,IE1 , IE2
Specifications
Y2 series 3 phase motor / Three Phase Electric Motor1, reliable performance
2, factory directly
3, CCC CE
Y2 series 0.18kW-55kW 3 phase motor / Three Phase Electric Motor With CE , CCC
Introduction and Application
| Feature | |
| Utilize IP55 enclosures,IP54 on request | |
| Multiple feet locations | |
| Cast Iron frame,end shields and base | |
| High strength cable gland | |
| Shaft key and protector supplied | |
| Superior paint finish | |
| Motors are made to heavy duty service factors | |
| Can be made with stainless steel shaft | |
| Motors made for continuous S1 duty | |
| Utilize Vacuum impregnated Class B insulation | |
| Class F insulation on request | |
| High performance and efficiency | |
| Contruction Materials | |
| Frame – Cast iron | |
| End shields- Cast iron | |
| Fan cowl- steel | |
| Fan-Plastic | |
| Shaft- Medium carbon steel(stainless available on request) | |
| Power Range | 0.18 ~ 55KW |
| Frame Size | 80 ~ 250M |
| Enclosure: | IP44,IP54, IP55 |
| Insulation | Class F,Class H |
| Voltage | 230/380V,380/660V |
| Frequency: | 50Hz/60Hz |
| Working duty | S1,S2,S3 |
| Speed: | 2 Pole , 4 Pole ,6 Pole & 8Pole |
| Note: | |
| The voltage and frequency could be made according to your request. | |

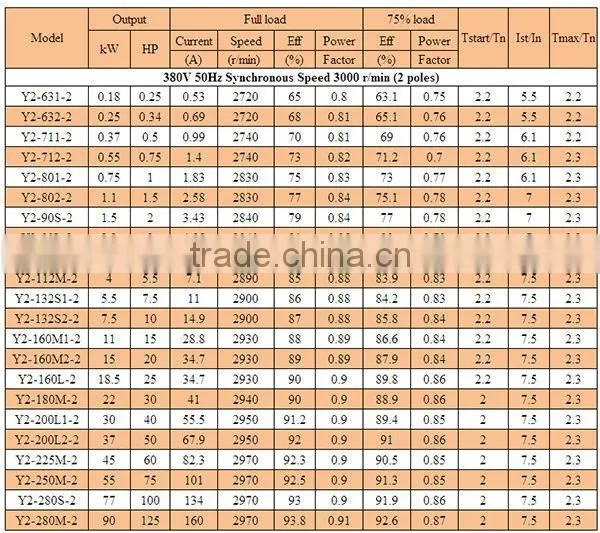

| Y2 three phase electric motors Technical Data | |
WHY CHOOSE US (OUR ADVANTAGE)
| WHAT WE DO AT DELLENT |
| • Having self-own plants producing for stators ,rotors and some related die-casting parts since from 1995 |
| • Stamping of lamination |
| • Rotor die-casting |
| • Winding and inserting – both manual and semi-automatically |
| • Vacuum varnishing |
| • Machining shaft, housing, end shields, etc… |
| • Rotor balancing |
| • Painting – both wet paint and powder coating |
| • Motor assembly |
| • Packing |
| • Inspecting spare parts every processing |
| • 100% test after each process and final test before packing. |
|
WHAT DELLENT CAN DO FOR CUSTOMERS |
| • Dellent supplies standard products to customers. |
| • Dellent supplies standard products under customers’ brands and packaging, etc |
| • Dellent develops any new products together with the customers. |
