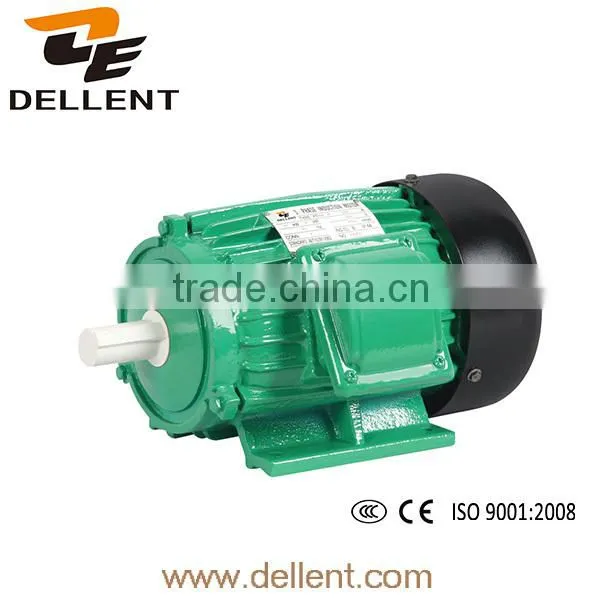

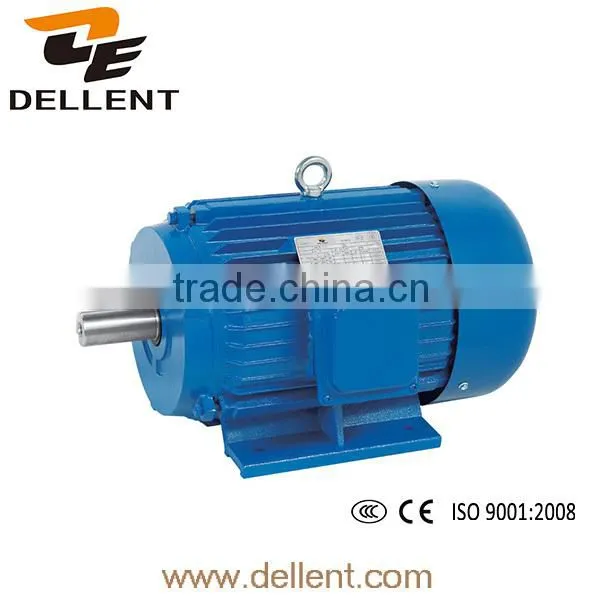

Y Series Cast Iron Housing Three-phase Induction Motor With CE , CCC
Specifications
Y series cast iron housing three-phase induction motor1, reliable performance
2, factory directly
3, CCC CE
Y series cast iron housing three-phase induction motor With CE , CCC
| 1) Y series motors are totally enclosed fan cooling three phase squirrel cage induction motor. | ||||||
| 2) Y series motors have outstanding performance, such as high efficiency, energy saving, high starting torque, low noise, little vibration, reliable operation and easy maintenance, etc. | ||||||
| 3) It is widely used in many places where do not have combustible, explosive or corrosive gas, and without special requirements, such as driving equipments of various machineries such as: machine tools, blowers, pumps, air compressors, transporters, agricultural and food processing. | ||||||
| 4) The Y connection for moor of 3kw and below; and delta connection for 4kw and above. | ||||||
| Contruction Materials | ||||||
| Frame – Cast iron | ||||||
| End shields- Cast iron | ||||||
| Fan cowl- steel | ||||||
| Fan-Plastic | ||||||
| Shaft- Medium carbon steel(stainless available on request) | ||||||
| Operating Conditions: | ||||||
| Power Range | 0.18 ~ 55KW | |||||
| Frame Size | 80 ~ 250M | |||||
| Enclosure: | IP44,IP54, IP55 | |||||
| Insulation | Class B,F, H | |||||
| Voltage | 230/380V,380/660V | |||||
| Frequency: | 50Hz/60Hz | |||||
| Working duty | S1,S2,S3 | |||||
| Speed: | 2 Pole , 4 Pole ,6 Pole & 8Pole | |||||
| Note: | ||||||
| The voltage and frequency could be made according to your request. | ||||||
| Technical Data | ||||||
| Model | Power | Current(A) | Speed(r.p.m) | Eff(%) | Power factor | |
| kW | HP | |||||
| Y801-2 | 0.75 | 1 | 3.1/1.8 | 2830 | 75 | 0.84 |
| Y802-2 | 1.1 | 1.5 | 4.3/2.5 | 2830 | 77 | 0.86 |
| Y90S-2 | 1.5 | 2 | 5.9/3.4 | 2840 | 78 | 0.85 |
| Y90L-2 | 2.2 | 3 | 8.3/4.8 | 2840 | 80.5 | 0.86 |
| Y100L-2 | 3 | 4 | 11.1/6.4 | 2870 | 82 | 0.87 |
| Y112M-2 | 4 | 5.5 | 4.7/8.2 | 2890 | 85.5 | 0.87 |
| Y132S1-2 | 5.5 | 7.5 | 6.4/11.2 | 2900 | 85.5 | 0.88 |
| Y132S2-2 | 7.5 | 10 | 8.6/15.0 | 2900 | 86.2 | 0.88 |
| Y160M1-2 | 11 | 15 | 12.6/21.8 | 2930 | 87.2 | 0.88 |
| Y160M2-2 | 15 | 20 | 16.9/29.4 | 2930 | 88.2 | 0.88 |
| WHAT WE DO AT DELLENT |
| • Having self-own plants producing for stators ,rotors and some related die-casting parts since from 1995 |
| • Stamping of lamination |
| • Rotor die-casting |
| • Winding and inserting – both manual and semi-automatically |
| • Vacuum varnishing |
| • Machining shaft, housing, end shields, etc… |
| • Rotor balancing |
| • Painting – both wet paint and powder coating |
| • Motor assembly |
| • Packing |
| • Inspecting spare parts every processing |
| • 100% test after each process and final test before packing. |
|
WHAT DELLENT CAN DO FOR CUSTOMERS |
| • Dellent supplies standard products to customers. |
| • Dellent supplies standard products under customers’ brands and packaging, etc |
| • Dellent develops any new products together with the customers. |
