YC Series Single Phase Electric ac Motor of Cast Iron Shell With CE , CCC
US$ 10 - 300
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
DELLENT
Model Number:
YC series single phase ac motor
Type:
Asynchronous Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YC , YCL Series 1 Phase/ Single Phase Electric Motor With Cast Iron HousingUS$ 10.5 - 300MOQ: 50 Pieces -
YL Series 1 Phase Dual-Valued Electric MotorUS$ 10 - 300MOQ: 50 Pieces
-
JY Series 1 Phase / Single Phase Capacitor Start Electric MotorUS$ 10.5 - 68MOQ: 50 Pieces
-
Y Series Cast Iron Housing Three-phase MotorUS$ 5 - 500MOQ: 50 Sets
-
ML Series Single-phase Capacitor Start Asynchronous Two Capacitor MotorUS$ 5 - 500MOQ: 50 Sets
Brand Name
DELLENT
Model Number
YC series single phase ac motor
Type
Asynchronous Motor
Frequency
50HZ , 60HZ, 50HZ , 60HZ
Output Power
0.25 KW to 3.7KW
Protect Feature
Waterproof
Phase
Single-phase
Certification
CCC, CE, CCC, CE, Other, CCC, CE, CCC, CE , SGS, ISO
AC Voltage
Other, 220, 110-240V
Place of Origin
Fujian, China
Efficiency
Other, IEC ,IE1 , IE2
Specifications
YC series single phase Electric ac motor1, reliable performance
2, factory directly
3, CCC CE
YC series single phase Electric ac motor With CE , CCC
Introduction and Application
| YC series electric motor is used to drive small size machine, especially for household and workshop where only need single phase power supply. | ||||||
| Advantage: | ||||||
| 1. Low noise | ||||||
| 2. lower temperature raising and starting current | ||||||
| 3. higher starting torque | ||||||
| 4. reliable operation | ||||||
| 5. easy maintenance | ||||||
| 6.pretty appearance | ||||||
| Contruction Materials | ||||||
| Frame – Cast iron | ||||||
| End shields- Cast iron | ||||||
| Fan cowl- steel | ||||||
| Fan-Plastic | ||||||
| Shaft- Medium carbon steel(stainless available on request) | ||||||
| Operating Conditions: | ||||||
| Power Range | 0.25 ~ 3.7KW | |||||
| Frame Size | 80 ~ 132S | |||||
| Enclosure: | IP44,IP54 | |||||
| Insulation | Class B , F | |||||
| Voltage | 220, 110 ~ 240V | |||||
| Frequency: | 50Hz/60Hz | |||||
| Working duty | S1 | |||||
| Speed: | 2 Pole , 4 Pole | |||||
| Note: | ||||||
| The voltage and frequency could be made according to your request. | ||||||

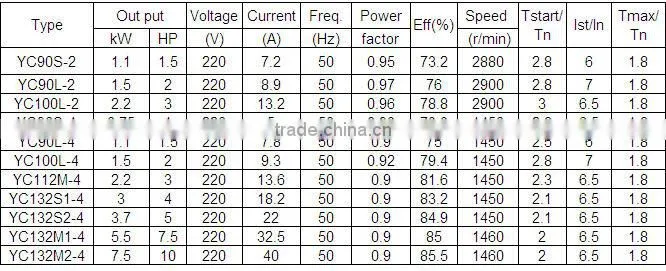

| Technical Data | ||||||
WHY CHOOSE US (OUR ADVANTAGE)
| WHAT WE DO AT DELLENT |
| • Having self-own plants producing for stators ,rotors and some related die-casting parts since from 1995 |
| • Stamping of lamination |
| • Rotor die-casting |
| • Winding and inserting – both manual and semi-automatically |
| • Vacuum varnishing |
| • Machining shaft, housing, end shields, etc… |
| • Rotor balancing |
| • Painting – both wet paint and powder coating |
| • Motor assembly |
| • Packing |
| • Inspecting spare parts every processing |
| • 100% test after each process and final test before packing. |
|
WHAT DELLENT CAN DO FOR CUSTOMERS |
| • Dellent supplies standard products to customers. |
| • Dellent supplies standard products under customers’ brands and packaging, etc |
| • Dellent develops any new products together with the customers. |
