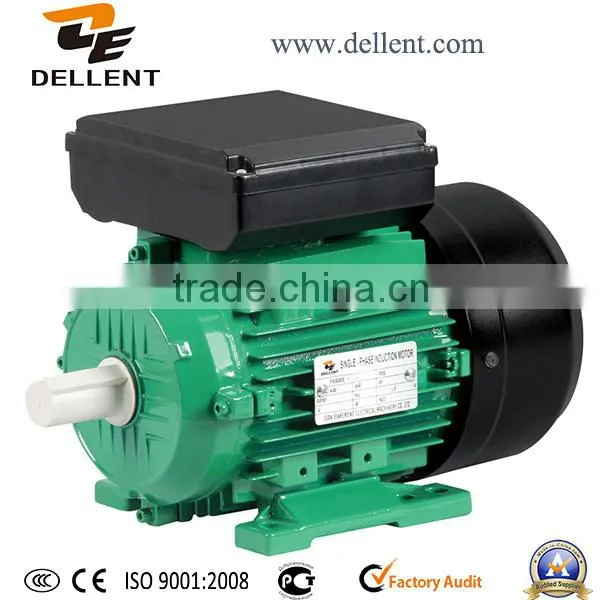

MC Series Single Phase/ 1phase Electric ac Motor Made in China
US$ 10 - 200
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
DELLENT
Model Number:
MC series single phase ac motor
Type:
Asynchronous Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Y2 Series 0.18kW-55kW 3 Phase Motor / Three Phase Electric Motor With CE , CCCUS$ 10 - 300MOQ: 50 Pieces -
AEEF Series Three Phase Aluminum Housing High Efficiency Electric MotorUS$ 5 - 500MOQ: 50 Sets
-
Y Series Cast Iron Housing Three-phase Induction Motor With CE , CCCUS$ 10 - 300MOQ: 50 Pieces
-
MS SeriesThree Phase Aluminum Housing High Efficiency Electric MotorUS$ 5 - 500MOQ: 50 Sets
-
Y2 Series Three Phase Cast Iron Housing High Efficiency Electric AC MotorUS$ 5 - 500MOQ: 50 Sets
Brand Name
DELLENT
Model Number
MC series single phase ac motor
Type
Asynchronous Motor
Frequency
50HZ , 60HZ
Output Power
0.12 KW to 3KW
Protect Feature
Waterproof
Phase
Single-phase
Certification
CCC, CE, CCC, CE, Other, CCC, CE, CCC, CE , SGS, ISO
AC Voltage
Other, 220V ,110-240V
Place of Origin
Fujian, China
Efficiency
Other, IEC ,IE1 , IE2
Specifications
MC series Single phase/ 1phase Electric motor1, reliable performance
2, factory directly
3, easy maintainance
4, CE CCC

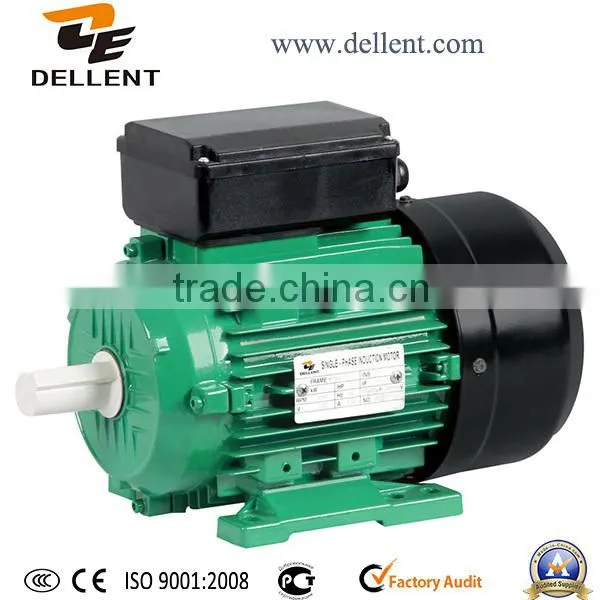

MC series Single phase/ 1phase Electric ac motor made in China
Introduction and Application
| 1) MC series motors are totally enclosed fan cooled single phase squirrel cage capacitor start asynchronous induction motor. | ||
| 2) MC motor has good performance, safe and reliable operation, nice appearance, and can be maintained very conveniently, while with low noise, little vibration and at the same time of light weight and simple construction. | ||
| 3) MC series motors are suitable for air compressors, pumps, fans, medical apparatus and instruments, and many other machines that need full-load start. | ||
| Contruction Materials | ||
| Frame – Aluminium | ||
| End shields- Aluminium/Cast iron | ||
| Fan cowl- steel | ||
| Fan-Plastic | ||
Shaft- Medium carbon steel(stainless available on request) | ||
| Terminal box – Aluminium | ||
| Operating Conditions: | ||
| Power Range | 0.12 ~ 3KW | |
| Frame Size | 71 ~ 112M | |
| Enclosure: | IP44,IP54 | |
| Insulation | Class B , F | |
| Voltage | 220, 110 ~ 240V | |
| Frequency: | 50Hz , 60Hz | |
| Working duty | S1 | |
| Speed: | 2 Pole , 4 Pole | |
| Note: | ||
| The voltage and frequency could be made according to your request. | ||

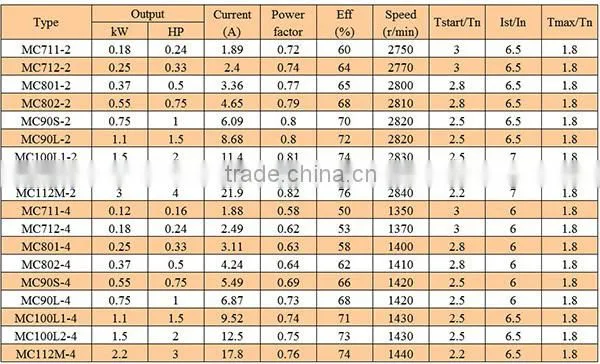

| MC single phase ac motors Technical Data | ||
WHY CHOOSE US (OUR ADVANTAGE)
| WHAT WE DO AT DELLENT |
| • Having self-own plants producing for stators ,rotors and some related die-casting parts since from 1995 |
| • Stamping of lamination |
| • Rotor die-casting |
| • Winding and inserting – both manual and semi-automatically |
| • Vacuum varnishing |
| • Machining shaft, housing, end shields, etc… |
| • Rotor balancing |
| • Painting – both wet paint and powder coating |
| • Motor assembly |
| • Packing |
| • Inspecting spare parts every processing |
| • 100% test after each process and final test before packing. |
|
WHAT DELLENT CAN DO FOR CUSTOMERS |
| • Dellent supplies standard products to customers. |
| • Dellent supplies standard products under customers’ brands and packaging, etc |
| • Dellent develops any new products together with the customers. |
