Help CenterRotary Die Cutting Machine for Label
Related Products
Specifications
1. high speed 120m/min2. German technology
3. can do rotary and semi rotary both
4. save mould fees

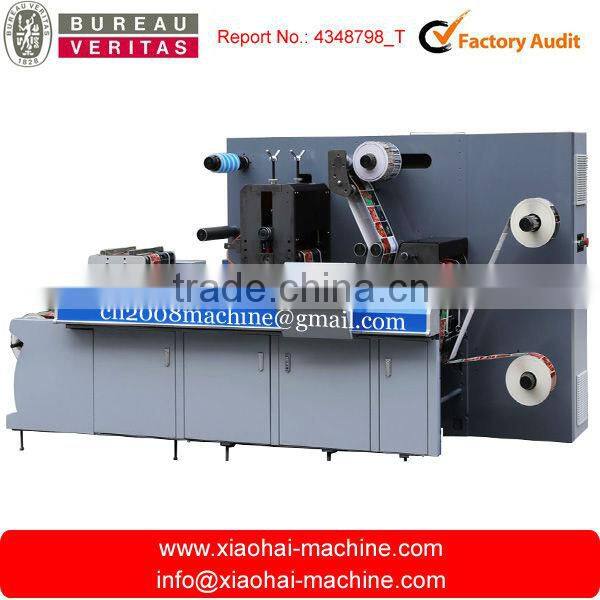

Rotary die cutting machine for label
A.CHARACTERISTIC
The ZM-320 rotary/semi-rotary label die-cutting machine is a newly-developed converting machine equipped with inline slitter . This machine adopts latest Rexroth-Bosch (Germany) servo and control system, including unwinder,web-guider,lamination,registered die-cutter, slitter ,and rewinder.
The register die-cutting system is our patent product, it can be full rotary or semi-rotary die-cutter according to the production requirement.
When semi-rotary die-cutter, the tension among unwinder, web-guider and rewinder will be the same (different from traditional intermittent type), the material will not run away during the die-cut.
Semi-rotary die cutting unit adopts one big magnetic cylinder, if you have different applications, the only job is to change the flexible die.
320 machine has the characteristic of fast speed, super accurate, easy operation, high efficiency and less cost. It’s good for all kind of label die-cutting jobs, include shrot run to long run.
If the job is large quantity, then you can change the magnetic roller accordingly, it will highly increase the die-cutting quality and output.
B.MAIN TECHNICAL SPECIFICATION
Max die-cutting speed (rotary): |
120m/min |
Max die-cutting speed (semi-rotary): |
65m/min |
Max die-cutting length (rotary): |
190.5-539.75mm |
Max die-cutting length (semi-rotary): |
100-350mm |
Max die-cutting width: |
300mm |
Max web width: |
320mm |
Max unwinder dia.: |
600mm |
Max. rewinder dia.: |
600mm |
Die-cutting accuracy: |
+0.1mm |
Slitting width: |
20-300mm |
Power supply: |
380v 3p |
Weight: |
2400kg |
Dimension |
3.22X1.68X1.66m |
C.MAIN EQUIPMENTS
Description |
Quantity and Brand |
Controller |
1piece Rexroth Bosch (German) |
Servo drive |
1piece Rexroth Bosch (German) |
Main motor: |
3piece Rexroth Bosch(German) |
Inverter |
2pieces Schneider(France) |
Touch screen: |
1 piece Weinview (China Taiwan) |
Following photocell switch |
1piece SICK(German) |
Web-guiding system |
1set BST(German) |
Contactor: |
1piece Schneider (France) |
Button: |
pieces Schneider (France) |
