Specifications
Label slitting and rewinding machine It is used for slitting and rewinding narrow paper .

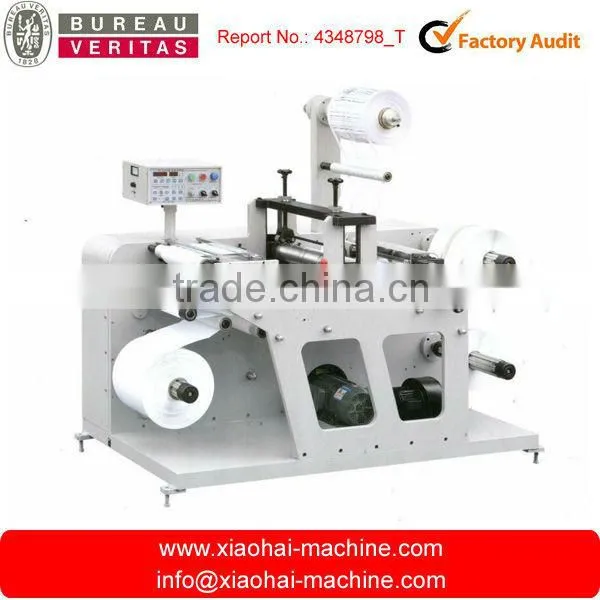

DK-320G Type Label slitting machine
DK-320G Sltting machine with rotary die-cutting function is a new product , it equipped with high accurate rotary die-cutting system(exclude magnetic cylinder) .This machine is suitable for blank adhesive labels . Die-cutting , Lamination(option) , slitting can be finished in one process . It has the function of automatic meter counting (Sick brand, Germany), automatic stopping, web guiding by photocells (Kontec, Taiwan). The machine has the characteristics of compact structure, fast speed (inverter is Emerson, America ), high efficiency, easy operation, accurate slitting, steady running etc.
Model type |
DK-320G |
Slitting speed |
80m/min |
Die-Cutting speed |
70m/min |
Die-Cutting Repeat Length |
177-476mm |
Max. web width |
320mm |
Max. unwinding diameter |
500mm |
Max rewinding diameter |
480mm |
Overall diameter |
1.95mX1.15mX1.75m |
Machine weigh |
1100kgs |
