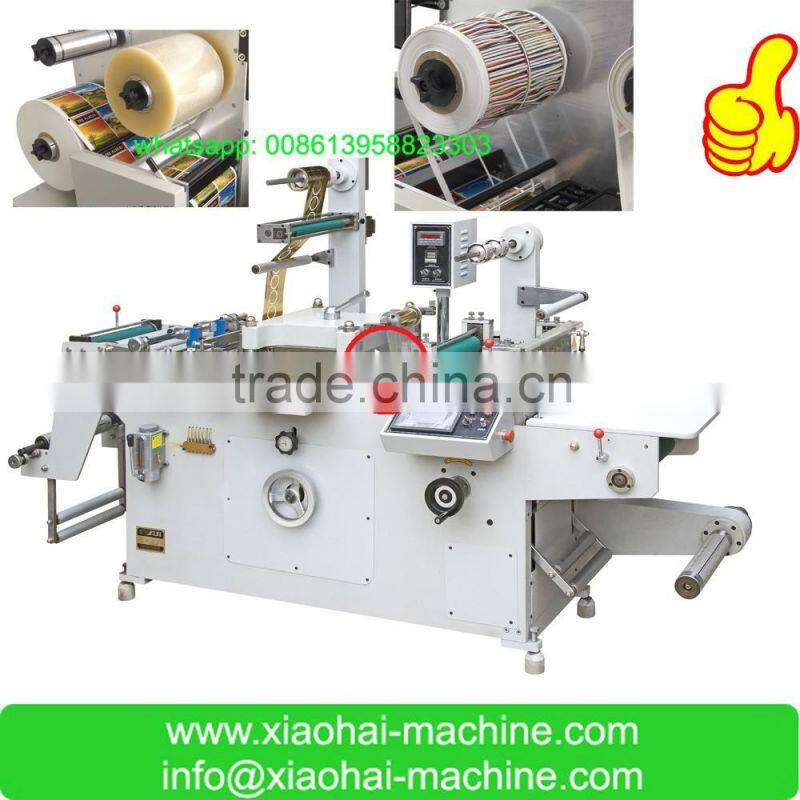

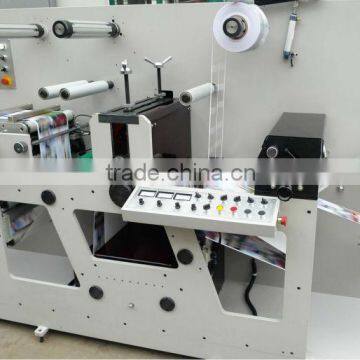

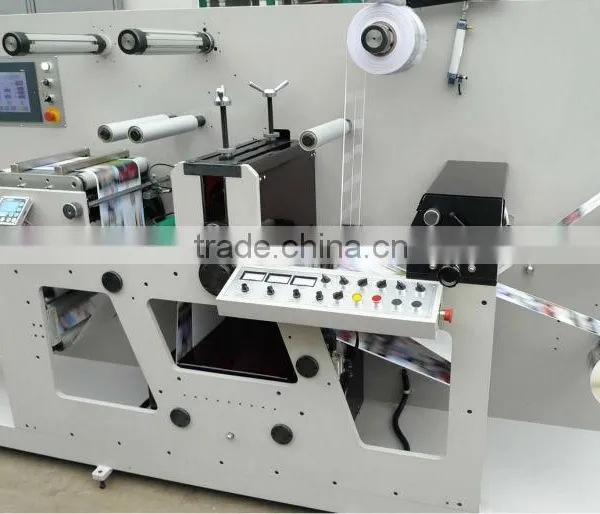

HAS VIDEO die cut flat bed machine with punching, hot-stamping ,laminating
The machine adopts accurate flatten die-cutting system, material towing is controlled by servo motor, three photocells do the web-guiding job. Die-cutting, waste removing and rewinding (or sheeting) can be finished in one process. it's suitable for die-cutting adhesive paper, dacron label and laser hologram mark. This is the ideal association equipment for flexo printing machine, silk screen printing machine, gravure printing machine and hologram mark printing machine.
Main specification:
Model | MQ-320 | MQ-320G | MQ-420 |
Cutting speed | 20-125 t/min | 20-170 t/min | 20-170 t/min |
Max unwinding diameter | 450mm | 500mm | 500mm |
Max. web width | 320mm | 320mm | 420mm |
Max. mould cutting width | 300mm | 300mm | 400mm |
Max. mould cutting Length | 290mm | 300mm | 400mm |
Orientation accuracy | ±0.15mm | ±0.1mm | ±0.1mm |
Total power | 3kw | 3.5kw | 4.5kw |
Power supply: | 220v±10% | 220v±10% | 220v±10% |
Machine weight | 1500kg | 1700kg | 2300kg |
Overall dimension (L×W×H) | 2600x950x1400mm | 2600×950×1400mm | 2700x1050x1500mm |
Sticker Label Production Line:
- 1. Sticker Label Flexo printing machine
- 2. Label Die cutting machine to be sheet or to be roll Flat bed
- 3. Rotary Label Die Cutting Machine
- 4. Label roll to roll slitting and rewinding machine
- 5. Label Slitting and rewinding machine with die cut funcation
- 6. Label Inspection Machine
- 5. Flexo Plate Making Machine For Printing Machine
- 6. Flexo Cylinder Plate Mounter Machine
- 7. Anilox Roller Ultrasonic Cleaning Machine
- 10. Label adhesive Coating Machine
- 11. IML Label Die Cutting Machine
- 12. PS Label Printing Machine
