HAS VIDEO WFQ Horizontal 160meter Per Minute Slitting And Rewinding Machine For Paper Roll With Disc Knife

HAS VIDEO WFQ Horizontal 160meter Per Minute Slitting And Rewinding Machine For Paper Roll With Disc Knife thumbnail-1
HAS VIDEO WFQ Horizontal 160meter Per Minute Slitting And Rewinding Machine For Paper Roll With Disc Knife thumbnail-2
HAS VIDEO WFQ Horizontal 160meter Per Minute Slitting And Rewinding Machine For Paper Roll With Disc Knife photo-1

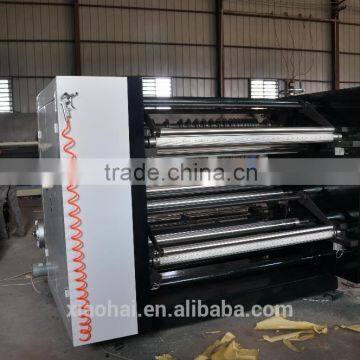

HAS VIDEO WFQ Horizontal 160meter Per Minute Slitting And Rewinding Machine For Paper Roll With Disc Knife photo-2
US$ 1 - 111,111 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Slitting Rewinder
Computerized:
Yes
Contact Supplier Request Quote Chat Now
Wenzhou Xiaohai I/E Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Slitting Rewinder
Computerized Yes
Place of Origin Zhejiang, China
Brand Name XIAOHAI
Model Number ZWF-1300
Voltage 380v 220v
Power(W) 5.5kw
Dimension(L*W*H) 3300X2500X2200MM
Weight 3300kg
Certification ISO9001
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

HAS VIDEO WFQ Horizontal 160meter Per Minute Slitting And Rewinding Machine For Paper Roll With Disc Knife



Main Technical Parameter:

 HAS VIDEO WFQ Horizontal 160meter Per Minute Slitting And Rewinding Machine For Paper Roll With Disc KnifeHAS VIDEO WFQ Horizontal 160meter Per Minute Slitting And Rewinding Machine For Paper Roll With Disc Knife

Main Technical Parameter:



1. Slitting Material: Film, Paper Roll etc



2. Slitting Width:25-1300mm



3. Machine Speed: 160m/min



4. Slitting Speed: 150m/min



5. Unwinding Diameter: 800mm  Tension 100N.m   3” Air shaft



6. Rewinding Diameter:2x600mm Tension 100N.m  3” Air shaft



7. Main Motor:4.5KW frequency conversion motor



8. Cutting System: Adopt round blade/flat blade,slitting accuracy:±0.1mm,minimum slitting width:25mm



9. Transmission: Belt



10. Guide Roller: 80 Hard Aluminum Alloy



11. Machine Construction: Alloy Iron



12. Web guide scope:120mm Accuracy:±0.3mm

Configuration:



1. Main Control Part:It has the function of meter counting or length counting,automatic stopping, Speed Adjustment.



Unwinding Tension: Adopt Magnetic Powder control tension 100N.M



Rewinding Tension: Adopt Magnetic Powder control tension 100N.M



Main Motor: Adopt Three Phase AC 5.5KW Frequency Conversion Motor



2. Running and Locking:Pneumatic



3. Lower Voltage Apparatus:Adopt CHNT



4. Pneumatic Component:Adopt Domesitc Mingyou or Jingwei



5. Web Guide: Adopt photoelectric eye



6. Slitting Blade: Scaleplate Orientation,it’s easy to install,and accurate.
