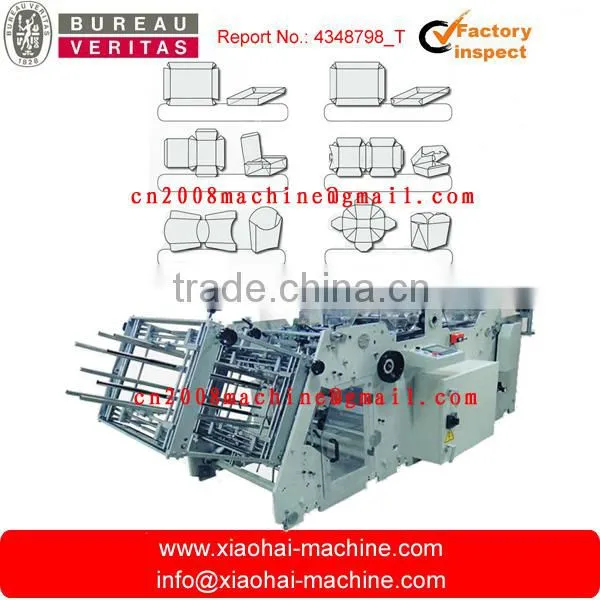

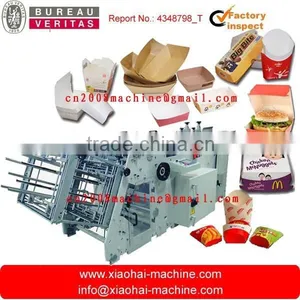

Automatic Carton Erecting Machine

Automatic Carton Erecting Machine photo-1
US$ 1 - 11,111 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Paper Folding Machine
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Paper Folding Machine
Computerized Yes
Place of Origin Zhejiang, China
Brand Name XH
Model Number HBH
Voltage 380V
Power(W) 15KW
Dimension(L*W*H) 3450mm*1250mm*1480mm
Weight 3000KG
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. carry-out boxes
2. paper food boxes
3. fast food boxes
4. burger



Product Description



carton erecting machine
is high effciency, reliable quality and long service life.

We Are carton erecting machine Machines

Take Away Food  Box Forming Machine Advantage:

1.Feature of stereo box die-cutter: high efficiency, reaches 180pcs/min

2.Multifunctionality: can manufacture the products such as meal box, chips box, stereo box or burger box with different specifications on one machine only by changing its molds.

3.This machine applies water-based adhesive coating device, attains high efficiency and very high precision. Water-based adhesive, as water soluble adhesive compostion, is a kind of food-grade glue.

4.Most of the machine applies high-quality sealing bearing, prevents from dust or liquid penetrating and impacting the service life of bearings, with long service life and good stability.

5.The whole is driven by high-quality tinming belts and ensures almost zero error during its operation.

6.Main mould employs pine wood, enjoys high efficiency when replacing its mould.

7.Can automatically collect, store and count finished products, and install additionally counter as per the requirements of customers.

8.The machine applies PLC intelligent control system, and automatically stop when there is paper jamming or no paper. It can avoid unnecessary harm caused by the contact between worker and operation mechanism during the production process.



Technical Data:

Model No. HBH-800A
Productivity max 180pcs/min
Material  200-600gsm cardboard
Paper thinkness  max 1.5mm
Electricity required  3kw/hr
Air requried  6kg/cm²*200L/min
Productivity   Glue Sealing
 Overall size 3450mm*1250mm*1480mm
 Weight 2000kgs
