Straw With Spiral Screw Drinking Straw Machine

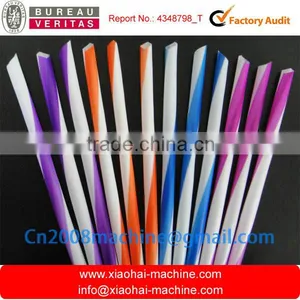

Straw With Spiral Screw Drinking Straw Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
XH
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Zhejiang, China
Brand Name XH
Model Number XG
Voltage 380v
Power(W) 11kw
Dimension(L*W*H) main machine: 2.10*1.30*1.5m 1200kg cool unit set: 3.6*0.7*1.2m 100k
Weight 900-1300kg
Certification CE
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

Automatic Small Big Straight And Flexible Extendable Drinking Straw Making Machine For Milk,Juice,Coffee Stir







Product Description

 straw with spiral screw drinking straw machine





straw with spiral screw drinking straw machine

straw with spiral screw drinking straw machine

straw with spiral screw drinking straw machine







Usage:
1.This automatic PP drinking straw making machine is wildly used for producing drink straw,nozzle,cotton bud stick,lollipop stick,tooth pick stick,ball-pen core,watercolor pen core,toy tube,drop tube and other small industrial irregular shape pipes.

2.This drinking straw extruder is with inverter extruding system,mould,vacuum cooling water tank or cooling water tank,take up and cutting device etc.It make different diameter and length straight straws.



Specification:



Model No.
XG-1
XG-2
XG-3
XG-4
One color Straw
Double colors straw
Tricolor Straw
Four Colors Straw
Extruder
Screw dia.
50 or 55
50 or 55
50 or 55
50 or 55
Screw L/D ratio
25:1
25:1
25:1
25:1
Motor
11kw or 15kw
11kw or 15kw+
0.7kwx1

11kw or 15kw+
0.7kwx2

11kw or 15kw+
0.7kwx3
Take up and Cutting Device
Inveter
0.75KW×2
0.75KW×2
0.75KW×2
0.75KW×2
Capability
Extruding Output
25-35Kg
25-35Kg
25-35Kg
25-35Kg
Product length
≥5mm
≥5mm
≥5mm
≥5mm
Product Outer Dia.
0.8mm-8mm or 0.8mm-13mm
0.8mm-8mm or 0.8mm-13mm
0.8mm-8mm
or 0.8mm-13mm
0.8mm-8mm or 0.8mm-13mm
Total Weight
900
1000
1200
1300





Remark:

You can choose different screw diameter and motor to make different product outer diameter,We have two types,one is to make max.diameter 8mm,another one is to make max.13mm outer diameter.thanks for your attention.
