XIAOHAI 6mm 7mm 8mm 10mm Big Drinking Straw Extruder For Milk,juice,coffee Stir

Wenzhou Xiaohai I/E Co., Ltd.
XIAOHAI 6mm 7mm 8mm 10mm Big Drinking Straw Extruder For Milk,juice,coffee Stir thumbnail-1
XIAOHAI 6mm 7mm 8mm 10mm Big Drinking Straw Extruder For Milk,juice,coffee Stir thumbnail-2
XIAOHAI 6mm 7mm 8mm 10mm Big Drinking Straw Extruder For Milk,juice,coffee Stir thumbnail-3
XIAOHAI 6mm 7mm 8mm 10mm Big Drinking Straw Extruder For Milk,juice,coffee Stir thumbnail-4
XIAOHAI 6mm 7mm 8mm 10mm Big Drinking Straw Extruder For Milk,juice,coffee Stir thumbnail-5
XIAOHAI 6mm 7mm 8mm 10mm Big Drinking Straw Extruder For Milk,juice,coffee Stir thumbnail-6
XIAOHAI 6mm 7mm 8mm 10mm Big Drinking Straw Extruder For Milk,juice,coffee Stir photo-1
XIAOHAI 6mm 7mm 8mm 10mm Big Drinking Straw Extruder For Milk,juice,coffee Stir photo-2
XIAOHAI 6mm 7mm 8mm 10mm Big Drinking Straw Extruder For Milk,juice,coffee Stir photo-3
XIAOHAI 6mm 7mm 8mm 10mm Big Drinking Straw Extruder For Milk,juice,coffee Stir photo-4
XIAOHAI 6mm 7mm 8mm 10mm Big Drinking Straw Extruder For Milk,juice,coffee Stir photo-5
XIAOHAI 6mm 7mm 8mm 10mm Big Drinking Straw Extruder For Milk,juice,coffee Stir photo-6
US$ 1 - 11,111 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
XH
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name XH
Model Number XG
Voltage 380v 50hz or 220v 50hz
Power(W) 7.5KW
Dimension(L*W*H) 1500*1800*1600mm
Weight 1000kg
Certification ISO9001:2000
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

drinking straw extruder



Product Description

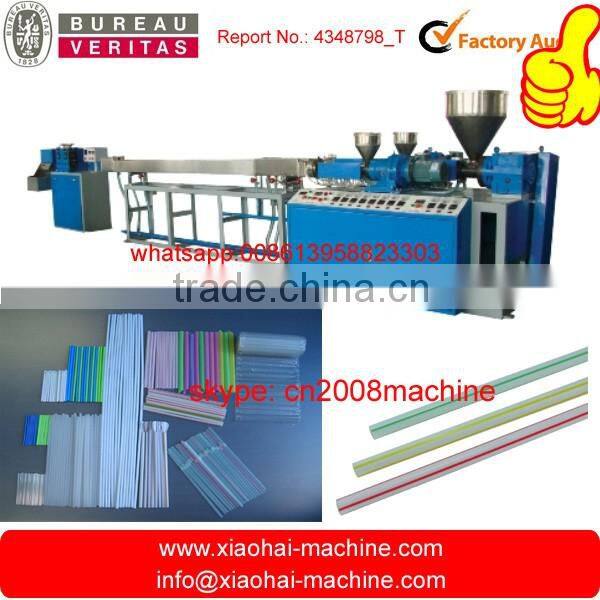

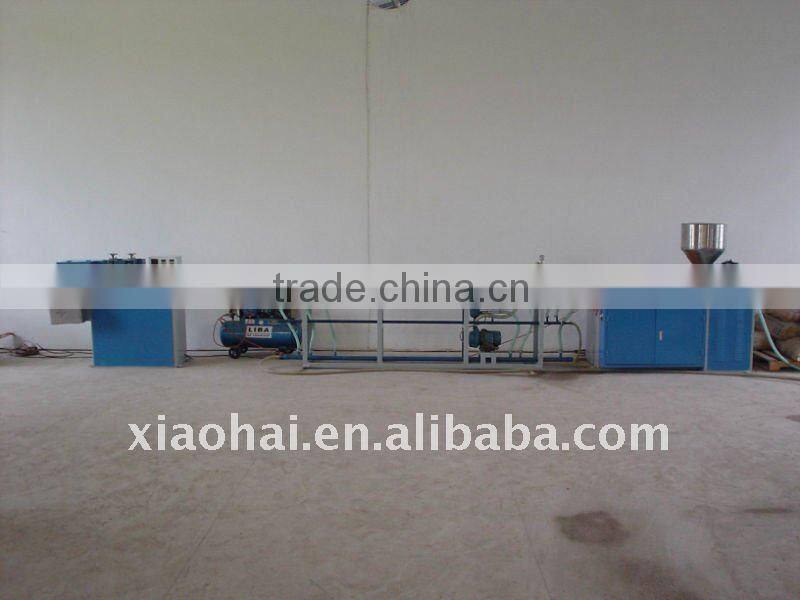

 first Video for straight drinking straw making machine

 XIAOHAI 6mm 7mm 8mm 10mm big Drinking straw extruder For milk,juice,coffee stir







XIAOHAI 6mm 7mm 8mm 10mm big Drinking straw extruder For milk,juice,coffee stir

 XIAOHAI 6mm 7mm 8mm 10mm big Drinking straw extruder For milk,juice,coffee stir







Usage:
1.This automatic PP drinking straw making machine is wildly used for producing drink straw,nozzle,cotton bud stick,lollipop stick,tooth pick stick,ball-pen core,watercolor pen core,toy tube,drop tube and other small industrial irregular shape pipes.

2.This drinking straw extruder is with inverter extruding system,mould,vacuum cooling water tank or cooling water tank,take up and cutting device etc.It make different diameter and length straight straws.



Specification:



Model No.
XG-1
XG-2
XG-3
XG-4
One color Straw
Double colors straw
Tricolor Straw
Four Colors Straw
Extruder
Screw dia.
50 or 55
50 or 55
50 or 55
50 or 55
Screw L/D ratio
25:1
25:1
25:1
25:1
Motor
11kw or 15kw
11kw or 15kw+
0.7kwx1

11kw or 15kw+
0.7kwx2

11kw or 15kw+
0.7kwx3
Take up and Cutting Device
Inveter
0.75KW×2
0.75KW×2
0.75KW×2
0.75KW×2
Capability
Extruding Output
25-35Kg
25-35Kg
25-35Kg
25-35Kg
Product length
≥5mm
≥5mm
≥5mm
≥5mm
Product Outer Dia.
0.8mm-8mm or 0.8mm-13mm
0.8mm-8mm or 0.8mm-13mm
0.8mm-8mm
or 0.8mm-13mm
0.8mm-8mm or 0.8mm-13mm
Total Weight
900
1000
1200
1300





Remark:

You can choose different screw diameter and motor to make different product outer diameter,We have two types,one is to make max.diameter 8mm,another one is to make max.13mm outer diameter.thanks for your attention.



Second machine video to make drinking straw flexible part



XIAOHAI 6mm 7mm 8mm 10mm big Drinking straw extruder For milk,juice,coffee stir

XIAOHAI 6mm 7mm 8mm 10mm big Drinking straw extruder For milk,juice,coffee stir





JH02-L4

JH02-L5/6

Speed (pcs/min)

220

250

Inner dai (mm)

3.8

4.3-8.0 can be choosed

Length (mm)

125-215

190-280

Thickness (mm)

0.15-0.20

0.10-0.18

Past length (mm)

35-48

35-48

Ring no

10(10-12)

11(10-13)

Appearance size (mm)

1700*1350*1600

Weight (Kg)

1000

Total power(Kw)

1.5(380V)

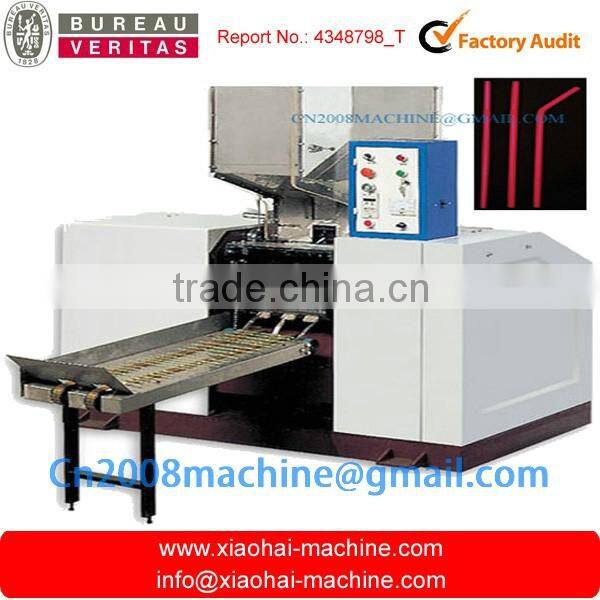

straw bending machine is an equipment used to bending straight drinking straws into flexible ones by second process. The entire operation, from product in-feed, forming to product out-feed, is automatically performed requiring the operator to add the material into the hopper loader only. The straight straws supplied in the hopper at the top of machine, are fed one by one into the main drum of the machine and clamped by two mechanical catches. This machine is composed of main body, main rotary device, forming system, electronic system and hopper etc.

the main drum has 12 or 18 mechanical hands and they work in continuous loop, thus high production can be achieved.

CHARACTERISTICS

1. can be customized for different pipe diameters.

2. With automatic counting function. Once the pre-set number is reached, the machine will alarm you, it is convenient for staff to calculate numbers.

3. Automatic stops when trouble occurs.

Related Machines.

Customer Bought This Machine,Also Have Interesting To Buy Following Machines:

  1. straight drinking straw extruder , 1 , 2 ,3 4 colors
  2. single drinking straw packing machine by paper or film
  3. group drinking straw packing machine by bag
  4. flexible straw bending machine
  5. Long Art Straw Bending Machine
  6. manual long whorl flexible straw ( artistic type drinking straw) making machine
  7. u shape drinking straw packing machine
  8. spoon straw making machine
  9. paper stick making machine
