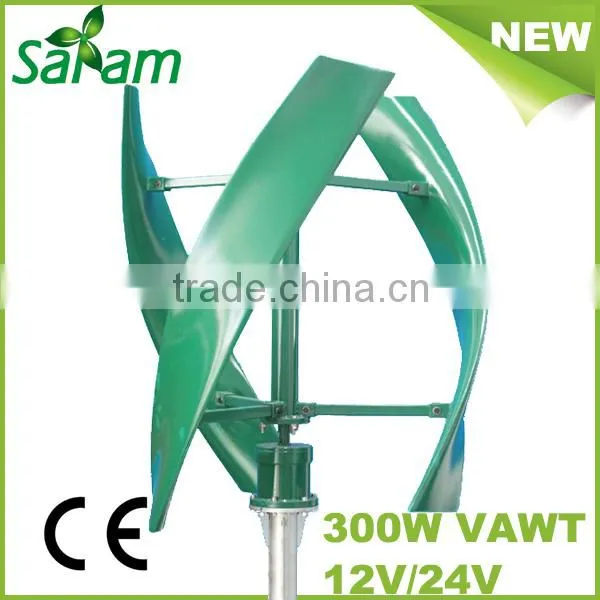

SAIAM SAV-300W-S direct drive wind generator
OVERALL:
SAIAM SAV-300W-S is a 2015 newest model in SAIAM's product collection. Thanks to its aerodynamically boosted S-type blade, and reasonable construction, it generates power very efficiently, Under the common wind speed of 7m/s, its actual power output can reach 50KWH per month, it's a very power supply!

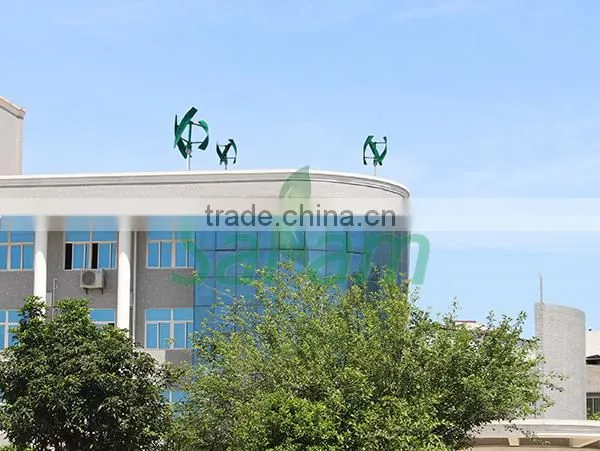

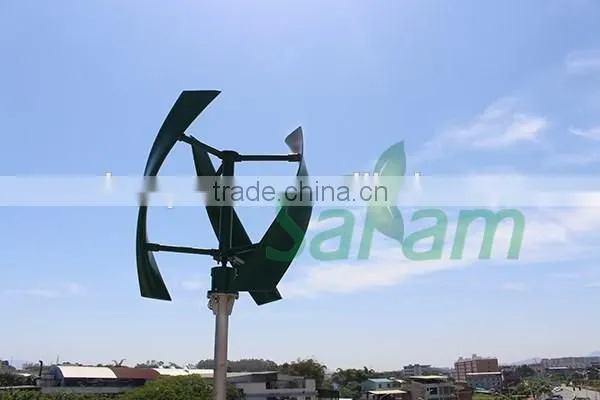

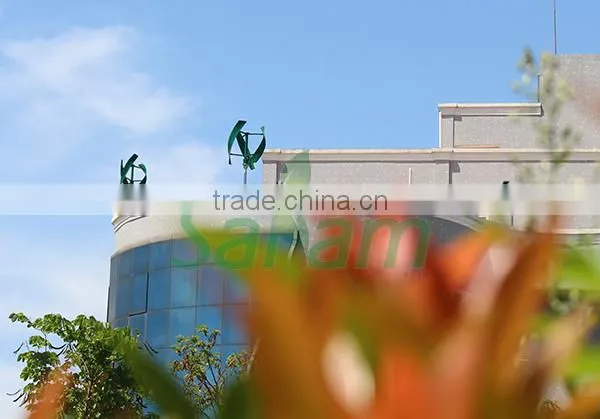

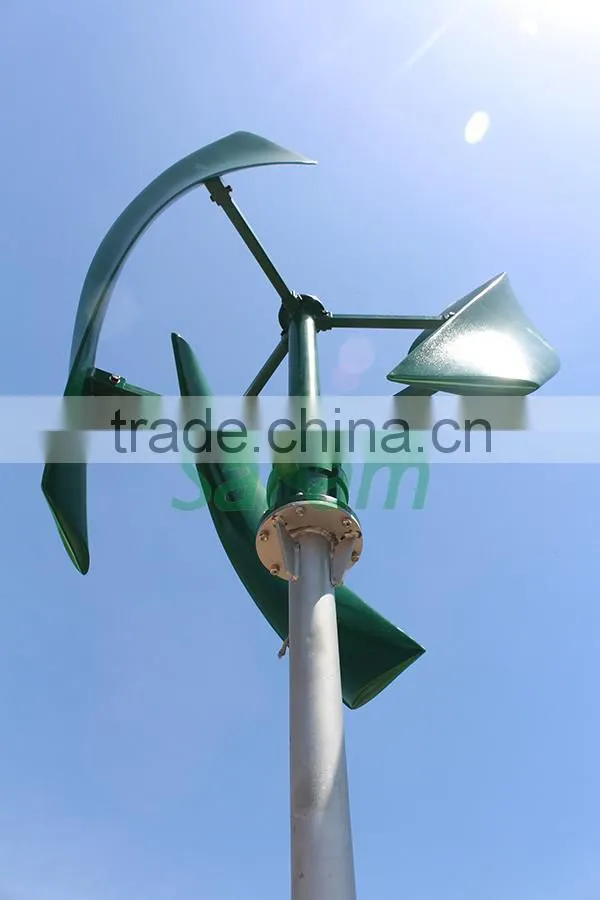

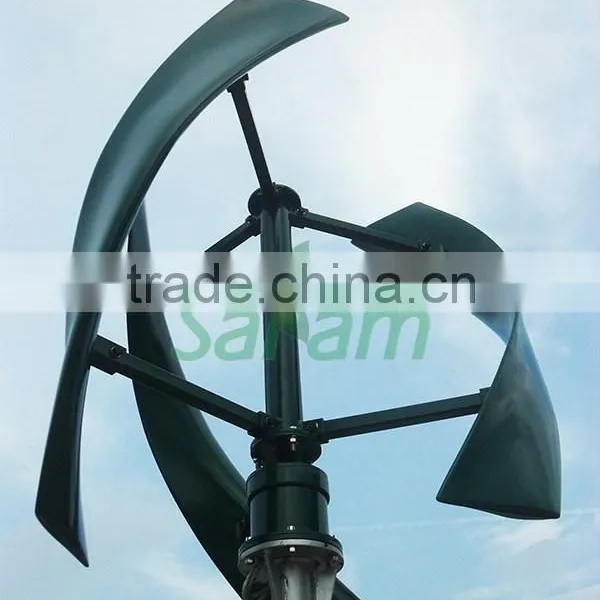

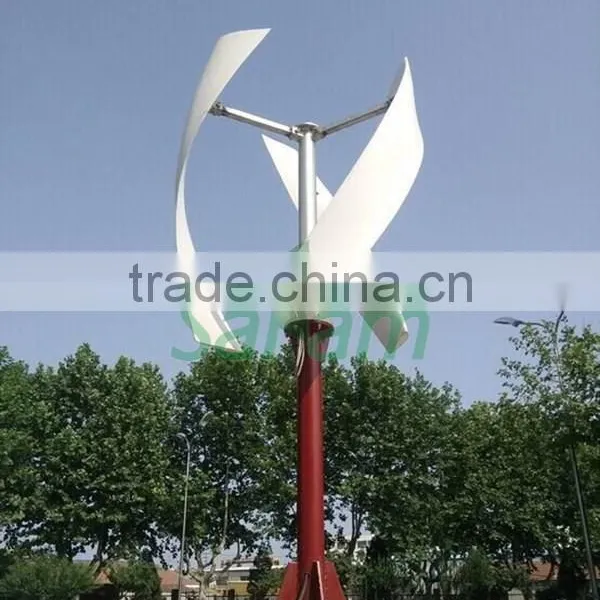

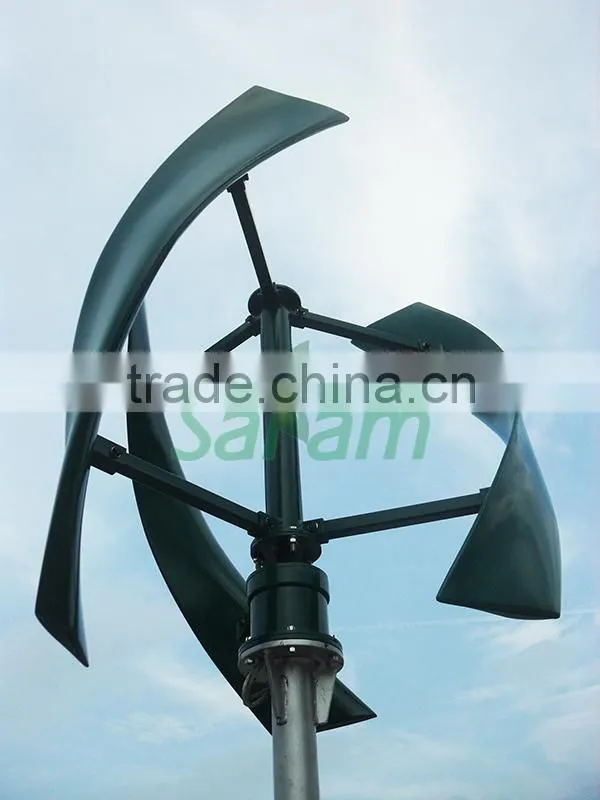

SAV-300W-S photograpic show:
FEATURE:
♦ Suitable for mounting on boat, motor home, rooftop, etc.
♦ Aerodynamic construction boosting energy efficiency
♦ Low starting torque, highly efficient synchronized PMG
♦ Outstanding materials and excellent workmanshipment
SPECIFICATION:
SAIAM SAV-300W-S direct drive wind generator | |
Performance | |
Rated power |
300W @12.2m/s |
Peak power |
300W |
Start-up wind speed |
2m/s |
Cut-in wind speed |
2.5m/s |
Survival wind speed |
45m/s |
Rotor | |
Rotor diameter |
1m |
Swept area |
1.2m² |
Blade |
3pcs reinforced fiber glass |
Blade length |
1.2m |
Shell material |
Precision steel |
Rated RPM |
200 |
Weight |
50KG |
Others | |
Generator type |
3-phase AC PMG |
Speed regulation & protection |
Electromagnetic brake |
Controller rated voltage |
DC 12/24V |
Suggested battery capacity |
1pc 150AH/12VDC |
Suggested tower |
6m guyed cable tower |
Working temperature |
-30 - 50°C |

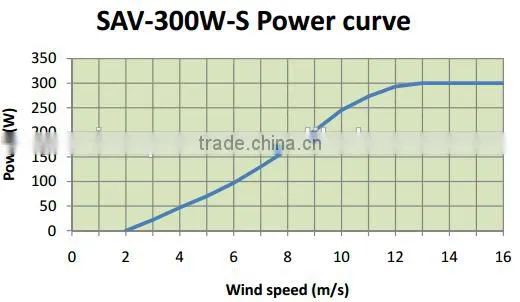

Power curve | |
| |
APPLICATION:

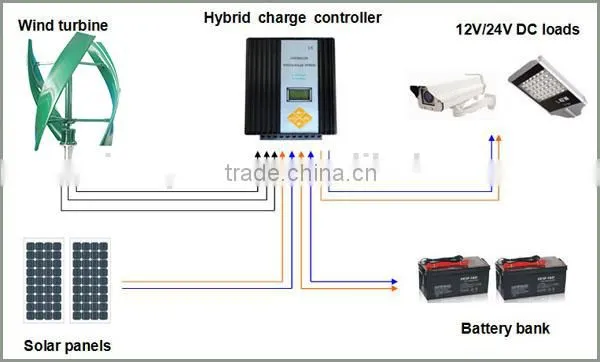

1, Off grid wind solar hybrid power for LED street light and monitoring system:

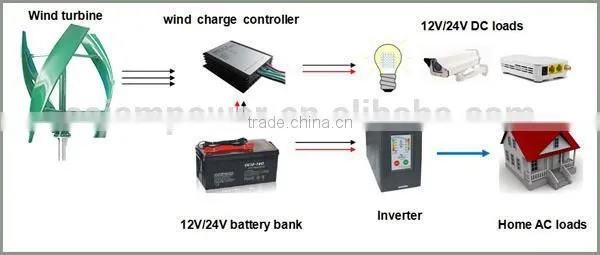

2, Off grid wind power for various eletronic appliances:

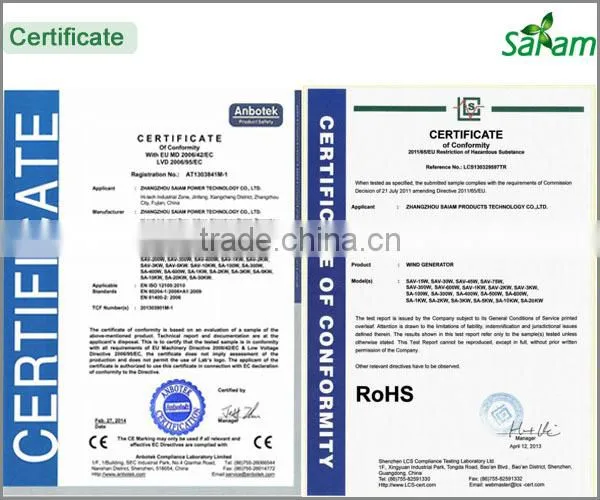

CERTIFICATION:
SAIAM SAV-300W-S direct drive wind generator | |
| Packing type | 1ctn/set |
| Carton dimension | 110*100*50cm |
| Gross weight | 65kg |
| Loadability |
50sets/20'GP |
Tips:
Samples are recommended to be sent via DHL or other express, to save the time and cost.
For bulk purchase, we suggest shipping the cargo by sea. Please contact us to get the detailed sea freight quotation.
Q1: Is the output voltage of SAV-300W-S DC or AC? Is there any charge controller built-in the wind generator? If it needs to connect with one charge controller, where can I find a suitable one?
A: The output voltage of SAV-300W-S is 3 phase AC. There is not built-in charge controller in this generator; We are supplying hybrid charge controller (recommended for hybrid power LED street lighting or hybrid power small home power supply) or simple wind charge controller for your choice.
Q2: What thickness of pole would we use for SAV-300W-S and what would be the height approximately of the section that we would add on to your unit?
A: We recommend using 3mm thickness, 6m height guyed cable tower for SAV-300W-S. The tower height could be customized according to the real project requirement.
Q3: What thickness of electric cable is used for SAV-300W-S?
A: The cable used to connect SAV-300W-S and battery bank should be in accordance with the right table chart. Using a smaller cable than recommended will reduce the performance of the charging system.
| Model no. | Cable Size | |
| 12V | 24V | |
| SAV-300W-S | 4mm² | 2.5mm² |
| Suggested cable run within 30m | ||
Q4: How is your SAV-300W-S to realize the security protection during heavy winds?
A: There is an electromagnetic brake (by controller) to ensure the speed regulation and protection during high wind. The wind wheel of SAV-300W-S, with low start-up and cut-in wind speed, high aerodynamic efficiency, will go to speed-loss working status in strong wind, that helps to lower the possibility of “out of control”, which could damage the blades. Furthermore, the blades are made of high strength reinforced fiber glass, guaranteeing the blades won’t be damaged under extreme wind at 45m/s.
