Butterfly Tail Design 200W 12V Mini Wind Turbine

FOB Price

USD $224 - $276 / Set

5 Sets(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Xiamen China
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Fujian, China	Brand Name:	SAIAM POWER	Model Number:	SA-200W
Type:	Wind Power Generator

Product Description

Product Overview

OVERALL:

SAIAM SA-200W 12v mini wind turbine is one of the most favorable model in SAIAM's wind turbine collection, featuring butterfly-like body design, it could be a very attractive decoration while provides very sufficient power supply!

Combined with the super efficient MPPT controller, you can create an ideal off-grid supplemental wind power system!

Monthly output @6m/s wind speed: 30KWh

Product Introduction

FEATURE:

♦ Highly efficient and productive at all wind speeds

♦ Virtually silent and vibration free in operation

♦ Low maintenance "fit and forget" engineering

♦ Attractive, visually pleasing design

♦ Robustly constructed for a long service life

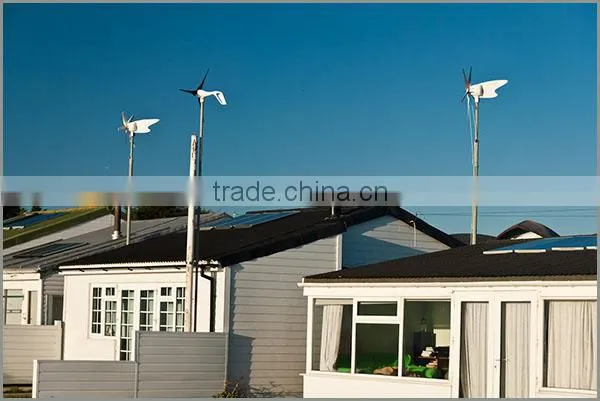

♦ Ideal for mounting on building or boats

FEATURE:

♦ MPPT charging technology, boost circuit designed (optional)

♦ With perfect protection

♦ Digital design, module structure, stable and reliable

♦ Dual-line output, light sensor and timer functions

Product Parameters

SA-200W Wind Turbine
Performance
Rated power	200W @14m/s
Peak power	400W
Start-up wind speed	2m/s
Cut-in wind speed	2.8m/s
Survival wind speed	35m/s
Rotor
Rotor diameter	1.1m
Swept area	0.95m²
Blade	5pcs high-strength Nylon-fiber glass
Blade length	52cm
Shell material	Aluminum alloy
Rated RPM	800
Weight	17kg
Others
Generator type	3-pahse AC PMG
Speed regulation & protection	Stall & electromagnetic brake
Rated voltage	DC 12/24V
Suggested battery capacity	1pc 150Ah/12VDC
Tower type	6m guy wire tower
Working temperature	-30-65℃

SAC-600TA
Rated wind power	300W(12V)/600W(24V)
Solar power	Max 150W(12V)/300W(24V)
Rated battery voltage	12V/24V auto detected
Charging mode	MPPT
Indication	LCD
Operating temperature	-35℃ to +55℃
Protection class	IP55
Dump-load type	Built-in
Dimension	18169cm
N.W.	1.2kg
Data-transfer	RS232 (Optional)
Protection function	Over-charge, over-discharge, open circuit, anti-reverse connection, overload, short-circuit, PMG over speed brake, over current brake, solar anti-reverse charging at night

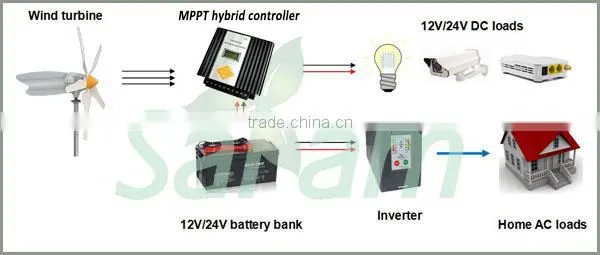

Application example 1:

Off grid wind power for various electronic appliances.

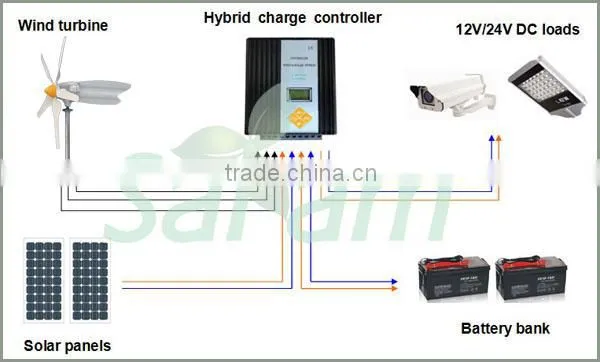

Application example 2:

Off grid wind solar hybrid power for DC loads.

Product Details Show

Product Processing

Product Packing

SA-200W + SAC-600TA Packing
Packing type	3ctns/set
Package dimension	553323cm, 752711cm, 181610cm
Volume	0.053m³
Gross weight	20.5kg
Loadability	528sets/20'GP

Why Choose Us

About us

SAIAM is a manufacturer focused in small scale renewables. We have more than 10 years' experience in this industry and we have a professional team to offer you with the best products and service.

Equipment & technology

Following the trends of the renewable energy industry firmly, we lay our attention on updating our production facilities and technics to date, in order to produce the most favorable products of the time.

Service

Put forward your queries to our expert sales team, and you will get the satisfying answers within 24 days. Also, our abundant experience guarantees we assist you complete orders fluently always!
