10w 12v Wind Turbine Toys

Name: 10w 12v Wind Turbine Toys
Brand: SAIAM
Availability: InStock

FOB Price

US$ 70 - 99 / Set

1 Set(Min. Order)

Port Xiamen China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China		Brand Name	SAIAM
Model Number	SAV-15W		Type	Wind Power Generator

Product Description

Product Overview

OVERALL:

SAIAM SAV-15W aerogenerator is a mini vertical axis wind turbine transforms wind energy into electrical energy with the rated output of 10W (@10m/s wind) and the peak output of 15W (Over 17m/s wind).Mini vertical axis wind turbine is a unique series presented by SAIAM, it features compact size, simple construction, and super user-friendly usage.It is very suitable to be mounted on roof, streetlight pole, marine, etc. Extremely ideal power supply for lighting, monitoring and so on.

Product Introduction

FEATURE:

♦ Self starting in low wind
♦ Low noise and vibration, not to be affected by turbulence
♦ Capture wind from any direction, no limit on terrain, low requirement on mast height and floor space
♦ Aluminum alloy integral extrusion molding achieves high strength and light weight
♦ Simple module structure, easy for installation and maintenance
♦ Birds friendly

Product Parameters

SAV-15W
Performance
Rated power	10W @10m/s
Peak power	15W
Start-up wind speed	2m/s
Working wind speed	3-20m/s
Survival wind speed	35m/s
Noise	≤40dB
Rotor
Rotor diameter	310mm
Swept area	0.1m²
Blade	5pcs aluminum alloy
Blade length	300mm
Shell material	Erosion resistant aluminum
Rated RPM	400
Weight	2.3kg
Others
Generator type	3-phase AC PMG
Speed regulation & protection	Overvoltage charge controlling
Rated voltage	DC 12V
Suggested battery capacity	1pc 7Ah/12VDC
Tower type	3-6m guyed cable tower
Working temperature	-30-50℃

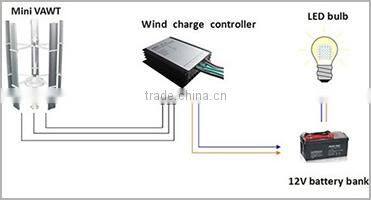

Application example 1:

rid wind power for various electronic appliances.

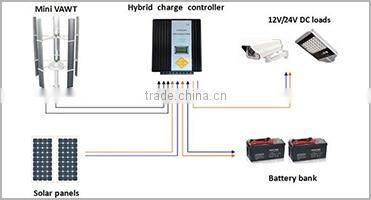

Application example 2:

Off grid wind solar hybrid power for DC loads.

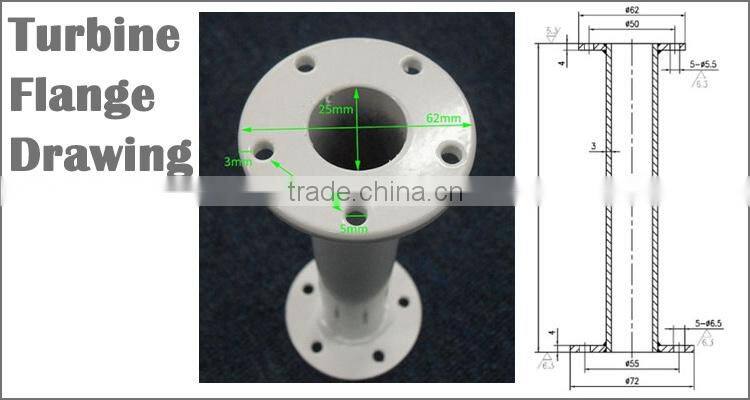

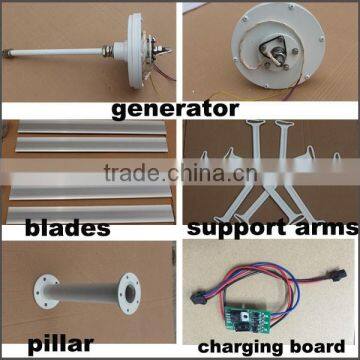

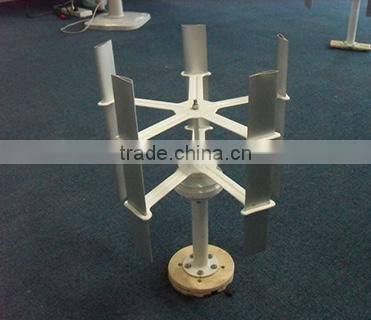

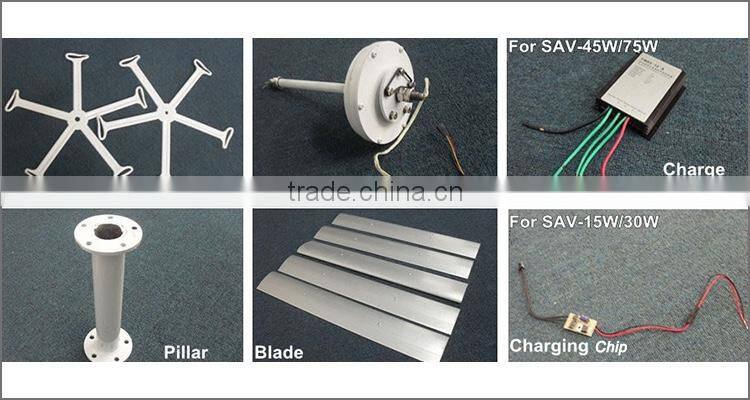

Product Details Show

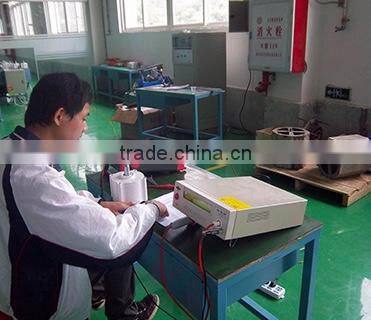

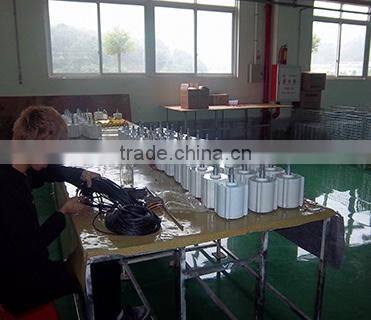

Product Processing

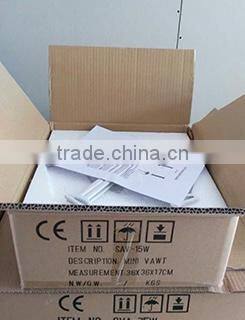

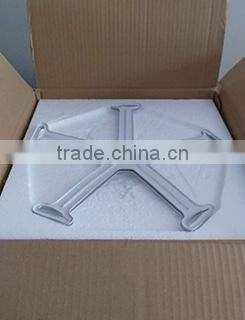

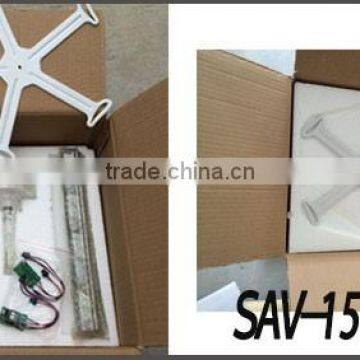

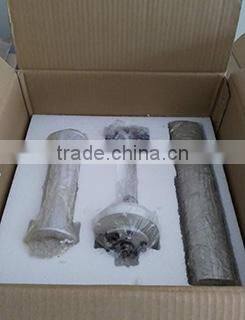

Product Packing

Why Choose Us

About us

SAIAM is a manufacturer focused in small scale renewables. We have more than 10 years' experience in this industry and we have a professional team to offer you with the best products and service.

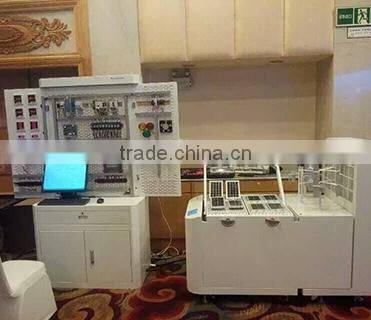

Equipment & technology

Following the trends of the renewable energy industry firmly, we lay our attention on updating our production facilities and technics to date, in order to produce the most favorable products of the time.

Service

Put forward your queries to our expert sales team, and you will get the satisfying answers within 24 days. Also, our abundant experience guarantees we assist you complete orders fluently always!
