Products Introduction

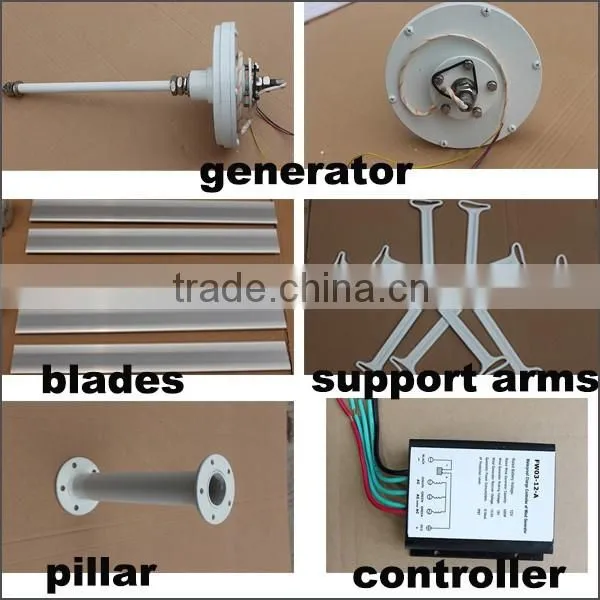

50w maglev vertical axis wind turbine generator can be used by in any areas where has good wind resource. It can provide stable and reliable electricity for lighting, household electrical appliances, etc.The whole unit consists of pillar, wind generator, blades, flanges and rectifier. The Mill is pushed by wind at speed from 3m/s to 20m/s to rotate to make the generator produce power in AC form. Then the power will be changed into DC form by the rectifier.
Main Feature
- The start-up wind speed is 2m/s,self starting in low wind
- The noise ≤40dB
- Capture wind from any direction,no limit on terrain
- Low requirement on mast height and floor space
- Simple module structure,easy for installation and maintenance
- Aluminum alloy integral extrusion molding achieves high strength and light weight
Detail Specification
Performance |
|
Rated power |
50W @10m/s |
Peak power |
75W |
Start-up wind speed |
2m/s |
Working wind speed |
3-20m/s |
Survival wind speed |
35m/s |
Noise |
≤40dB |
Rotor |
|
Rotor diameter |
560mm |
Swept area |
0.42m² |
Blade |
5pcs alumimium alloy |
Blade length |
745mm |
Shell material |
Erosion resistant aluminum |
Rated RPM |
260 |
Weight |
10.5KG |
Others |
|
Generator type |
3phase AC PM, gearless |
Speed regulation & protection |
overvoltage charge controlling |
Controller rated voltage |
DC 12/24V |
Suggested battery capacity |
4pcs 9AH/12VDC |
Suggested tower |
3-4m guyed cable tower |
Working temperature |
-30-50°C |
Power curve | |
|
| |
System Applications
1. Off grid wind solar hybrid power for LED street light and monitoring system
2.Off grid wind power for LED bulb lighting
Products Details
Packaging details
- Each 50w maglev vertical axis wind turbine generator was packed into one carton
- Packing dimension:81.5x58x26.5cm
- N.W/G.W:10.5kg/12.9kgs
- One 20ft container loading 220 sets
Shipping method
- Sample order is acceptable and it is better to ship it by air express to avoid my MOQ for sea shipping, like DHL or Fedex express.
- For bulk purchase, we suggest to ship the cargo by sea.
- Welcome contact Fiona Chen to get the detail sea freight quotation.
