1KW 24/48V Wind Turbine Price

1KW 24/48V Wind Turbine Price photo-1
1KW 24/48V Wind Turbine Price photo-2
1KW 24/48V Wind Turbine Price photo-3
1KW 24/48V Wind Turbine Price photo-4
1KW 24/48V Wind Turbine Price photo-5
1KW 24/48V Wind Turbine Price photo-6
US$ 905 - 1,111 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
SAIAM POWER
Model Number:
SA-1KW
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name SAIAM POWER
Model Number SA-1KW
Type Wind Power Generator
Product Overview

OVERALL:

SAIAM SA-1KW wind turbine comes as one of the major models from SAIAM's classical wind turbine collection, embodying the core feature of this system - high reliability and performance, this wind turbine is meant to be one perfect companion for your household appliances.

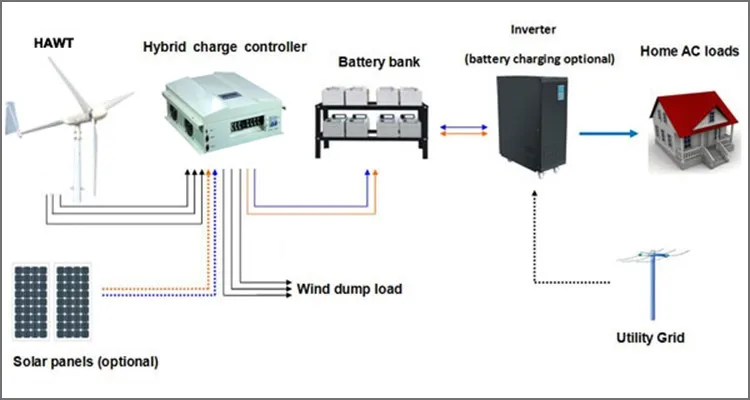

Combined with the super efficient MPPT controller, it makes an ideal off-grid wind power system for you!

Monthly output @6m/s wind speed: 188KWh

Product Introduction

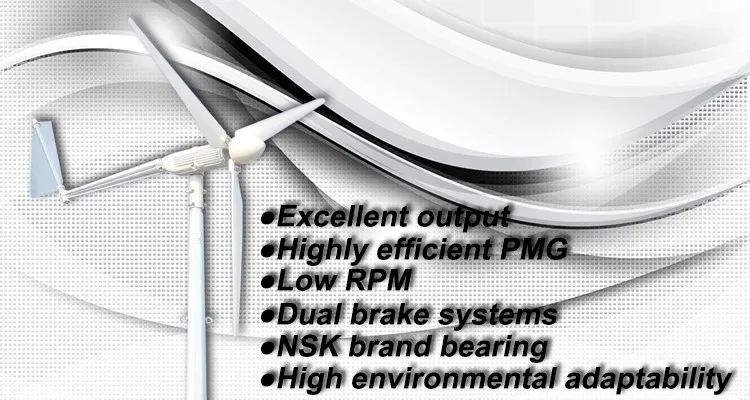

FEATURE:

♦ Excellent power output performance

♦ High efficient synchronized PMG generator with low starting torque

♦ Lower RPM rotational speed avoid the risk of over speed malfunction and bring lower noise emission

♦ Dual brake protection systems as reliable passive self‐furling and electromagnetic brake

♦ Equipped with high quality NSK brand sealed bearing

♦ Long lifespan design by using superior aluminum alloy and cast steel in accurate die‐casting tech and the anti‐corrosion treatment for all kinds of circumstances

FEATURE:

♦ Auto Voltage Boost & Drop Control

♦ MPPT charging technology

♦ With perfect protection

♦ Digital design, module structure, stable and reliable

♦ Dual-line output, light sensor and timer functions

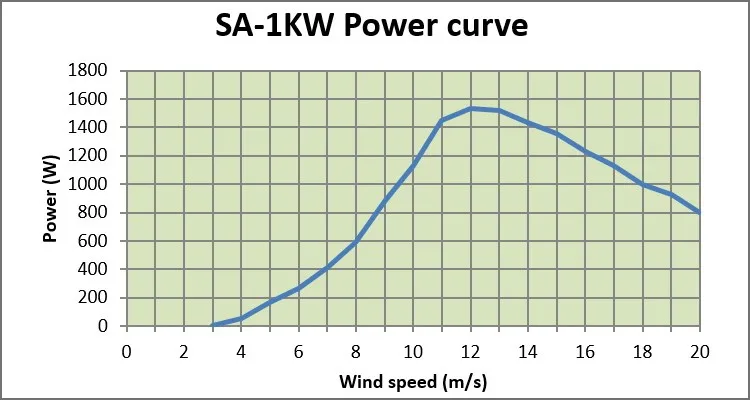

Product Parameters

SA-1KW Wind Turbine

Performance
Rated power
1000W @9.7m/s
Peak power
1500W
Start-up wind speed
3m/s
Working wind speed
3.5-20m/s
Survival wind speed
40m/s
Rotor
Rotor diameter
2.8m
Swept area
6.15m²
Blade
3pcs reinforced fiber glass
Blade length
134cm
Shell material
Precision steel
Rated RPM
380
Weight
56kg
Others
Generator type
3-phase AC PMG
Speed regulation & protection
Yawing + electromagnetic brake
Rated voltage
DC 24-240V
Suggested battery capacity
4pcs 150 Ah/12VDC
Tower type

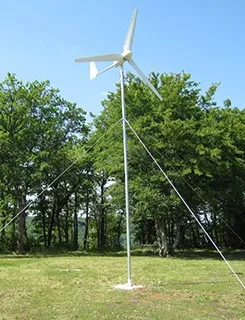

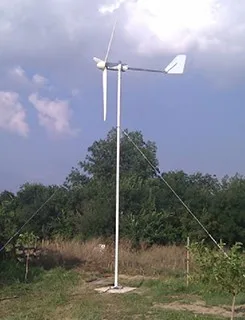

6m guy wire tower / 6m free standing tower
Working temperature
-40-60℃

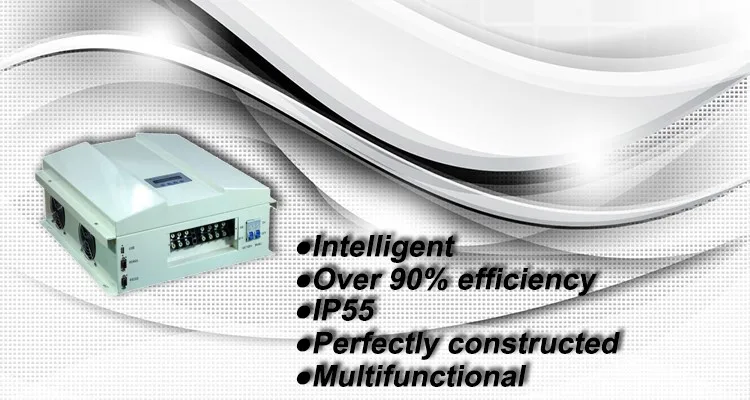

SAC-1KA Controller

Rated wind power
1000W
Solar power
600W
Rated battery voltage
DC 24V/48V
Charging mode
MPPT for wind, PWM for solar
Indication
LCD
Operating temperature
-20℃ to +55℃
Protection class
IP55
Dump-load type
Built-in
Dimension
45*23*49cm
N.W.
14kg
Data-transfer
RS232
Protection function
Solar cells and battery anti-reverse connection; Battery over-charge, over-discharge, over-charge recovery, over-discharge recovery, etc.; Load over-charge and over-discharge; Wind turbine brake automatically

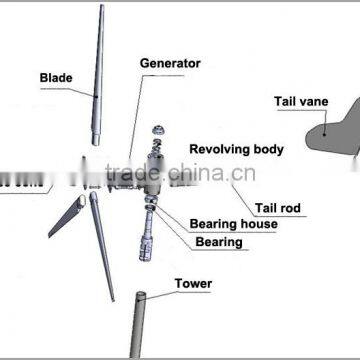

Product Details Show
Why Choose Us

About us

SAIAM is a manufacturer focused in small scale renewables. We have more than 10 years' experience in this industry and we have a professional team to offer you with the best products and service.

Equipment & technology

Following the trends of the renewable energy industry firmly, we lay our attention on updating our production facilities and technics to date, in order to produce the most favorable products of the time.

Service

Put forward your queries to our expert sales team, and you will get the satisfying answers within 24 days. Also, our abundant experience guarantees we assist you complete orders fluently always!

Product Processing

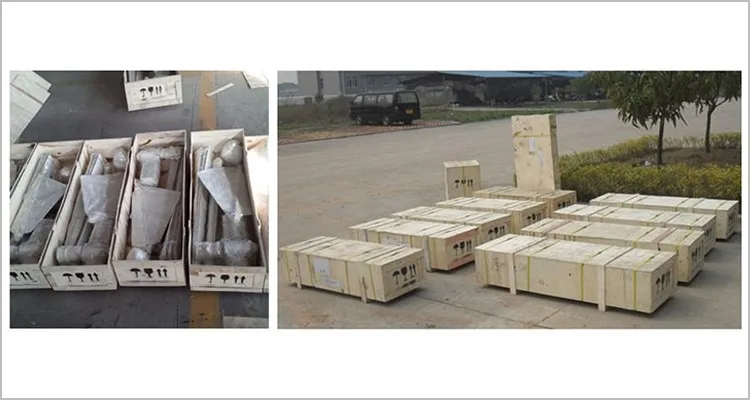

Product Packing

SA-1KW + SAC-1KA Packing

Packing type
1 plywood case + 1 carton
Package dimension
142*52*37cm, 51*25*55cm
Volume
0.343m³
Gross weight
88kg
Loadability
81sets/20'GP
