Specifications
2000W 3 Blades Horizontal Axis Wind Turbine-Excellent power output
-NSK sealed bearing
-Anti-corrosion material
-Maintenanc

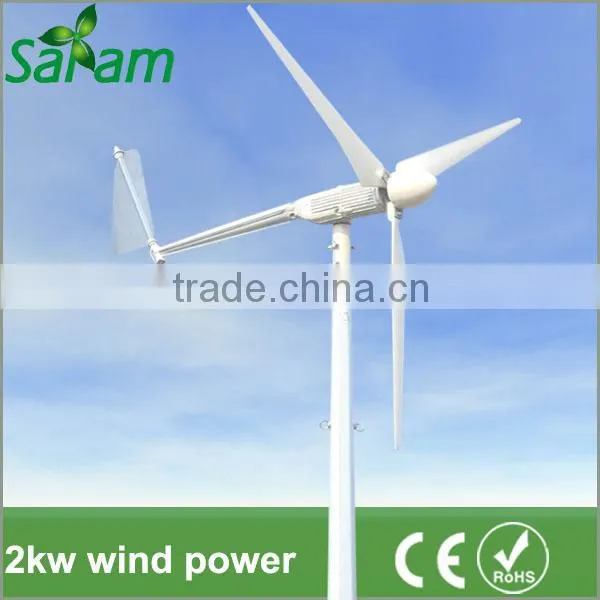

2000W 3 Blades Horizontal Axis Wind Turbine
Introduction
Use 2000W 3 Blades Horizontal Axis Wind Turbine to generate electricity and charge into storage battery group. Through the multi-voltages power supply system, the electricity can be changed into DC and AC used for illumination, home appliances, communication devices and electric tools.
Feature
Specification
| Performance | |
| Rated power | 2000W @11m/s |
| Peak power | 3000W |
| Start-up wind speed | 3m/s |
| Working wind speed | 3.5-25m/s |
| Survival wind speed | 40m/s |
| Rotor | |
| Rotor diameter | 3.2m |
| Swept area | 8.04m² |
| Blade | 3pcs reinforced fiber glass |
| Blade length | 154cm |
| Shell material | precision steel |
| Rated RPM | 380 |
| Weight | 75KG |
| Others | |
| Generator type | 3-phase AC PM, gearless |
| Speed regulation & protection | yawing + electromagnetic brake |
| Controller rated voltage | DC 48-300V |
| Suggested battery capacity | 4pcs 200AH/12VDC |
| Suggested tower |
6-12m guyed cable/
7-15m free standing
|
| Working temperature | -40-60°c |
| Power curve | |
| |
2.On grid wind power system
Deatils
Packaging & Shipping
Packaging details
- Each 2000W 3 Blades Horizontal Wind Turbine was packed into one plywood cases.
- Packaging dimension:162cmx52cmx37cm.
- N.W/G.W : 75kg/85kgs
Shipping method
Sample order is acceptable and recommended to send via LCL sea shipment or air shipment. Please contact our sales to get the detail shipment suggestion.
Q1: Is the wind turbine price listed above include the charge controller and others? If not,where I can purchase the controller and inverter?
A: The listed price is just for wind turbine only (generator + blades), no including controller, inverter and other parts. Please contact our sales for the controller, inverter and other system parts for on grid and off grid application.
Q2: What is the working voltage of your HAWTs for my battery bank or grid utility?
A: Please find our recommended working voltage as below:
SA-1KW --- 24V/48V (off grid) / 220V (on grid)
SA-2KW --- 48V/96V (off grid) / 220V (on grid)
SA-3KW --- 48V/96V/120V (off grid) / 220V (on grid)
SA-5KW --- 96V/120V/240V (off grid) / 220V (on grid)
SA-10KW --- 120V/240V/360V (off grid) / 380V (on grid)
Q3: What thickness of pole would we use for your horizontal wind turbine and what would be the height approximately of the section that we would add on to your unit?
A: We recommend to use 3mm-5mm thickness, 6-12m height guyed cable tower or 5mm-8mm thickness, 6-15m height free standing tower for our HAWT 1KW-10KW. Please contact our sales to get more tower information.
Q4: How is your HAWTs to realize the security protection during heavy winds?
A: There are multi security protection to ensure our HAWTs speed regulation and protection during high wind: yawing + electromagnetic brake (by controller) + manual brake (available on HAWT 5KW and 10KW models
