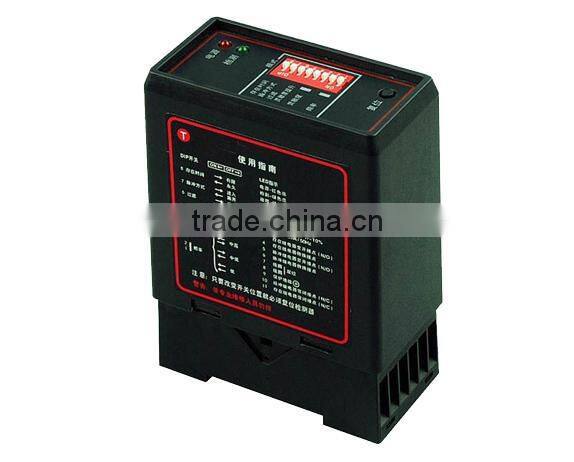

Protable Single Channel Smart Parking Inductive Loop Vehicle Detector
- Shenzhen
You May Like
-
Parking Gate and Automatoc Gate Double Channel Vehicle Loop Detector
-
HSY-W5000V Time Attendance RFID Water-Proof Guard Tour Security Control System
-
HSY-5000E 125khz RFID LCD Guard Tour System
-
HSY-W5000V RFID Water-Proof Guard Tour System
-
LCD Display 125khz Rfid Guard Tour System
-
HSY-5000E RFID Guard Tour System With LCD Display
Product Details
| Place of Origin | Guangdong, China | Brand Name | HSY | |
| Model Number | HYS-C90 |
Product Description
Single parking inductive loop vehicle detector
Introduction
1. Loop detectors are used wherever vehicles have to be detected.
Like monitoring and safe guarding access ways for counting vehicles.
The output signal can be used for controlling door and gate drive mechanisms, road barriers,
controlling traffic light systems in car parks or activating card dispensers in car parks.
2. The Product is a channel inductive loop detectors.
The principle is based on a change in the inductance within the loop which is caused by the
metallic components of passing vehicles.
The changes are picked up and evaluated by a microprocessor.
Ease of use due to the automatic calibration when the operating voltage is applied.
Features
*. Compatible with parking management system
*. Easy installation and operating
*. High temperature stability, used in kinds of environment
*. Environment drifting compensate automatically
*. Multilevel lightning protection
*. With function fo sensing loop malfunction automatically (disconnection or cutting-out)
*. Cooperate with barrier gate to realize vehicle anti-hit and automatic close function
*. Detect the vehicles driving direction with two loops
*. Best service and factory price and fast shipping
Single Loop detector specifications
| Model | HSY-C90 |
| Power supply | 220VAC,110VAC,24V/DC,12VDC/AC( Optional and details as sticker on products) |
| Rated power | 4.5W |
| Output Mode | Relay output |
| Frequency range | 20kHz to 170kHz |
| Reaction time | 10ms |
| Shell | PC and ABS engineering plastics |
| Installation | DIN lead rail |
| Operation temperature | -30 to 70℃ |
| Relative humidity | ≤95% RH |

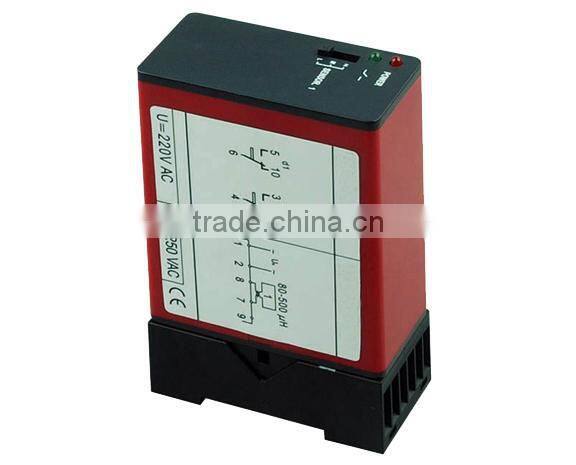

Single Loop Detector View

More parking system products show:

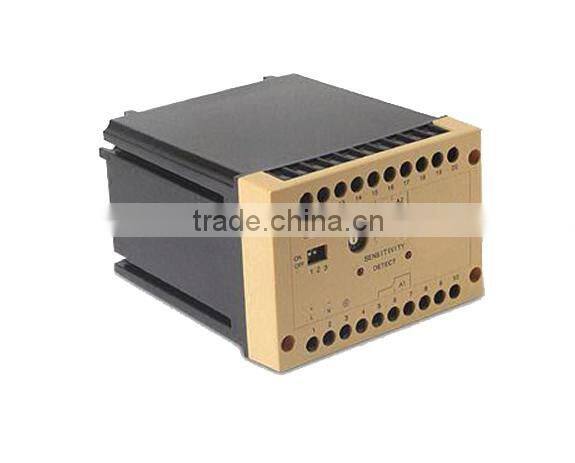

HSY-C88 Double loop detector

HSY-C89 Single loop detector

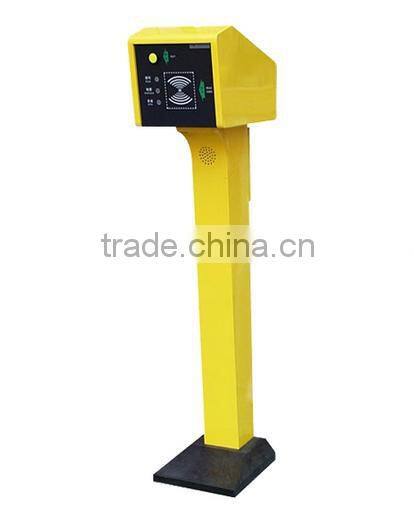

HSY-CP501 Parking management system

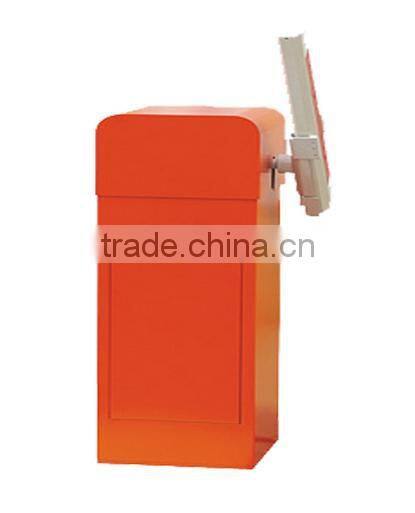

HSY-CP510 Barrier Gate

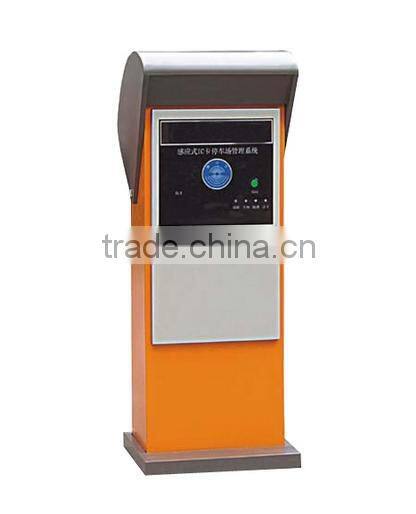

HSY-CP502 Parking management system
