RFID access controller 4 door with wiegand and TCP/IP port

  HSY-04B RFID access controller 4 door with wiegand and TCP/IP port


These Access Control Panel provide the solution for powerful combinations of access control and alarm monitoring within off-line networks. The user-friendly Access software programs the system within a few minutes, from a non-dedicated PC.

Access Software provides numerous access control and alarm monitoring features: expiry date for clubs, automatic activation, time zones, supervision, anti-passback, activity reports... Each alarm input is programmable: operating mode (NO or NC), time zones, local reflex (activation of outputs according to input status). Specific alarms are triggered according to the number of unsuccessful attempts, the time limit for door closing (door alarm), the duress code...Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed. Each controller works independently and keeps its own database.

HSY-01B is now capable to handle 1 door / 2 readers.

HSY-02B is now capable to handle 2 doors / 4 readers.

HSY-04B is now capable to handle 4 doors / 4 readers and 4 buttons.

RFID access controller 4 door Specification:

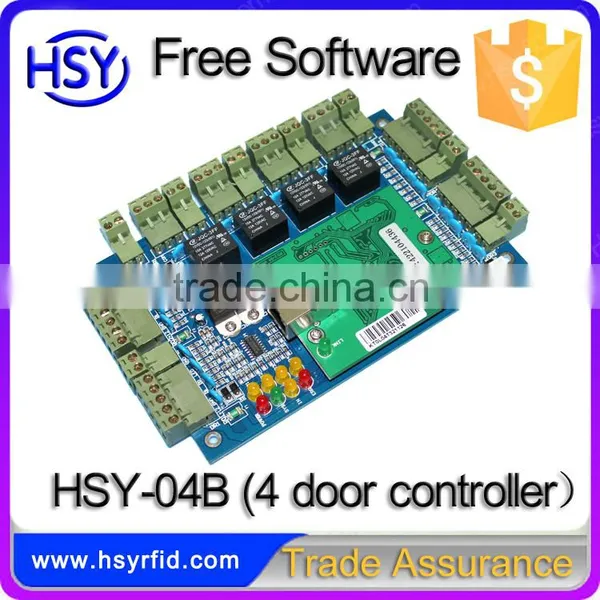

RFID access controller 4 door photos:

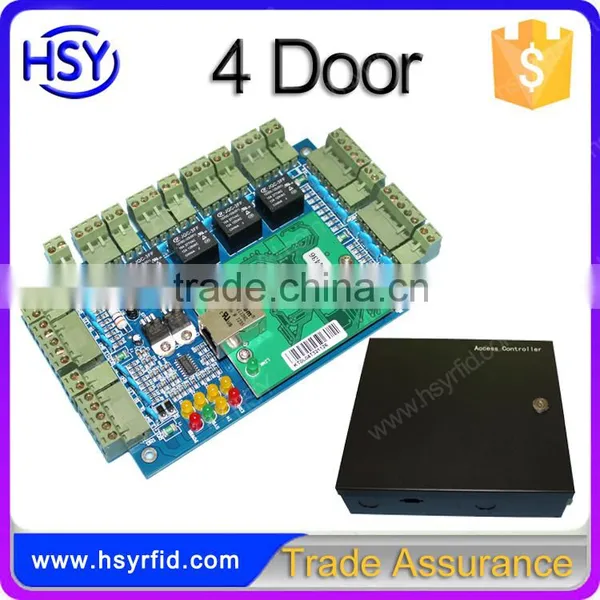

Optional metal case power supply:

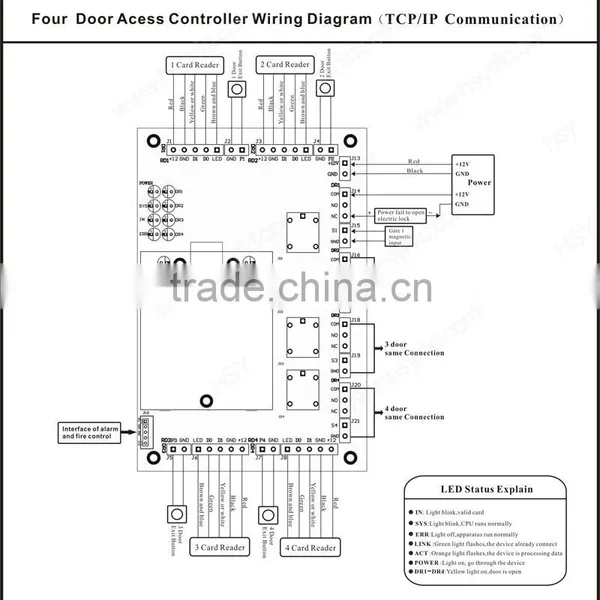

Wire diagram:

Attention:

1. Wiring standard:

      Even the connection distance is very short, is must be implemented according to the following requirement

2. 220V AC power cable:

      Three- wire power supply,the cross-sectional area 1.0  square or more.It's required that power supply must be grounded to prevent from power interference

3. The line of electric lock to controller:

    It's recommended to use two-wire power line,the cross-sectional aera 1.0  square or more. if the distance over 50meter,it's considered to use thicker line or multiple paraller.

4. TCP/IP communication line: Network cable

5. The card reader, door sensor and button line:

       Can use network cable or others.

Software:

1. Login:

2. After login show windows:

3. Setting doors by software:

4. Records query:

5. More swipes:
