Home > Security & Protection > Access Control System > Access Controller > Wiegand Web Ethernet Tcp/ip 4 Door Access Controller

Wiegand Web Ethernet Tcp/ip 4 Door Access Controller

US$ 1 - 115.09 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

HSY

Model Number:

HSY-04B

Contact Supplier Request Quote Chat Now

Shenzhen HSY Security Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name HSY

Model Number HSY-04B

HSY-04B Wiegand web ethernet tcp/ip 4 door access controller

Product Description

TCP/OP access controller Introduction:

These Access Control Panel provide the solution for powerful combinations of access control and alarm monitoring within off-line networks. The user-friendly Access software programs the system within a few minutes, from a non-dedicated PC.

Access Software provides numerous access control and alarm monitoring features: expiry date for clubs, automatic activation, time zones, supervision, anti-passback, activity reports... Each alarm input is programmable: operating mode (NO or NC), time zones, local reflex (activation of outputs according to input status). Specific alarms are triggered according to the number of unsuccessful attempts, the time limit for door closing (door alarm), the duress code...Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed. Each controller works independently and keeps its own database.

HSY-01B is now capable to handle 1 door / 2 readers.

HSY-02B is now capable to handle 2 doors / 4 readers.

HSY-04B is now capable to handle 4 doors / 4 readers and 4 buttons.

4 door access controller Spec:

Product Parameters:
PCB board size:	160mm * 106mm
Case Size:	273mm * 228mm * 65mm
Power Supply:	12VDC 3-7A
Circuit board power consumption:	less than 100mA
Reader Input Format:	Wiegand26 (compatible with all readers under the agreement)
Communication:	TCP/IP 10M/100M
self adaptive Function Description:	can control four doors, enter via card swiping and exit via card swipping or button.
Connect Reader	4PCS
Can control the gate output relay:	2pair
Open delay time:	1-600 seconds adjustable
Maximum number of connections:	No limite Operating temperature: -40 to 70 degrees Celsius
Run Humidity:	10-90% RH, non-condensing
User registration card capacity:	20,000 cards Permissions
Signal output communication format and baud rate:	Support LAN, Intranet, fix Ipinternet WAN.
Power failure protection measures:	high-speed flash memory design, and never lose data
Max distance between reader to the controller:	100 meters, suggest within 80 meters
Max distance for the bus line:	Depends on network cover area.
Max distance between controller to the PC:	No limite

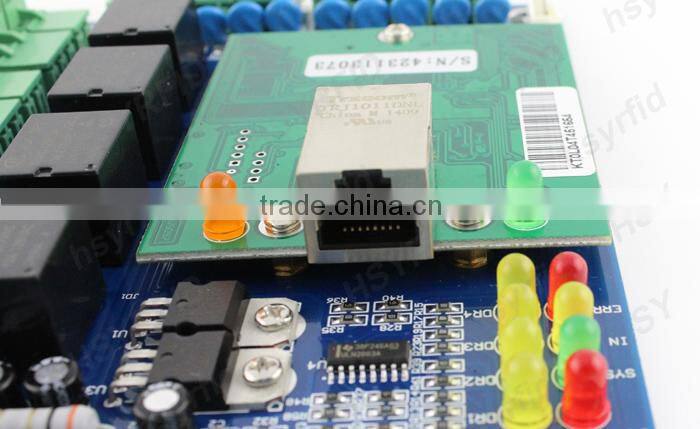

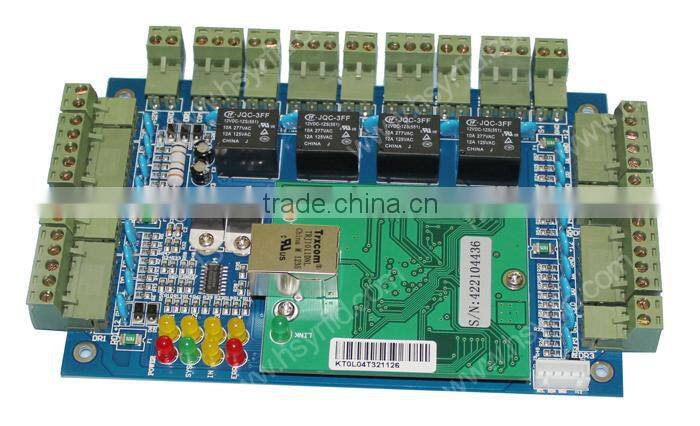

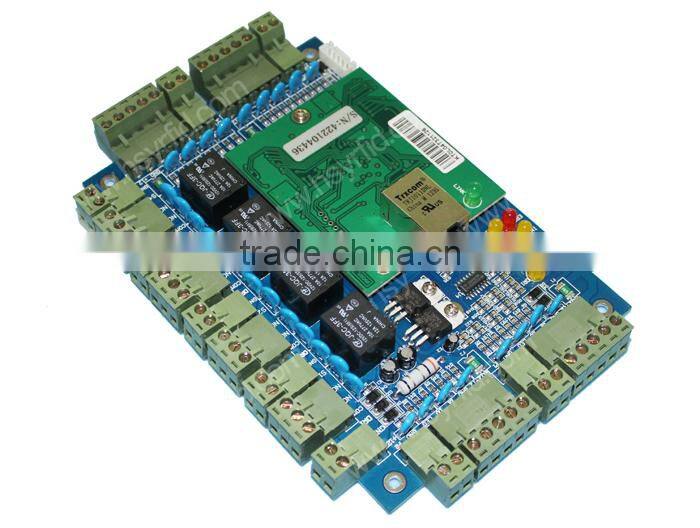

4 door access controller photos:

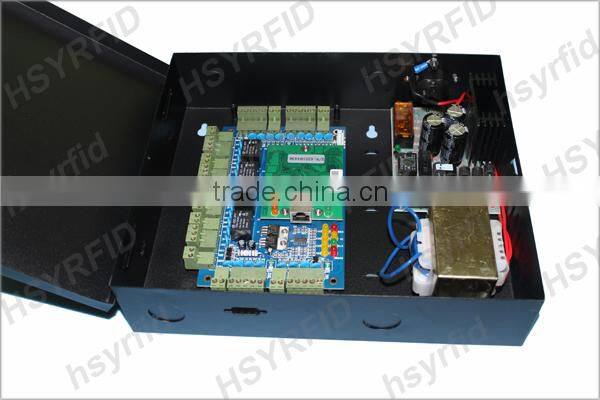

Optional metal case power supply:

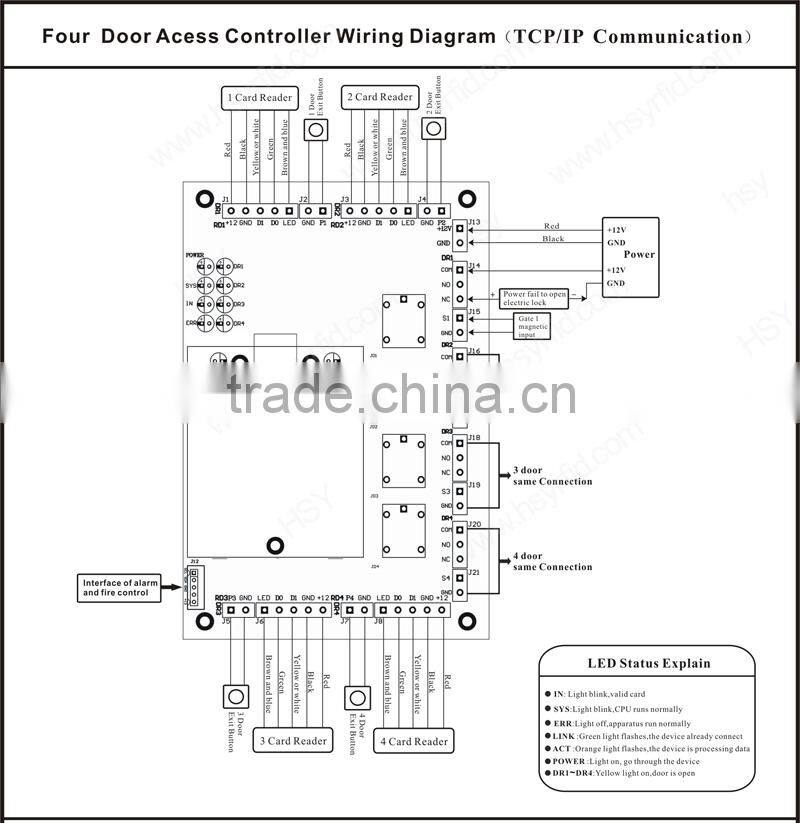

Wire diagram:

Attention:

1. Wiring standard:

Even the connection distance is very short, is must be implemented according to the following requirement

2. 220V AC power cable:

Three- wire power supply,the cross-sectional area 1.0 square or more.It's required that power supply must be grounded to prevent from power interference

3. The line of electric lock to controller:

It's recommended to use two-wire power line,the cross-sectional aera 1.0 square or more. if the distance over 50meter,it's considered to use thicker line or multiple paraller.

4. TCP/IP communication line: Network cable

5. The card reader, door sensor and button line:

Can use network cable or others.

Software:

1. Login:

2. After login show windows:

3. Setting doors by software:

4. Records query:

5. More swipes:

Packaging & Shipping

1pcs per box,control board 0.5kgs only,
together with metal case power supply around 4kgs per unit.

Shipping :
