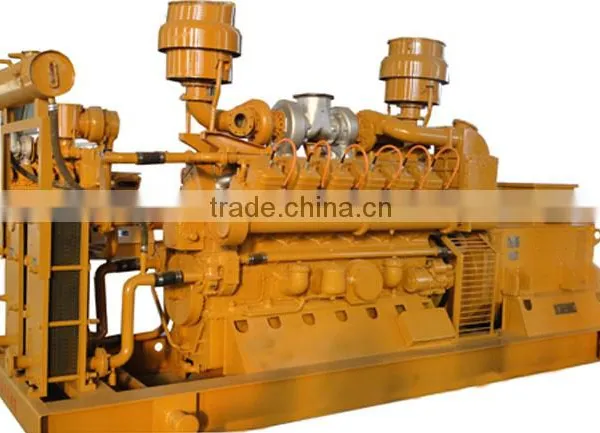

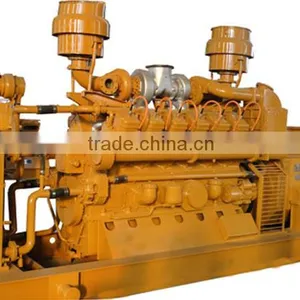

Help CenterCoal Bed Gas GENERATOR SET
Related Products
Coal bed gas is a kind of burnable gas without any color, taste and smell, it will explode if the concentration ranges at 5%-16%, and if oxygen larger than 12%, it will also explode when meets the naked light or temperature between 650 ℃ to 750 ℃ ,explosive power will be biggest if concertration is 9.5%, it was not explode if concertration is larger than 16%, it was generated by coal or rotten plants and exist in two states: absorbing and dissociate, generation with coal bed gas do not only keep the mine safe but also remit the situation of lacking power .
Technical Parameters of Coal-bed Gas Gen-set
Rated Voltage |
400V/230V |
Heat Consumption |
≤11.38mj/kwh |
|
Phase |
3 phase,4 wire |
Pressure |
3-20kpa |
|
Rated Frequency |
50Hz |
Intake Mode |
natural intake |
|
Power Factor |
0.8 |
Sparking Mode |
sparking pl |
|
Voltage Regulating Range |
95-105% |
Voltage Regulation Mode |
automatic |
|
Voltage Steady State |
≤±2% |
Speed Regulation Mode |
Electronic speed regulate |
|
Voltage Transient State |
≤±10% |
Lubricating Mode |
pressure and splash |
|
Voltage Settling |
≤1s |
Cooling Mode |
circulating water cooling |
|
Voltage Volatility |
≤±0.5% |
Starting Mode |
24V electric motor |
|
Frequency Steady State Regulation Rate |
≤0.5% |
Overhaul Time |
≥30000h |
|
Frequency Transient State Regulation Rate |
≤±10% |
Noise |
≤105db(A) |
|
Oil Consumption |
≤±1.6g/kwh |
Exhaust temperature |
≤650℃ |
COAL BED GAS GENERATOR SET
Gen-set Model |
Engine model |
Alternator Brand |
Rated Power |
Rated Speed |
Cylinder No. |
Bore*Stroke |
Displacement |
Size (mm) |
Net Weight |
LHCBG500-1 |
G12V190ZLDW-1 |
Siemens |
500/625KW/KVA |
1000/1200RPM |
12V |
190mm/210mm |
71.4L |
6200x2100x2800 |
12500KG |
LHCBG500-K1 |
G12V190ZLDW-1 |
Siemens |
500/625KW/KVA |
1000/1200RPM |
12V |
190mm/210mm |
71.4L |
6200x2100x2800 |
12500KG |
LHCBG500-2 |
G12V190ZLDW-2 |
Siemens |
500/625KW/KVA |
1000/1200RPM |
12V |
190mm/210mm |
71.4L |
6200x2100x2800 |
12500KG |
LHCBG500-K2 |
G12V190ZLDW-2 |
Siemens |
500/625KW/KVA |
1000/1200RPM |
12V |
190mm/210mm |
71.4L |
6200x2100x2800 |
12500KG |
LHCBG600-1 |
G12V190ZLDW-3 |
Siemens |
600/750KW/KVA |
1000/1200RPM |
12V |
190mm/210mm |
71.4L |
6200x2100x2800 |
12500KG |
LHCBG600-K1 |
G12V190ZLDW-3 |
Siemens |
600/750KW/KVA |
1000/1200RPM |
12V |
190mm/210mm |
71.4L |
6200x2100x2800 |
12500KG |
LHCBG600-2 |
G12V190ZLDW-3 |
Siemens |
600/750KW/KVA |
1000/1200RPM |
12V |
190mm/210mm |
71.4L |
6200x2100x2800 |
12500KG |
LHCBG600-K2 |
G12V190ZLDW-3 |
Siemens |
600/750KW/KVA |
1000/1200RPM |
12V |
190mm/210mm |
71.4L |
6200x2100x2800 |
12500KG |
