Home > Products > Generators > COKE OVEN GAS GENERATOR SET

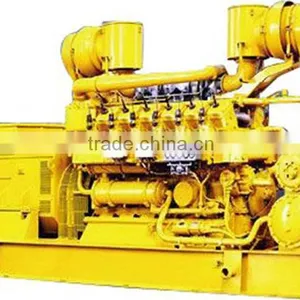

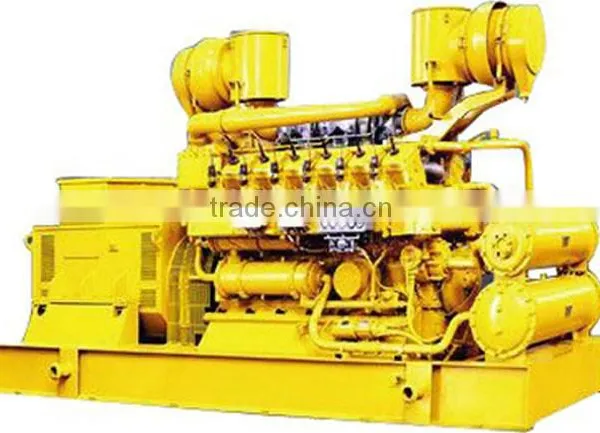

COKE OVEN GAS GENERATOR SET
- 100 Set / Sets per Month
- QINGDAO
Product Details
Place of Origin: | Shandong, China | Brand Name: | LH | Model Number: | LHCG500 |
Output Type: | DC | Speed: | 1000/1200RPM | Frequency: | 50/60HZ |
Rated Power: | 500KW | Rated Voltage: | 400/230V | Rated Current: | Depend |
Product Description
There are many methods to produce coal gas, such as coke oven gas, coal producer gas, semi-coke gas, water coal gas, oil coal gas, blast-furnace and cracking coal gas etc. The main compositions are CO, H2, N3, CO2and so on. The producing method of coke oven gas is as below: raw coal is crushed and washed, then put them into furnace with different coal mixed together in different ratio, after that the coal in a limited conditions which is been heated and disintegrated in a isolate air condition.it will produce coal gas and coal tar with high temperature. After through conventional cooling, desulfurization, detar and dehydration treatments, coke oven gas will generate power with internal combustion generator. The power will be as self-provided power for coke oven factory and can be connected to national grid, which avoid coal gas emptying.
Technical Parameters of Coal Gas Gen-set
Rated Voltage | 400V/230V | Heat Consumption | ≤11.38mj/kwh | |
Phase | 3 phase,4 wire | Pressure | 3-20kpa | |
Rated Frequency | 50Hz | Intake Mode | natural intake | |
Power Factor | 0.8 | Sparking Mode | sparking pl | |
Voltage Regulating Range | 95-105% | Voltage Regulation Mode | automatic | |
Voltage Steady State | ≤±2% | Speed Regulation Mode | Electronic speed regulate | |
Voltage Transient State | ≤±10% | Lubricating Mode | pressure and splash | |
Voltage Settling | ≤1s | Cooling Mode | circulating water cooling | |
Voltage Volatility | ≤±0.5% | Starting Mode | 24V electric motor | |
Frequency Steady State Regulation Rate | ≤0.5% | Overhaul Time | ≥30000h | |
Frequency Transient State Regulation Rate | ≤±10% | Noise | ≤105db(A) | |
Oil Consumption | ≤±1.0g/kwh | Exhaust temperature | ≤650℃ |
Small-medium power series coal gas gen-set
Gen-set Model | Engine model | Alternator Brand | Rated Power | Rated Speed | Cynlinder No. | Bore*Stroke | Displacement | Size (mm) | Net Weight |
LHCG10 | LH2100 | Stanford | 10KW | 1500/1800RPM | 2 | 115mm | 2.24L | 1450x700x1100 | 700kg |
LHCG20 | LH4100 | Stanford | 20KW | 1500/1800RPM | 4 | 115mm | 3.61L | 1650x720x1250 | 750kg |
LHCG50 | LH6105 | Stanford | 50KW | 1500/1800RPM | 6 | 125mm | 6.49L | 2300x1000x1480 | 1350kg |
LHCG60 | LH4135 | Stanford | 60KW | 1500/1800RPM | 4 | 150mm | 8.6L | 2300x1000x1450 | 1450kg |
LHCG70 | LH6135 | Stanford | 70KW | 1500/1800RPM | 6 | 150mm | 12.9L | 2850x1100x1700 | 1800kg |
LHCG80 | LH6135 | Marathon | 80KW | 1500/1800RPM | 6 | 150mm | 12.9L | 2850x1100x1700 | 1800kg |
LHCG90 | LH6135 | Marathon | 90KW | 1500/1800RPM | 6 | 150mm | 12.9L | 2850x1100x1750 | 1900kg |
LHCG140 | LH12V135 | Marathon | 140KW | 1500/1800RPM | 12 | 150mm | 25.8L | 3200x1350x1750 | 2900kg |
LHCG200 | LH12V135 | Engga | 200KW | 1500/1800RPM | 12 | 150mm | 25.8L | 3250x1450x2140 | 3200kg |
Technical Parameters Coal Gas Gen-set
Gen-set Model | Engine model | Alternator Brand | Rated Power | Rated Speed | Cylinder No. | Bore*Stroke | Displacement | Size(mm) | Net Weight |
LHCG300 | LH6190 | Siemens | 300KW | 1000/1200RPM | 6 | 210mm | 32L | 5300x1970x2170 | 8200kg |
LHCG400 | G12V190ZLDT | Leroy-somer | 400KW | 1000/1200RPM | 12 | 210mm | 71.4L | 6200x2100x2650 | 12000kg |
LHCG500 | G12V190ZLDT-2 | Leroy-somer | 500KW | 1000/1200RPM | 12 | 210mm | 71.4L | 6200x2100x2800 | 12500kg |
