HSY-L015 Cheap price 9V 2.4G RF Active Omni-directional Reader with RJ45 RS485 RS232 port
Features:
HSY-L015 RFID reader is 2.4G Omni-directional reader, suit for “non-directional identify” .
Applying in far distance, quick identification, meeting the special demand of identification, can identify, track and orientate more than 100 active tags simultaneity.
2.4G RF Active Omni-directional Reader Specification:
| Items | Parameter |
| Physical property | |
| Material | ABS |
| Size | 92*Φ110mm |
| Weight | 200g |
| Way to install | wall-mounted |
| 2.4G RF Feature | |
| Identify type | Omni-directional |
| Signal modulation mode | GFSK |
| Traffic rate | 1Mbit/s |
| Working frequency | 2440MHz |
| MAX receive sensitivity | -90dbm |
| Antenna Gain | 2dbi, dual polarization |
| Communication Interface | |
| RS232 | Baud rate: 115200bps, data bits: 8, stop bit: 1, check bit: N |
| RS485 | Baud bit; 19200bps, data bits; 8, stop bit: 1, check bit: N |
| RJ45(TCP/IP) | 10/100self-adaption |
| Power Supply Features | |
| Working current | 350mA |
| Working voltage | 9V DC |

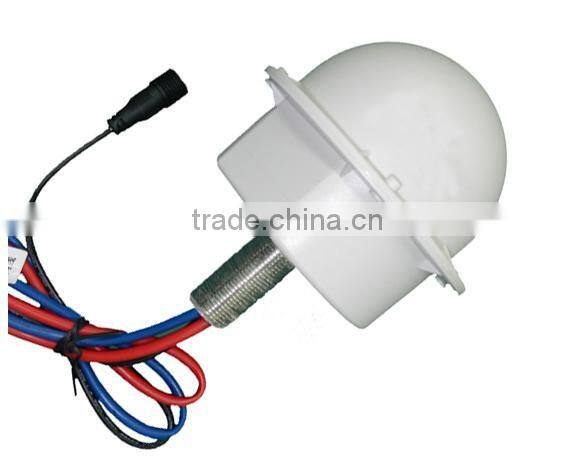

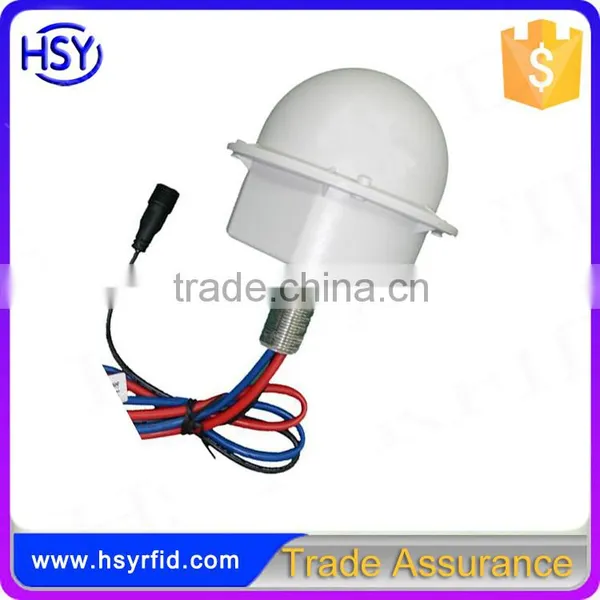

2.4G RF Active Omni-directional Reader shows:

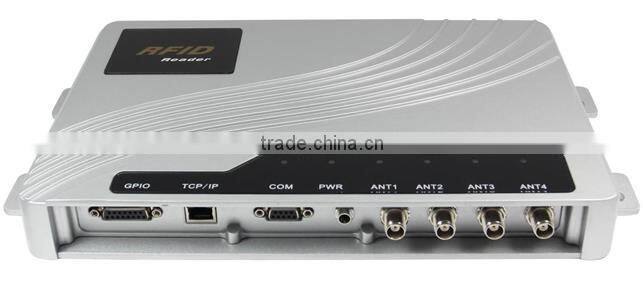

Other RFID Reader shows:
HSY-L012
HSY-L010
HSY-LF004
Application:
