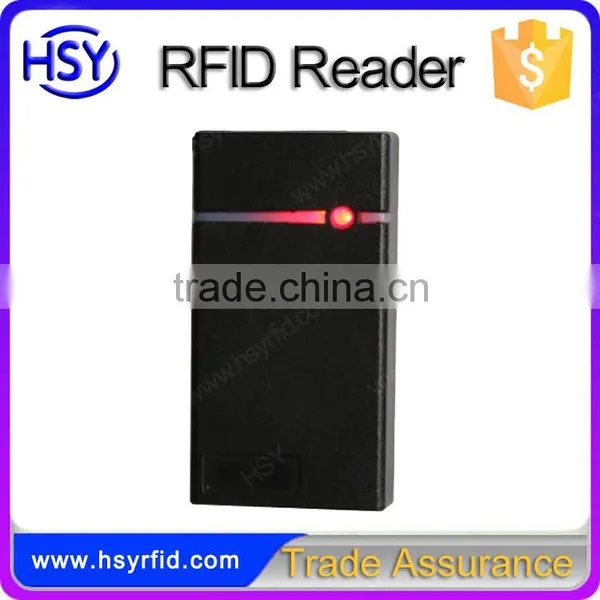

HSY-R127 China Factory Reliable Quality 13.56mhz Rfid Reader Module Wiegand 34

HSY-R127 China Factory Reliable Quality 13.56mhz Rfid Reader Module Wiegand 34 thumbnail-3

HSY-R127 China Factory Reliable Quality 13.56mhz Rfid Reader Module Wiegand 34 thumbnail-4

HSY-R127 China Factory Reliable Quality 13.56mhz Rfid Reader Module Wiegand 34 photo-1

HSY-R127 China Factory Reliable Quality 13.56mhz Rfid Reader Module Wiegand 34 photo-2

HSY-R127 China Factory Reliable Quality 13.56mhz Rfid Reader Module Wiegand 34 photo-3

HSY-R127 China Factory Reliable Quality 13.56mhz Rfid Reader Module Wiegand 34 photo-4

US$ 5.49 - 26.8 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

HSY

Model Number:

HSY-R127

Contact Supplier Request Quote Chat Now

Shenzhen HSY Security Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name HSY

Model Number HSY-R127

HSY-R127 China factory reliable quality 13.56mhz rfid reader module wiegand 34

Product Description

HSY-R127 Introduction:

RFID card reader is a standard Wiegand26 bit output format and an off-contact high performance reader. Its main use is as a supplementary reading device for the controller which has the wiegand interface. It characters with exquisite appearance, convenient installation and stable characteristics.

13.56mhz rfid reader module wiegand 34 Specification:

Model	HSY-R127
Output Interface	Standard Wiegand26, Optional wiegand34 or RS232
Operating Frequency	125KHz,13.56Mhz
Reader Card	EM Card, IC card
Transmitting Distance	WG<100M
Proximity Range	3-15cm
Power Supply	DC9~12V
Static Power Supply	50~70mA
Temperature	-20°C~60°C
Relative Humidity	10%-90%
Recognition Speed	<=5s
LED	Built-in LED (Double Color LED)
Buzzer	Built-in Loud Speaker
Color	Black or White
Material	ABS Case Material (Black Resin for Water-Proof Function)
Waterproof	IP65 Degree
Dimension	804316(mm)—HSY-R127
Dimension	1157618(mm)—HSY-127B
Package	100pcs per carton. Carton Size: 43.55623(cm)

13.56mhz rfid reader module wiegand 34 Views:

RS232 Connection is as follows:

Red Wire: Connecting Power Positive Side

Black Wire: Connecting Power Negative Side

Blue Wire: Connecting Feet 2 of the 9 PIN Serial Port. And Serial Port 5 should also connect Negative Power side.

Computer Setting

Computer Start – Programs – Accessories – Communications – Hyper Terminal. (First Choice: COM Port 1.)

Baud Rate: 9600.

Data Bit: 8.

Stop Bit: 1.

Parity check: No. OK.

Installation:

Using “+”type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Notice!!!

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply

2. When external Power is used, make sure sharing the power with Controller Box or using the same GND

3. The wire connects reader to controller, advise use 8 cores stranded twisted pair cable(among them, three strands are spare, if no need reader show illegal card s by sound and light, LED wire can not be used, data wire Data1 Data0 are twisted pair would be better, we suggest sectional area are 0.22 square millimeter at least. The length should not exceed 100meters.
