HSY-R124 China factory LED light em 125khz RFID card reader rs485
HSY-R124 Introduction:
card reader is a standard Wiegand 26bit or Wiegand 26bit output format and an off-contact high performance reader. Its main use is as a supplementary reading device for the controller which has the wiegand interface. It characters with exquisite appearance, convenient installation and stable characteritics.
125khz RFID card reader rs485 Specification:
| Model | HSY-R124 |
| Output Interface | Wiegand26/34 or RS232/485 |
| Operating Frequency | 125KHz or 13.56mhz |
| Reader Card | EM/IC Card; |
| Transmitting Distance | WG<100M,RS485<1200M |
| Proximity Range | 3-10cm |
| Power Supply | DC9~12V |
| Static Power Supply | 50~70mA |
| Temperature | -25º C to 75º C |
| Relative Humidity | 10%-90% |
| Recognition Speed | <=5s |
| LED | Built-in LED (Double Color LED) |
| Buzzer | Built-in Loud Speaker |
| Color | Black or white |
| Material | PVC Case Material (Black Resin for Water-Proof Function) |
| Dimension | 114*76*16(mm) |
| Package | 100pcs per carton. Carton Size: 43.5*56*23(cm) |
| Audiovisual indication | When a registered card is presented to the reader, the red LED flashes green and the beep sounds |

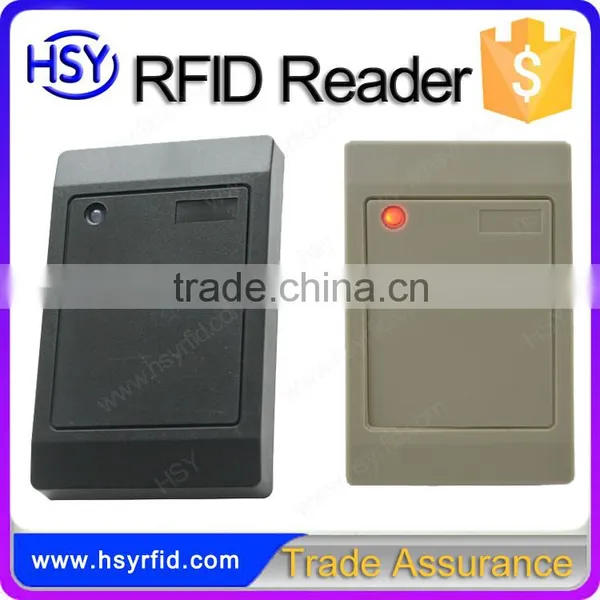

125khz RFID card reader rs485 Sample shows:

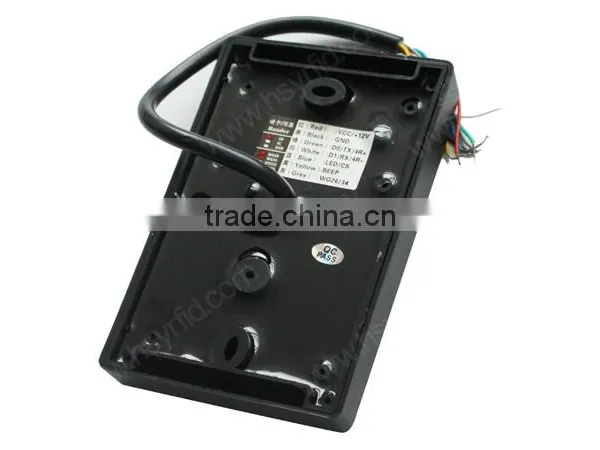

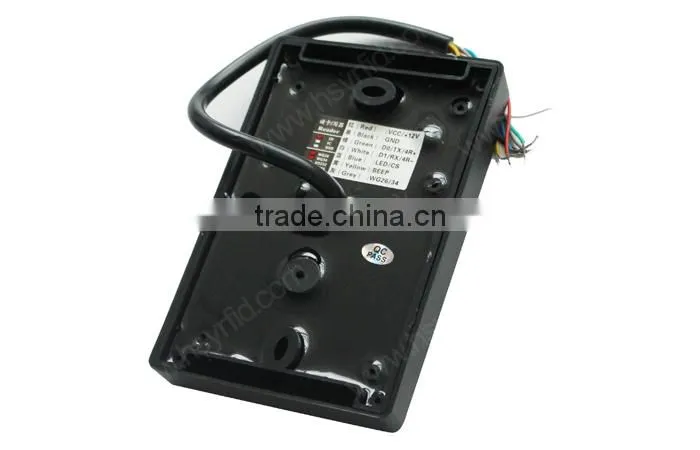

Wire connection:
RFID reader Package details:
Shipping :
1. Fast way: By express courer, such as: DHL, Fedex, UPS, TNT, EMS... take about 3-7 days.
2. Cheap way (small package): By China post, should take about 15-70 days.
3. Cheap way: By Air or by Sea shipment.
1. By T/T, Paypal, Westerm union, Escrow in advance.
Product warranty :
1~2 years warranty from the date of delivery, A lifetime technical support
