125khz 13.56mhz rfid reader access control system

 125khz 13.56mhz rfid reader access control system

Advantage:

1. 16 years experience professional in RFID products

2. OEM/ODM orders are welcome;

3. Professional techniques supports;

4. Best quality,Best price,Best Service.

card reader is a standard Wiegand 26bit or Wiegand 26bit output format and an off-contact high performance reader. Its main use is as a supplementary reading device for the controller which has the wiegand interface. It characters with exquisite appearance, convenient installation and stable characteritics.

125khz 13.56mhz rfid reader Specification:

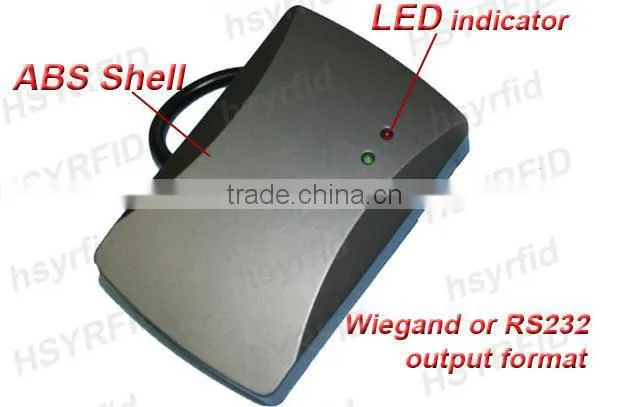

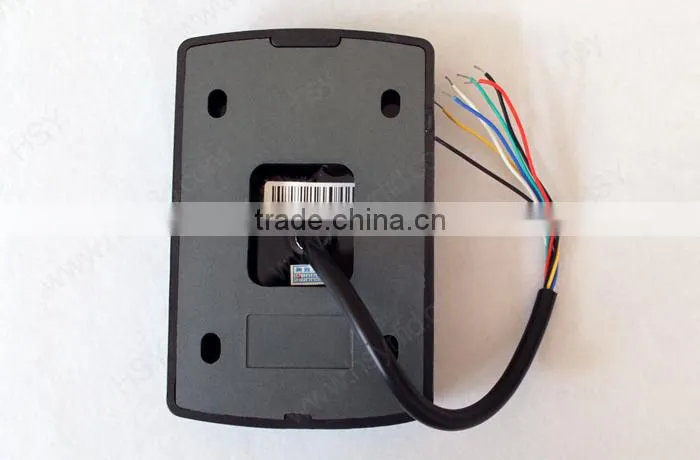

125khz 13.56mhz rfid reader Sample shows:

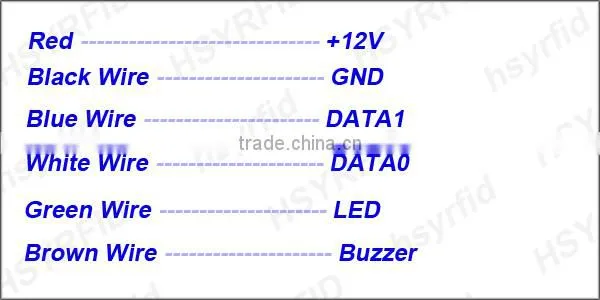

125khz 13.56mhz rfid reader wiring diagram:

Installation:

Using “+”type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Notice!!!

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply

2. When external Power is used, make sure sharing the power with Controller Box or using the same GND

3. The wire connects reader to controller, advise use 8 cores stranded twisted pair cable(among them, three strands are spare, if no need reader show illegal card s by sound and light, LED wire can not be used, data wire Data1 Data0 are twisted pair would be better, we suggest sectional area are 0.22 square millimeter at least. The length should not exceed 100meters.
