Product Details
Place of Origin: | Guangdong, China | Brand Name: | HSY | Model Number: | HSY-P104 |
Product Description
HSY-P104 RFID proximity wiegand26 door access control reader with waterproof smart card machine
Introduction:
RFID card reader is a standard Wiegand 26bit or Wiegand 26bit output format and an off-contact high performance reader. Its main use is as a supplementary reading device for the controller which has the wiegand interface. It characters with exquisite appearance, convenient installation and stable characteritics.
Door access control reader Spec:
Model | HSY-P104 |
Output Interface | Wiegand26/34,Optional RS232/RS485 |
Operating Frequency | 125KHz,13.56mhz |
Reader Card | EM,Mifare Card; Card or PIN Opening Door Mode |
Transmitting Distance | WG≤100M,RS485≤1200M |
Proximity Range | 3-15cm |
Power Supply | DC9~12V |
Static Power Supply | 50~70mA |
Temperature | -25º C to 75º C |
Relative Humidity | 10%-90% |
Recognition Speed | <=5s |
LED | Built-in LED (Double Color LED) |
Buzzer | Built-in Loud Speaker |
Color | Black |
Material | PVC Case Material (Black Resin for Water-Proof Function),With Waterproof function |
Dimension | 86*86*18(mm) |
Package | 100pcs per carton. Carton Size: 43.5*56*23(cm) |
Audiovisual indication | When a registered card is presented to the reader, the red LED flashes green and the beep s |

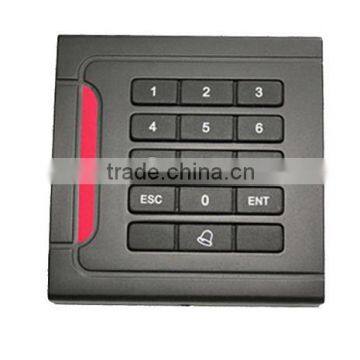

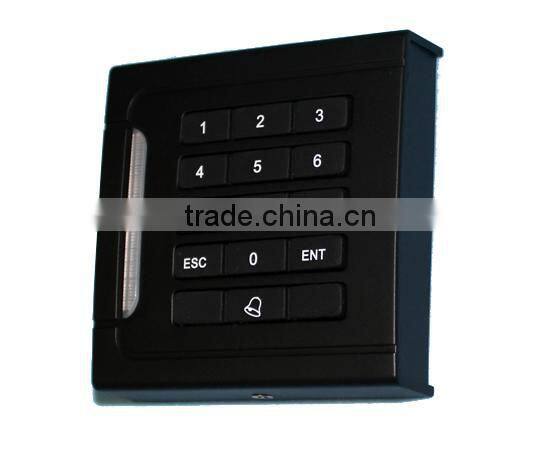

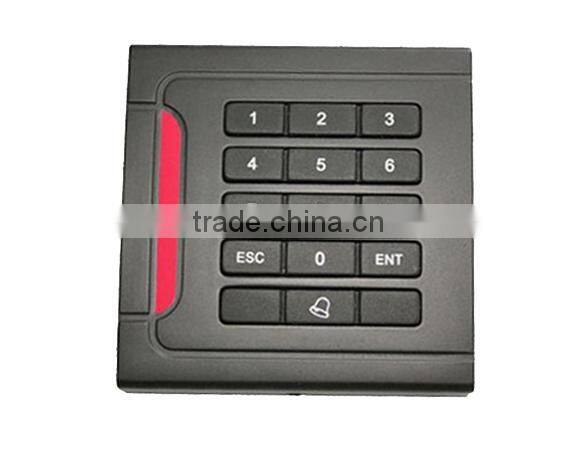

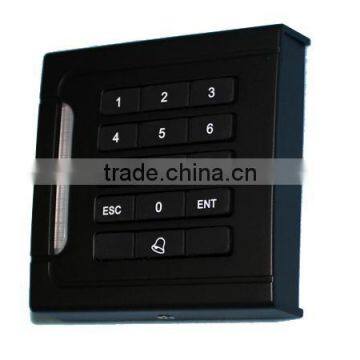

Door access control reader Views:

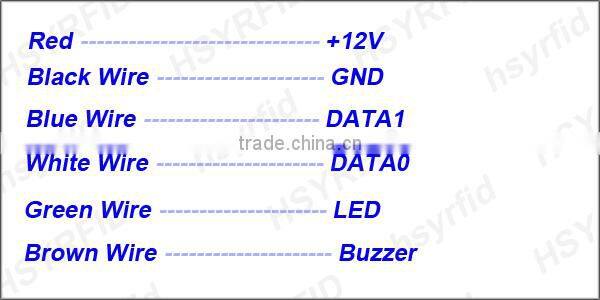

Wiring diagram:
Installation:
Using “+”type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.
Notice:
1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
3. The wire connects reader to controller, advise use 8 cores stranded twisted pair cable(among them, three strands are spare, if no need reader show illegal card s by sound and light, LED wire can not be used, data wire Data1 Data0 are twisted pair would be better, we suggest sectional area are 0.22 square millimeter at least. The length should not exceed 100meters.
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door service;
Company & Certification :
FAQ:
Q1: What is the Warranty for products ?
A1: We have Professional technical to support, And Our Warranty:1 years' product warranty, A lifetime technical support .
Q2: How to make payment ?
A2: We can accept transfer by T/T, Paypal, Westerm union and Escrow.
Q3: What is MOQ and price ?
A4: We support sample and bulk order, Will offer best price based on your order.
