HSY-L08Y Long range communication long distance 125khz rfid card reader
- 4000000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card
-
Reader System Panel Card Keypad Gate Door Access Control Rfid Reader
-
13.56mhz NFC RFID Waterproof Rs232 RFID Reader HF Card Reader With Rs232 Port
-
Battery powered 433mhz wireless rfid proximity card reader access control system
-
handheld 125KHz ID Card RFID Copier/Writer/Reader/Duplicator
-
10.1 inch ture flat all-in-one tablet pc RFID reader rk3288 android panel pc with capacitive touch lcd screen
-
UHF RFID Reader Smart 340 4-port retail system Impinj R2000 long range rfid scanner Smart UHF RFID Reader
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | HSY | Model Number: | HSY-L08Y |
Product Description
HSY-L08Y Long range communication long distance 125khz rfid card reader
Advantage:
1.16 years experience professional in RFID products
2. OEM/ODM orders are welcome;
3. Professional techniques supports;
4. Best quality,Best price,Best Service.
Introduction:
HSY-L08Y with high performance,without software, lower price long range 125KHZ RFID reader, reader distance up to 100cm,widely used for RFID Radio Frequency Identification system and project, such as Automated parking management system,Personal identification, Access controller, Production Access control, etc.
Long distance 125khz rfid card reader Specification:
| Parameters: | |
| Model No. | HSY-L08Y |
| Standard interface | Standard with Wiegand 26bits or Wiegand34bits interface. |
| Optional interface | RS232 or RS485 communication is optional. |
| Working frequency | 125khz |
| Response Speed | Less than 0.2 second |
| Reading distance | 70cm-100cm Proximity Range dependence on Cards Quality |
| Reading card type | Support EM 125Khz ID card or compatible with it |
| Ambient Temperature | -25 degree to +75 degree |
| Ambient Humidity | 10%-90% |
| Built-in Antenna | Yes |
| Built-in LED | (Double Color LED) |
| Buzzer | Built-in Loud Speaker |
| Working Voltage | DC 12V, 70mA Working Current |
| Communication Distance | 100 CM |
| Real Time Data Transfer | Yes |
| Color | Black Color |
| Material | ABS Case,IP65 waterproof degree |
| Product Size: | 260*260*35 (mm) |
| Package | 1pcs per box,10pcs per carton |

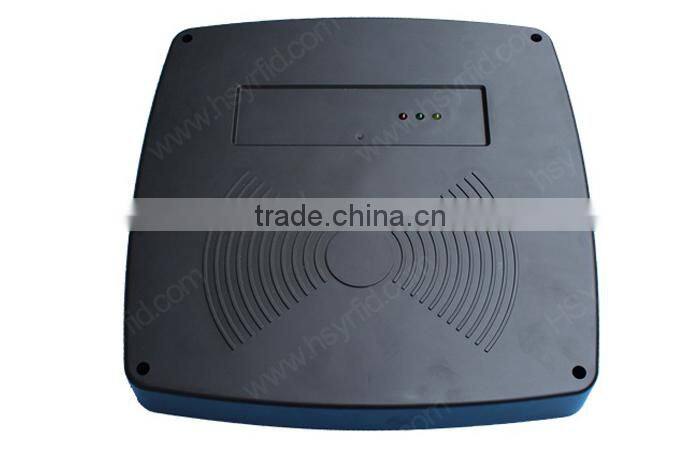

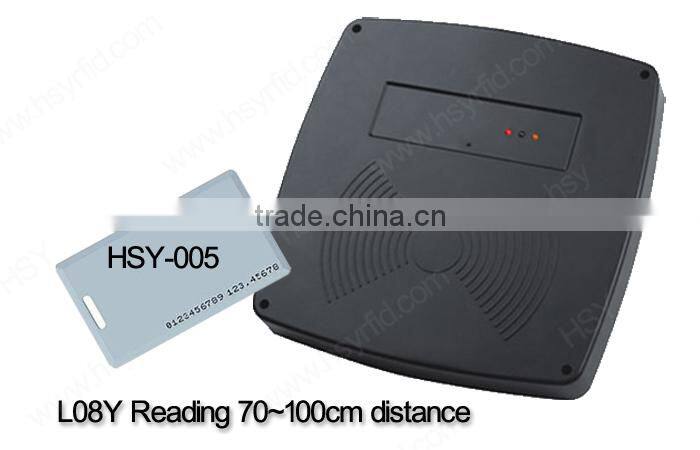

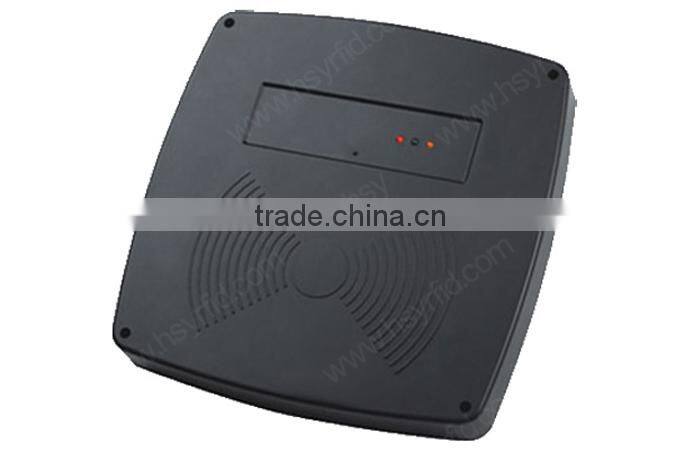

Long distance 125khz rfid card reader Sample shows:

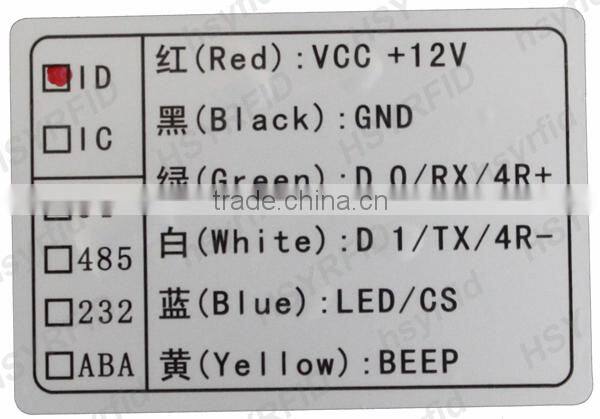

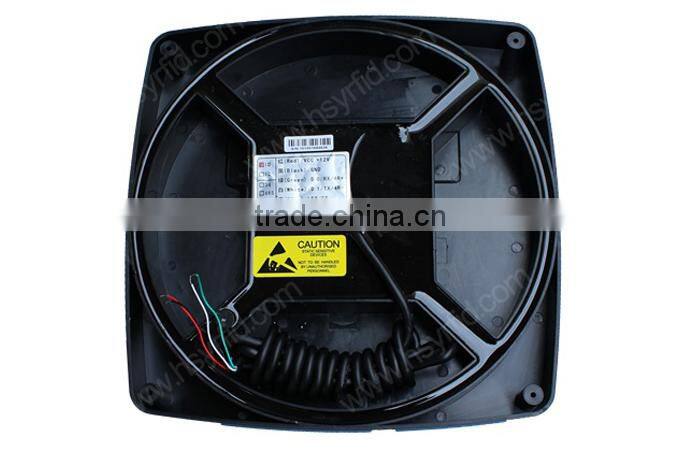

Long distance 125khz rfid card reader Wire connection:
Packaging:
1pcs per box, 10pcs per carton.
1Carton Gross weight around 21kgs.
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door service;
2. By Air or by Sea for bulk goods, for FCL; Airport/ Port receiving;
3. Support Customers specifying freight forwarders or selected shipping methods!
4. Delivery Time: 2~7 working days. Accurate deliver based on your quantity .
Company & Certification :
Why choose us ?
FAQ:
Q1: What is the Warranty for products ?
A1: Our warranty : 1 years' product warranty, A lifetime technical support .
Q2: How to make payment ?
A2: Payment terms: T/T, Western Union,PayPal; 30% deposits; 70% balance before delivery.
Q3:What is MOQ and price ?
A4: We accept sample and bulk order, We will offer best price based on your order.
How to contact us?
Online Skype:jane-hsy;Or send your inquiry in the below,Then Click"Send" Pls!
