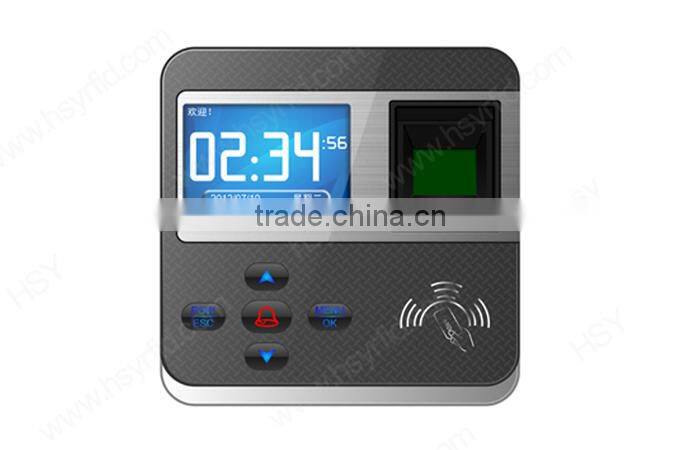

HSY-F211 Biometric time attendance for time recorder and fingerprint access control with TCP/IP RS485 USB interface and Software

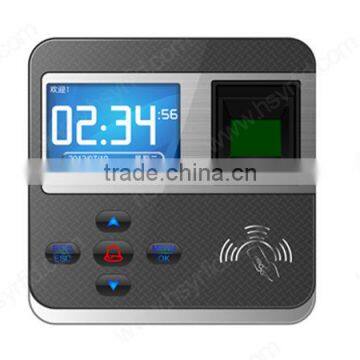

HSY-F211 is an innovative biometric fingerprint reader for Access control and Time attendance solution.
Small size and good design to ensure your safe access control solution.
Support network connection via LAN and WAN network.
(For example, you can connect your software from USA to the device in Germany)
HSY-F211 supports connecting to the external timing bell.
Support push technology (UDP) for attendance records.

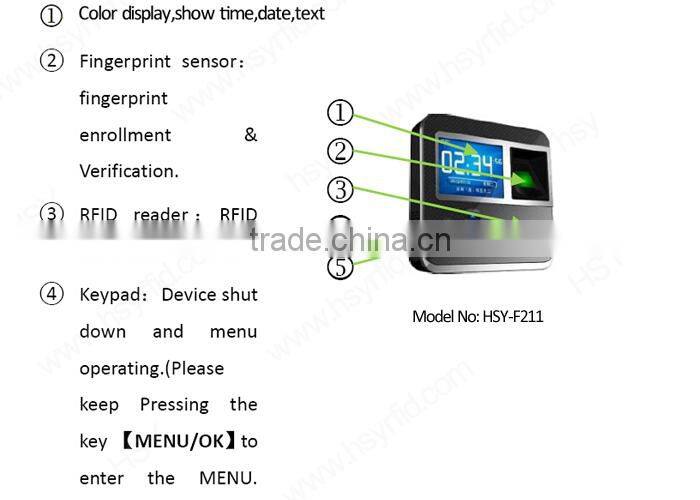

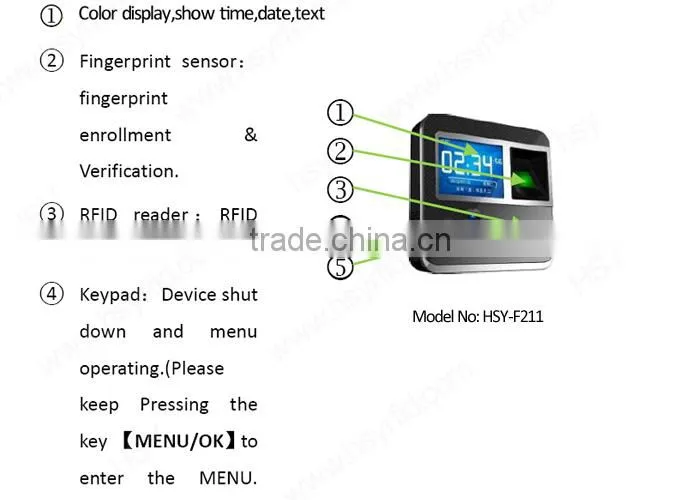

Function Instruction:
Biometric fingerprint terminal time attendance Spec:
Model | HSY-F211 (fingerprint TA & AC reader) |
LCD Screen | 2.4 inch TFT (320*240) color screen |
Fingerprint Sensor | Optical sensor (500DP) |
CPU | ARM926EJ CPU, Running Frequency:0-200MHZ |
Software OS | XP / Win2003 / Vista / Win7 / Win8 (support both 32bit / 64bit) |
Fingerprint Capacity | 800 |
Records Capacity | 50,000 |
Operating Mode | Off-line / On-line |
Authentication Method | Fingerprint / RFID Card (125Khz, EM4100) |

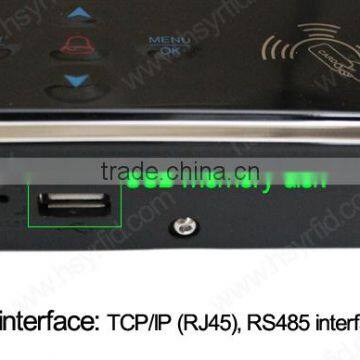

Communication | TCP/ IP, RS485, USB Memory Disk |

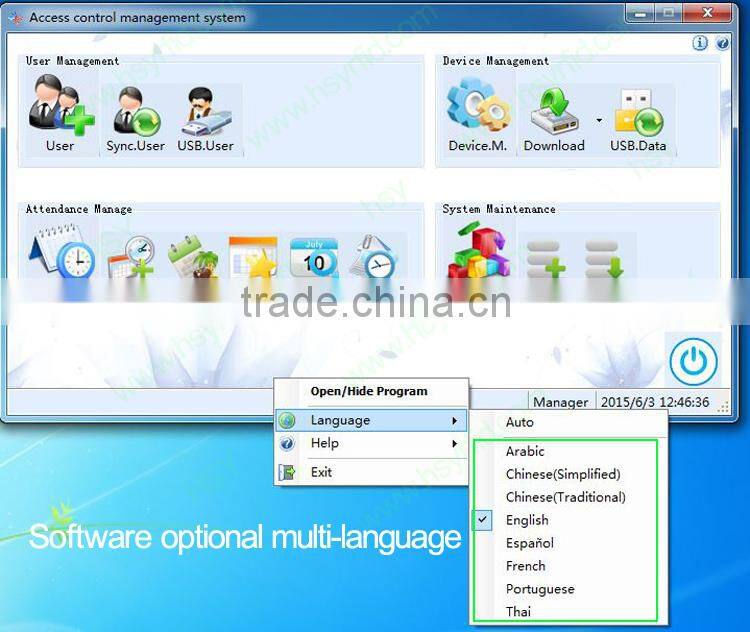

Language | Chinese / English / Spanish / Arabic / German (could customize others) |
Bell | Built-in timing bell (can connect to external timing bell) |
Access Control Interface | Wiegand 26/34, Door Lock, Siren, Exit Button(1 group), Door Bell, Door Sensor |
Professional Access Function | Open door by multilevel verification, anti-pass back |
Power Supply | 12VDC / 2A |
Operating environment | Operating Temp: 0degree ~45degree,humidity:20%~80% |
Dimensions (L*W*H) | 103mm×103mm×31mm |

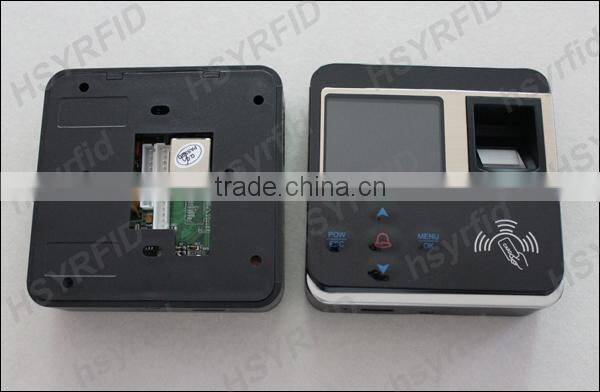

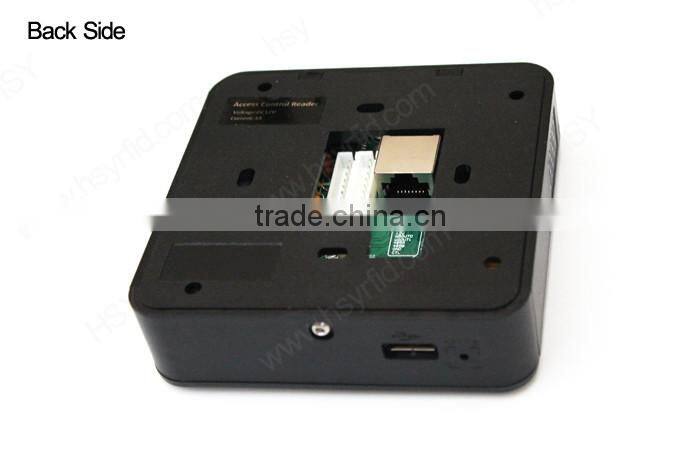

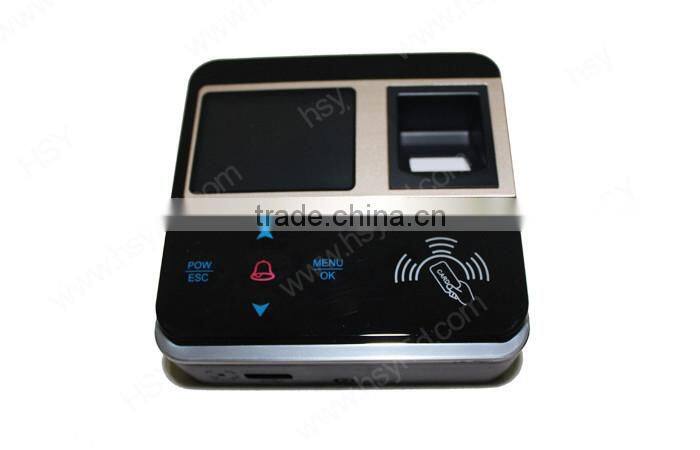

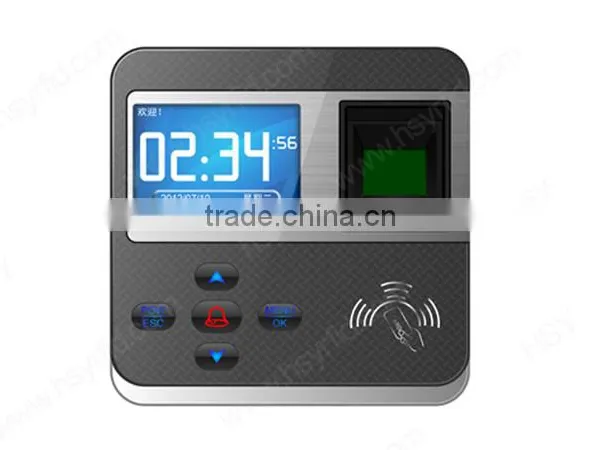

Biometric fingerprint terminal time attendance Shows:

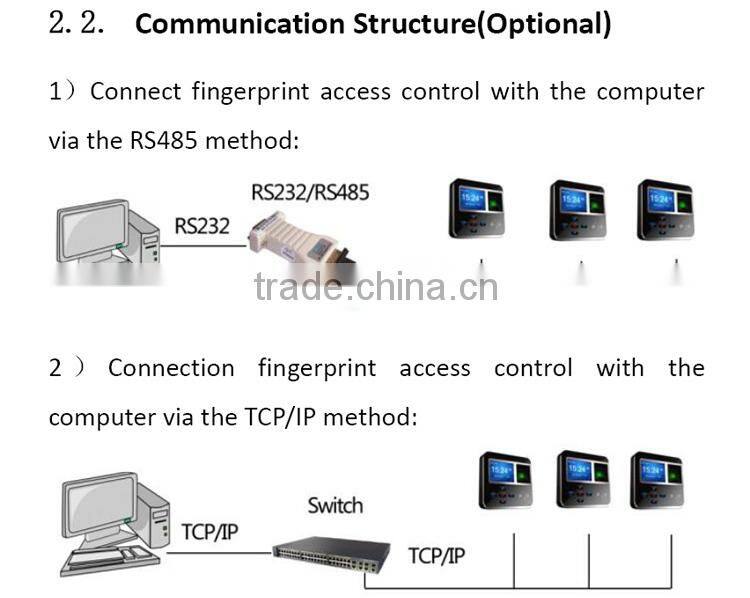

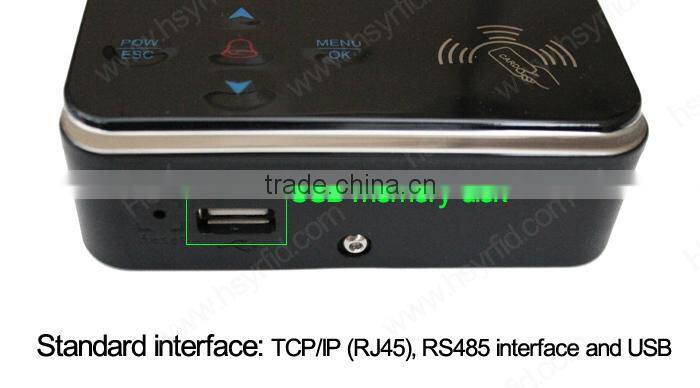

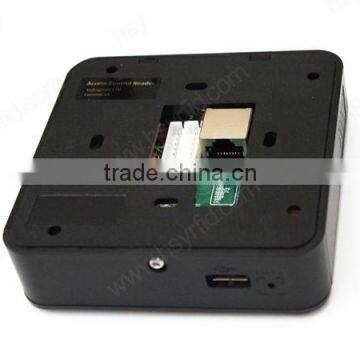

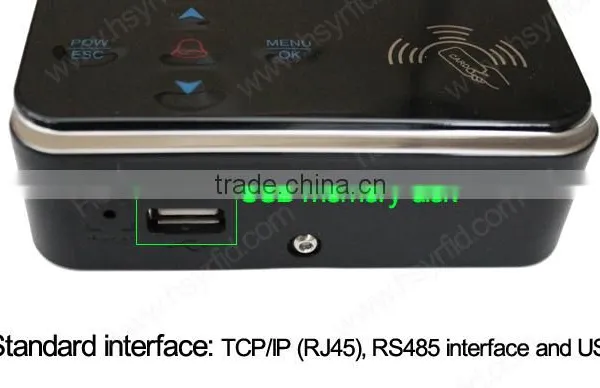

Communication:

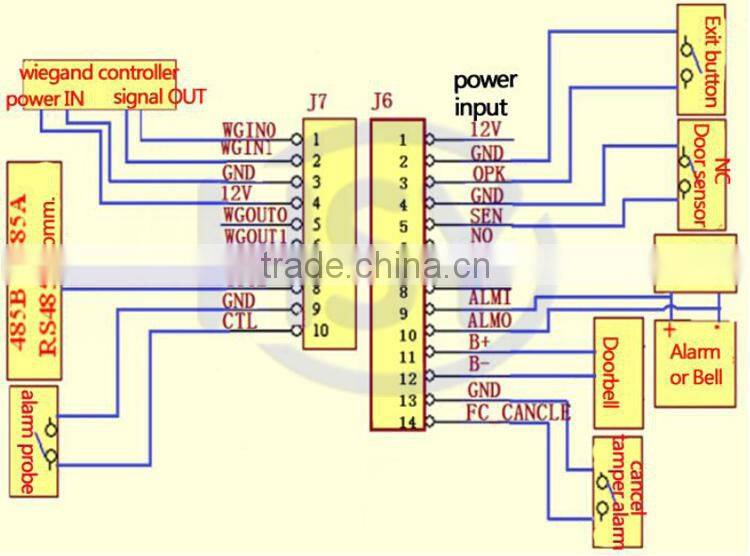

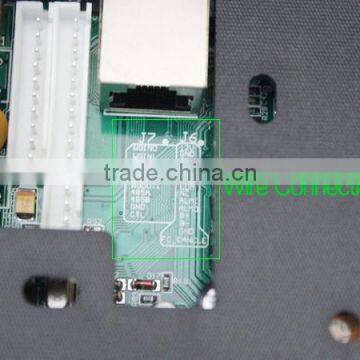

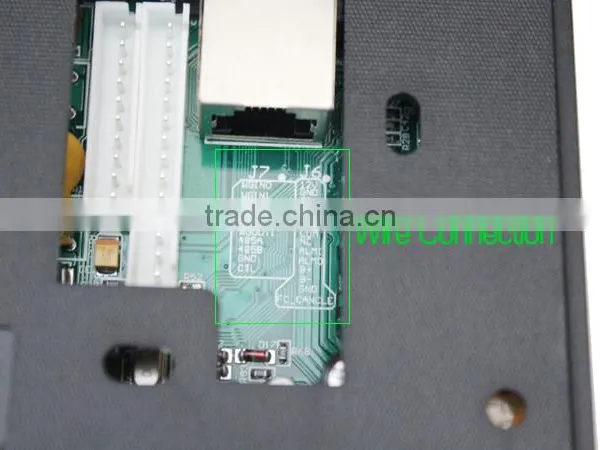

Wire connection:

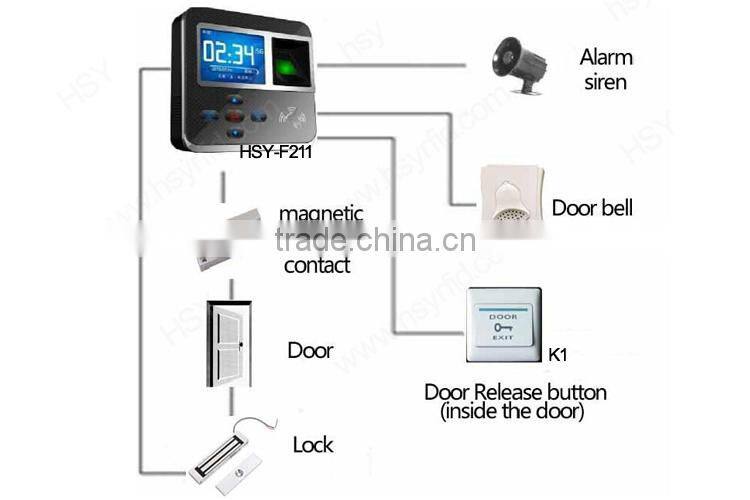

Access Control function diagram:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door service;
2. By Air or by Sea for bulk goods, for FCL; Airport/ Port receiving;
3. Support Customers specifying freight forwarders or selected shipping methods!
4. Delivery Time: 2~7 working days. Accurate deliver based on your quantity .
