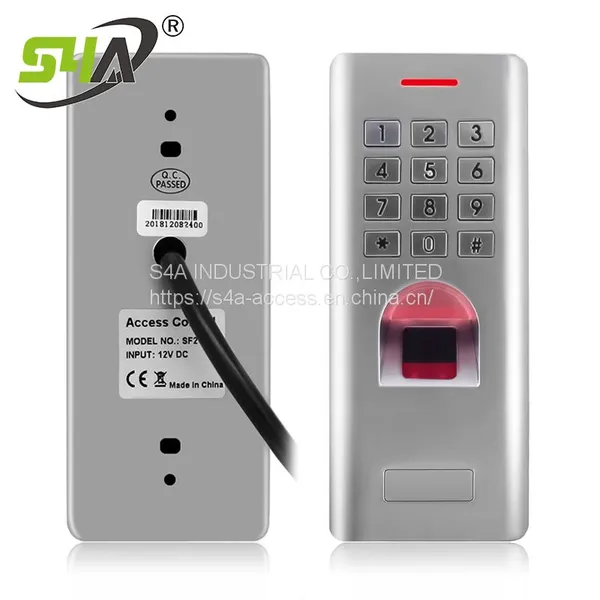

IP66 Fingerprint and Pincode Access Control Door Keypad Locks
Model No.: SF2 Pincode&Finger
The device is a waterproof metal case standalone fingerprint access control with the keypad.
IP66 waterproof makes it very suitable for outdoor use.
The device supports up to 1000 fingerprint users and 2000 PIN users, with Wiegand 26~44 bits output, it can also work as a slave reader to connect to a 3rd party controller.
The device supports fingerprint access, PIN access, and multi-users access; with external alarm, door contact, exit button.
User Capacity |
3,000 |
Fingerprint |
1,000 |
PIN |
2,000 |
Operating Voltage |
12V DC±10% |
Idle Current |
≤45mA |
Active Current |
≤150mA |
Fingerprint Reader |
Optical Fingerprint Module |
Resolution |
500DPI |
Identification ime |
≤1S |
FAR |
≤0.01% |
FR |
≤0.1% |
PIN Length |
4~6 digits |
Wiring Connections |
Relay Output, Exit Button, DOTL, Alarm, |
Wiegand Output | |
Relay |
One (NO, NC, Common) |
Adjustable Relay Output Time |
0-99 Seconds (default: 5 seconds) |
Adjustable Alarm Output Time |
0-3 Minutes (default: 1 minute) |
Lock Output Load |
2 Amp Maximum |
Alarm Output Load |
5 Amp Maximum |
Wiegand Interface |
Wiegand 26~44 bits output (default: 26bits) |
Environment |
Meets IP66 |
Operating Temperature |
-30°C ~ 60°C (-22°F ~140°F) --Default |
-40°C ~ 60°C (-40°F ~140°F) --Optional | |
Operating Humidity |
20%RH-90%RH |
Physical |
Zinc-alloy Enclosure |
Surface Finish |
Powder Coat |
Dimensions |
L137 × W58 × D26 (mm) |
Unit Weight |
400g |
Shipping Weight |
500g |
