HSY-01 RS485 Network TCP/IP Interface Password Mode Single Door Access Control Board with Free Software and SDK
Introduction:
Access Systems are built on flexible, open technology to provide management, real-time monitoring ,
and control of your access control system—all from a browser, with no additional software to install.
Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and
allow you to easily manage all of your access points in a single location. can communicate at
Ethernet TCP/IP networks.
It can store up to 10,000 cardholders.
Features :
HSY-01 is now capable to handle 1 door / 2 readers.
1. 10000 cards and 30,000 offline records.
2. Wiegand input metal case power supply.
3. Have SDK and software.
4. Support password mode, realizing card and password double authentification.
5. Data memory function, back-up battery can ensure the terminal working without power.
6. Web base( Browser/ server ) software with complete.
7. Basic function setting : Door Sensor Alarm, first card setting, time one, double door
linkage, threaten password, door often-open status setting, anti-pass back, electronic
map, remote control real time monitor.
Single door access control board Specification:
| User | 10,000 |
| Event Buffer | 30,000 |
| Power / Current | 220V, 50HZ input, 12V, 3A output |
| Reader Port | 2ea (26bit Wiegand , 8bit Burst for PIN) |
| Communication | TCP/IP; RS485 |
| Baud Rate | 38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable) |
| LED Indicator | LED indication for communication, power, status and punchcard |
| Operating Temperature | 0°to +55°C |
| Operating Humidity | 10% to 80% relative humidity non-condensing |
| Dimension (L*W)mm | 160*110*28 mm |
| Certification | CE, FCC |

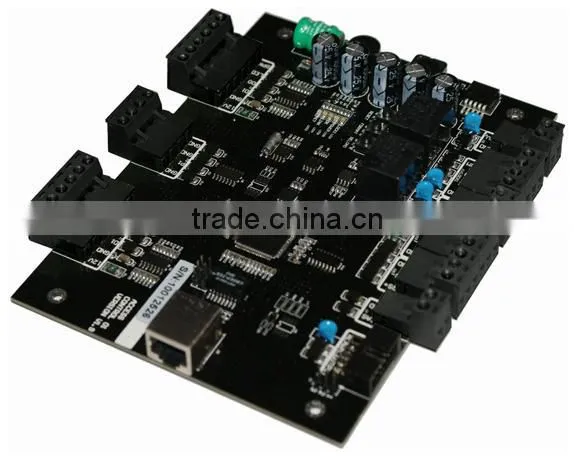

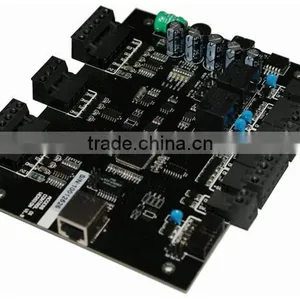

Single door access control board photos:
Optional metal case power supply:
Wire diagram:
Attention:
1. Wiring standard:
Even the connection distance is very short, is must be implemented according to the
following requirement
2. 220V AC power cable:
Three- wire power supply,the cross-sectional area 1.0 square or more.It's required that
power supply must be grounded to prevent from power interference
3. The line of electric lock to controller:
It's recommended to use two-wire power line,the cross-sectional aera 1.0 square or more.
if the distance over 50meter,it's considered to use thicker line or multiple paraller.
4. TCP/IP communication line: Network cable
5. The card reader, door sensor and button line:
Can use network cable or others.
Operator Manual shows:

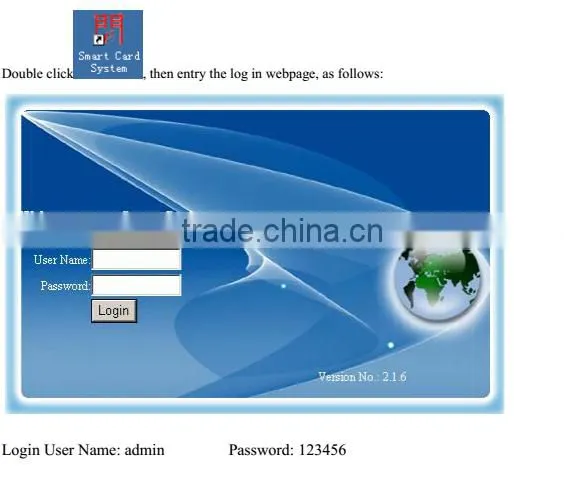

Operator Management:

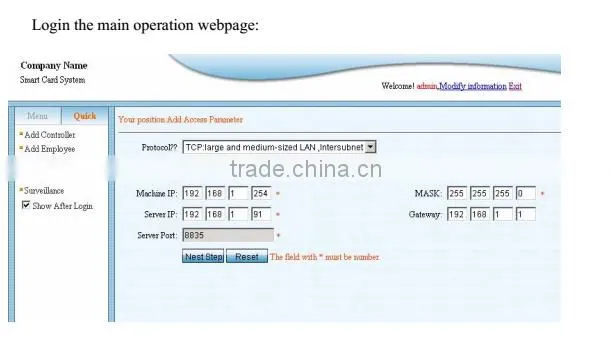

System Setting:

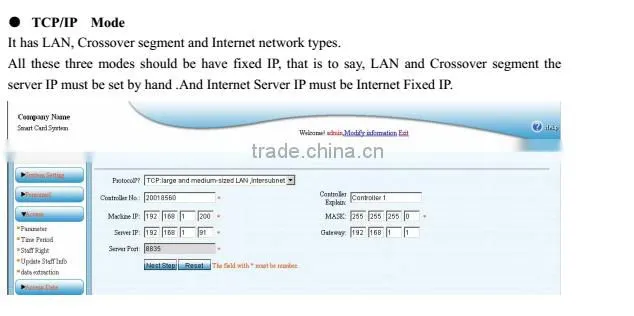

TCP/IP Mode Setting:
RS485 Mode Setting:

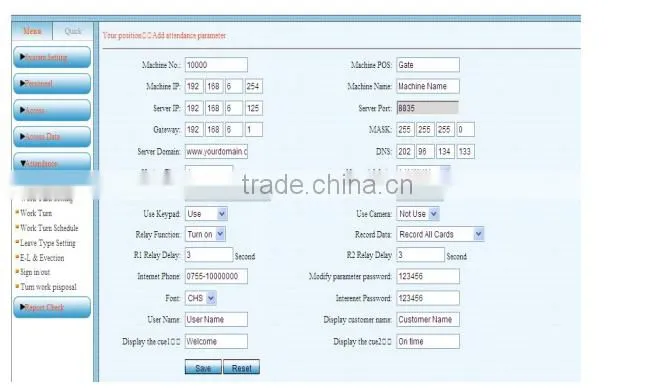

Attendance Management Setting:
together with metal case power supply around 4kgs per unit.
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door service;
2. By Air or by Sea for bulk goods, for FCL; Airport/ Port receiving;
3. Support Customers specifying freight forwarders or selected shipping methods!
4. Delivery Time: 2~7 working days. Accurate deliver based on your quantity .
Company & Certification :
Why choose us ?
FAQ:
Q1: What is the Warranty for products ?
A1: Our warranty :1 years' product warranty, A lifetime technical support .
Q2: How to make payment ?
A2: We can accept transfer by T/T, Paypal, Westerm union and Escrow.
Q3: How to install software ?
A3: It have free software and SDK in package.You can follow it.
Q4: What is MOQ and price ?
A4: We accept sample and bulk order, We will offer best price based on your order.
How to contact us?
Online Skype:jane-hsy;Or send your inquiry in the below,Then Click"Send" Pls!
