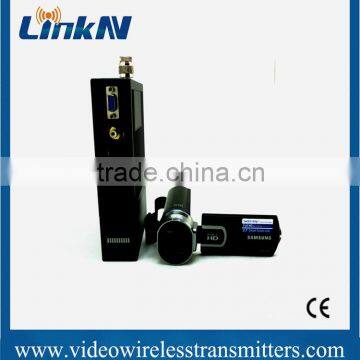

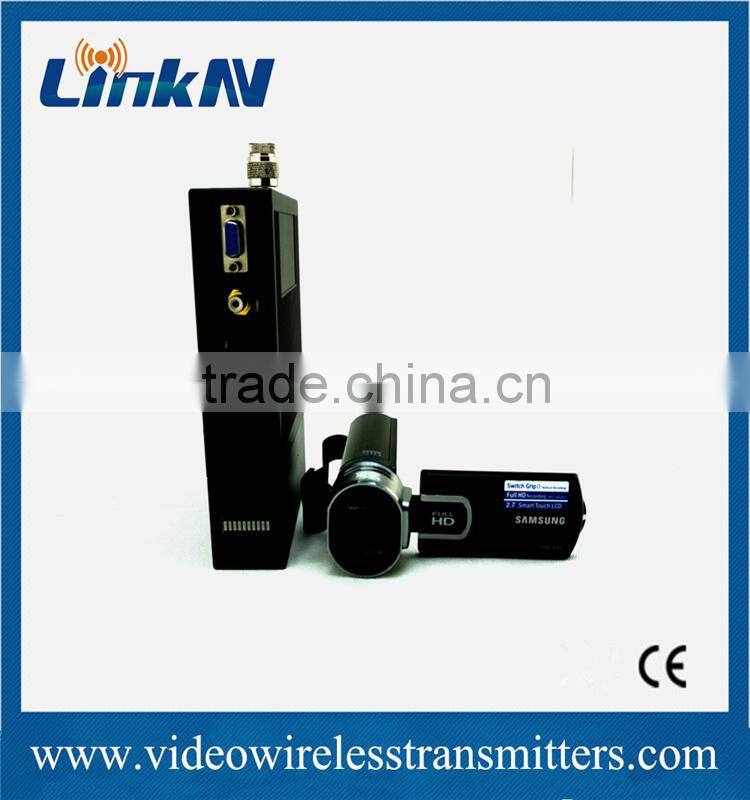

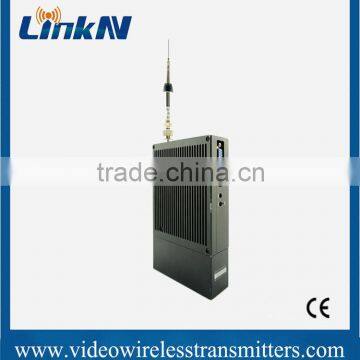

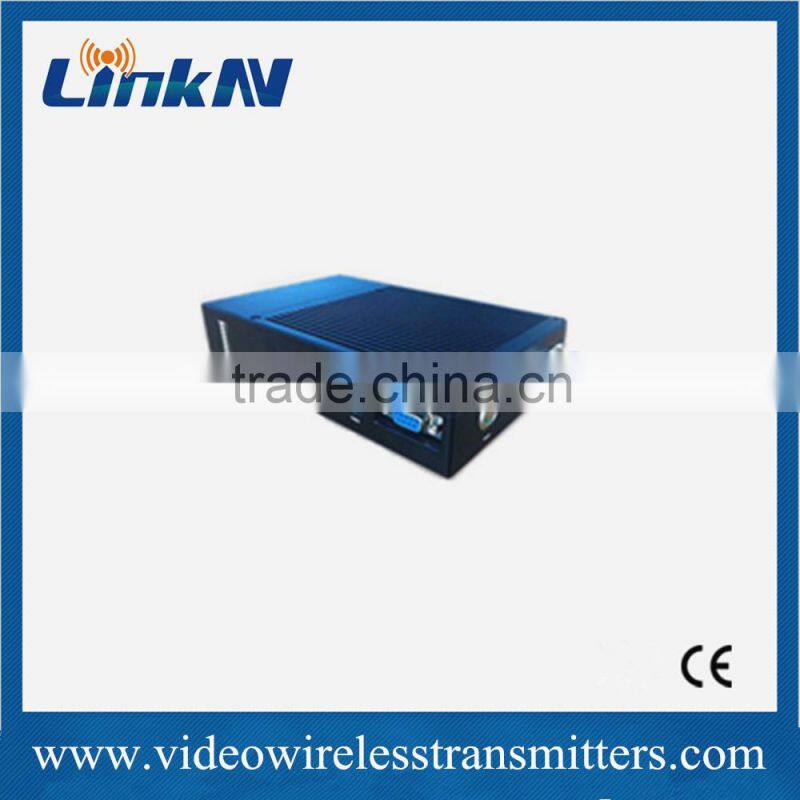

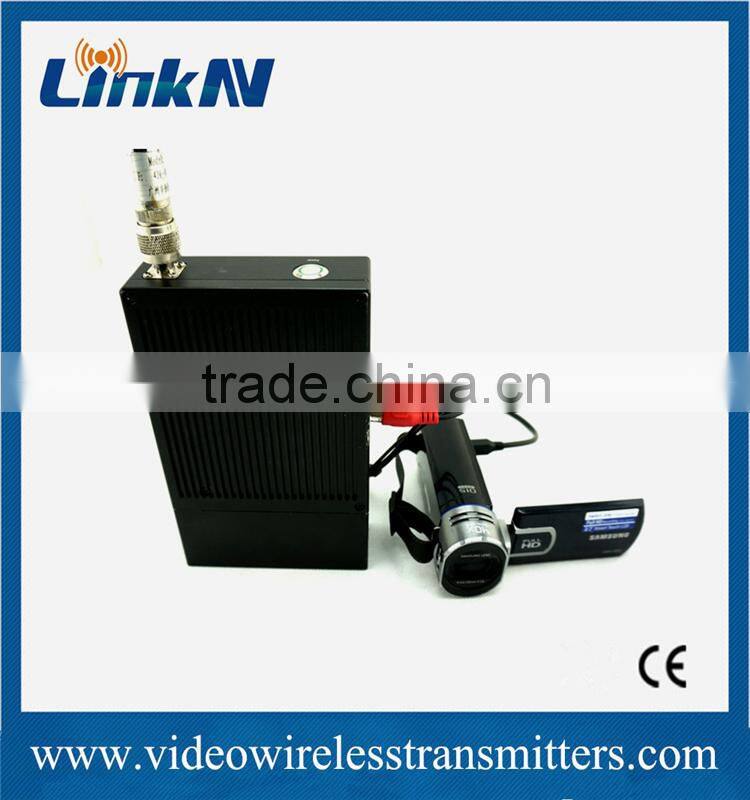

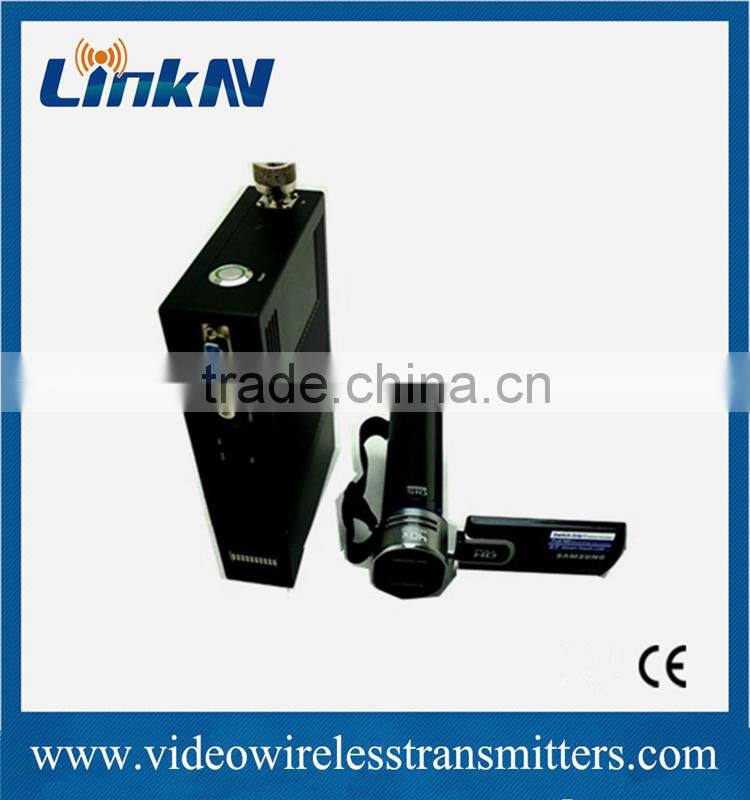

Help CenterRS232 Wireless Video Transmitter Sending Dual Audio Frequency Signals
Related Products
-
Backpack Stable Performance Audio Bipolar Transmission SD Video TransmitterUS$ 1 - 7,000MOQ: 1 Piece -
AC 100-260V Power Input On-board Bidirectional RF Audio Video TransceiverUS$ 1 - 10,000MOQ: 1 Piece
-
2U On-board Audio Video Wireless Signals TransceiverUS$ 1 - 10,000MOQ: 1 Piece
-
43 DBm TDD-OFDM Modulation On-board Audio Video Bidirectional Transmission DeviceUS$ 1 - 10,000MOQ: 1 Piece
-
Max. 50W Low Power Consumption Top Quality Vehicle-mounted Two-way AV RF DeviceUS$ 1 - 10,000MOQ: 1 Piece
LinkAV wireless transmission system advantages:
1. Long range transmission distance
2. Real-time transmission systems
3. Low delay less than 500ms
4. Perfect image quality, bright colors and smooth image.
( Video demonstration could be provided on request )
Product Features:
1. Embedded module function, low power consumption, built-in cooling fan
2. Stable power, dynamic power adjustable
3. Support Intra-frequency/Differ-frequency networking, automatic roaming
4. NLOS transparent IP data transmission, two-way voice communication
5. Encryption: AES 128 bit
6. Dual mode adaptive positioning
Technicol parameters:
| Item | Description | |
| RF Parameter | Working Frequency | 300~800 MHz (Customizable) |
| RF Bandwidth | 2/4/8 MHz | |
| Modulation Type | TDD-OFDM | |
| Communication Method | TDMA Full Duplex | |
| Power Output | ≤ 30 dBm | |
| Band Flatness | ≤ ± 0.5 dB | |
| Spurious Spectrum | ≤ -36 dBm | |
| Third-order IMD | ≤ -36 dBC | |
| Receiving Sensitivity | ≤ -100 dBm | |
| Anti-adjacent Frequency Interfere | ≥ 40 dB | |
| Data | Synchronization Control | GPS |
| Network Protocol | IP/TCP UDP HTTP SMTP | |
| Encoding | Video Compression | H.264 |
| Video Format | CIF/D1/720P | |
| Audio Encoding | 64Kbps G.711 | |
| Audio Input | Two-channel 12 dBm | |
| Generic Specificaton | Working Environment | -30~+70 ℃ |
| Power Input | DC 10~16V | |
| Power Consumption | 15~30W | |
| Dimensions | 54×128×220 mm | |
| Weight | 1.7 Kg | |
| Connector | AV Interface | BNC video input, 3.5mm standard headset |
| Control System Data Connector | RS232 | |
| RF Antenna Terminal | RF head | |
| Network Interface | RJ45 | |
Applications include:
- Government surveillance
- Law Enforcement
- Urban combat training with many multiple RF reflections
- Unmanned vehicles: UAV, UGV, USV
- Covert Surveillance
- Robots
- Portable microwave products
Our service:
1. Accept all terms of trade
2. Provide professional system design and construction
3. Lifelong maintenance
4. 24-hour technical support
5. We are professional wireless transmission products manufacturer. With 10 years experience, we can provide high quality products,better product pre-sales and after-sales service,attractive prices and short delivery time.
