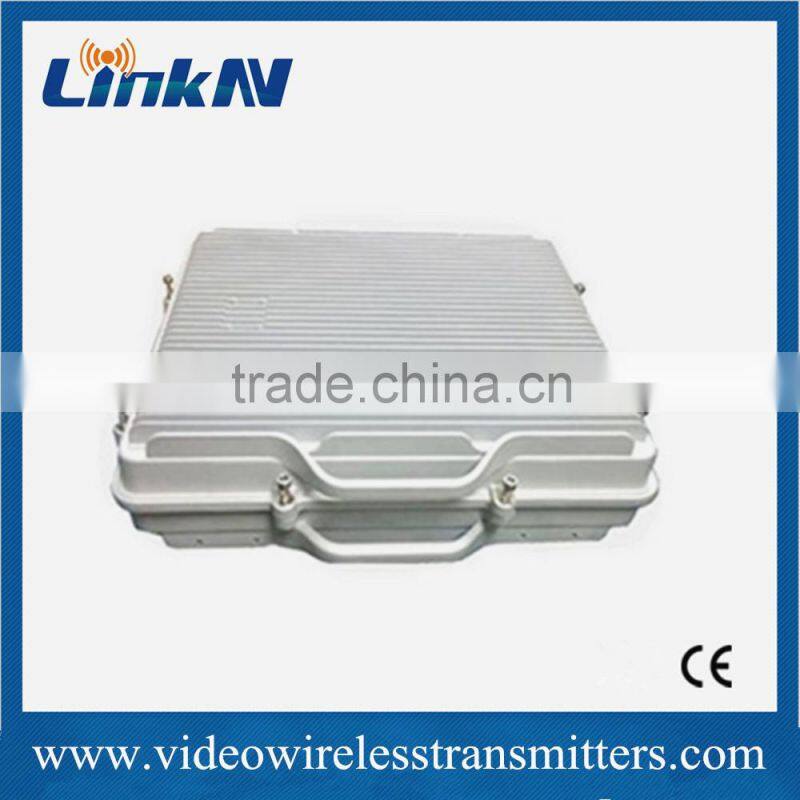

Help CenterHigh Quality Waterproof Wireless AV Transmitter and Receiver
Related Products
-
TDD 2U Low Power Consumption Indoor Base StationUS$ 1 - 8,000MOQ: 1 Piece -
GPS/Beidou Synchronize Control Base Station TransceiverUS$ 1 - 4,000MOQ: 1 Piece
-
Differ-frequency Networking Portable Base Station TransceiverUS$ 1 - 4,000MOQ: 1 Piece
-
AES 128 Bit Encryption Wireless Digital Base Station TransceiverUS$ 1 - 4,000MOQ: 1 Piece
-
TDD-OFDM Modulation Wireless Base Station TransceiverUS$ 1 - 4,000MOQ: 1 Piece
LinkAV wireless transmission system advantages:
1. Long range transmission distance
2. Real-time transmission systems
3. Extremly low delay less than 500ms
4. Perfect image quality, bright colors and smooth image.
( Video demonstration could be provided on request )
Product Features:
1. Modular design, three-proof, low power consumption
2. Support identical frequency/different frequency networking
3. Stable power, dynamic power adjustable
4. Non line of sight transparent transmission of IP data
5. Single carrier frequency support 4 users two-way data transmitt simultaneously.
6. Encryption: AES 128 bit
7. Support remote surveillance and alarming
Technique parameters:
Item |
TJ+340 |
|
RF Parameters |
Working Frequency |
300~800MHz ( Customizable) |
Modulation Bandwidth |
2 / 4 / 8MHz |
|
Modulation Type |
TDD-OFDM |
|
Communication Mode |
TDMA Full Duplex |
|
Power Output |
≤43 dBm |
|
Band Flatness |
≤ ±0.5 dB |
|
Spurious Spectrum |
≤ -36 dBm |
|
Third-order IMD |
≤ -36 dBC |
|
Receiving Sensitivity |
≤ -100 dBm |
|
MER |
≥ 36 dB |
|
Anti Adjacent Frequency Interference |
≥ 40 dB |
|
Data |
Synchronization Control |
GPS/Beidou with Synchronized clock |
Transmission Bandwidth |
Up to 14Mbps |
|
Network Protocol |
IP/TCP,UDP,HTTP,SMTP |
|
Business Unit |
Video Decoder |
8-channel D1 or 4-channel 720p video decoding(similar to Matrix) |
Generic Specification |
Working Temperature |
-30 ~ +70°C |
Power Supply |
100 – 260V |
|
Power Consumption |
≤50W |
|
Dimensions |
489*409*140 mm |
|
Net Weight |
≤10Kg |
|
Connector |
Power Interface |
Waterproof 3 core aviation F head |
Data Connector |
Waterproof screw-thread aviation head |
|
RF Antenna Interface |
NF head |
|
| GPS/Beidou Antenna | SMA F head | |
Applications include:
- Government surveillance
- Law Enforcement
- Urban combat training with many multiple RF reflections
- Unmanned vehicles: UAV, UGV, USV
- Covert Surveillance
- Robots
- Portable microwave products
Our service:
1. Accept all terms of trade
2. Provide professional system design and construction
3. Lifelong maintenance
4. 24-hour technical support
5. We are professional wireless transmission products manufacturer. With 10 years experience, we can provide high quality products,better product pre-sales and after-sales service,attractive prices and short delivery time.
