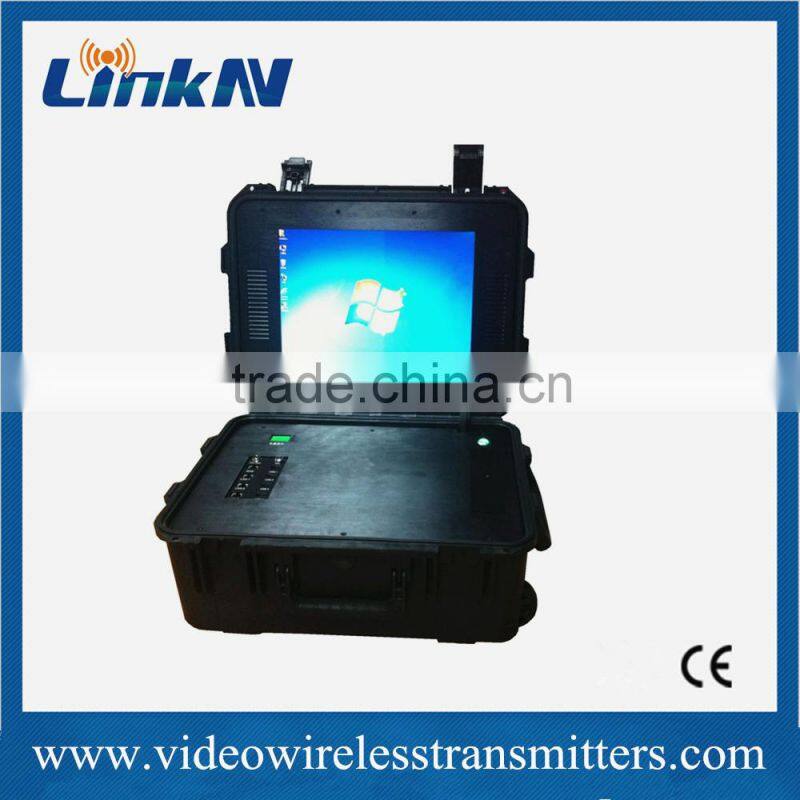

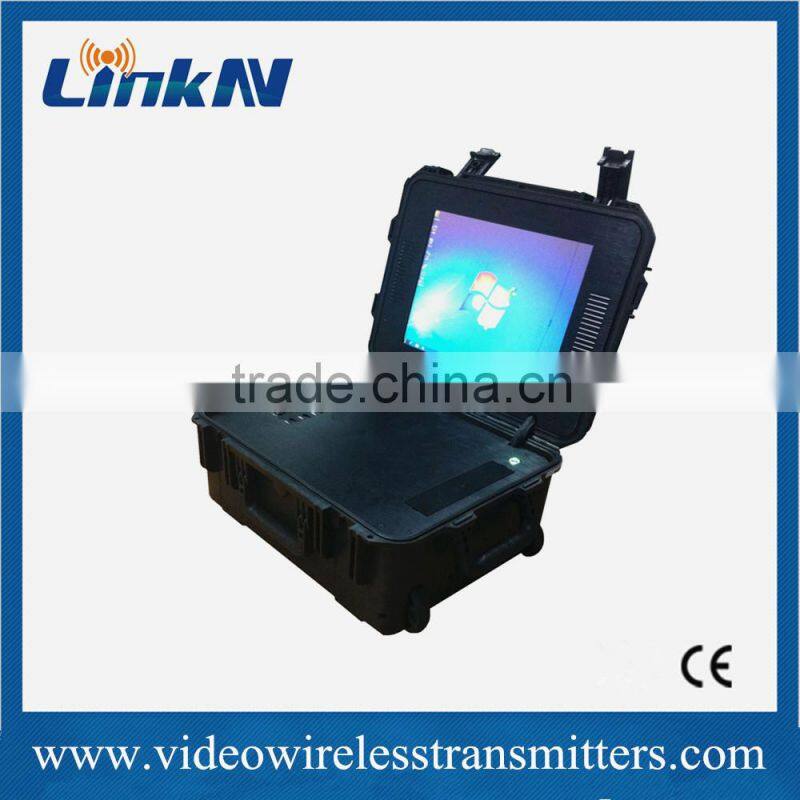

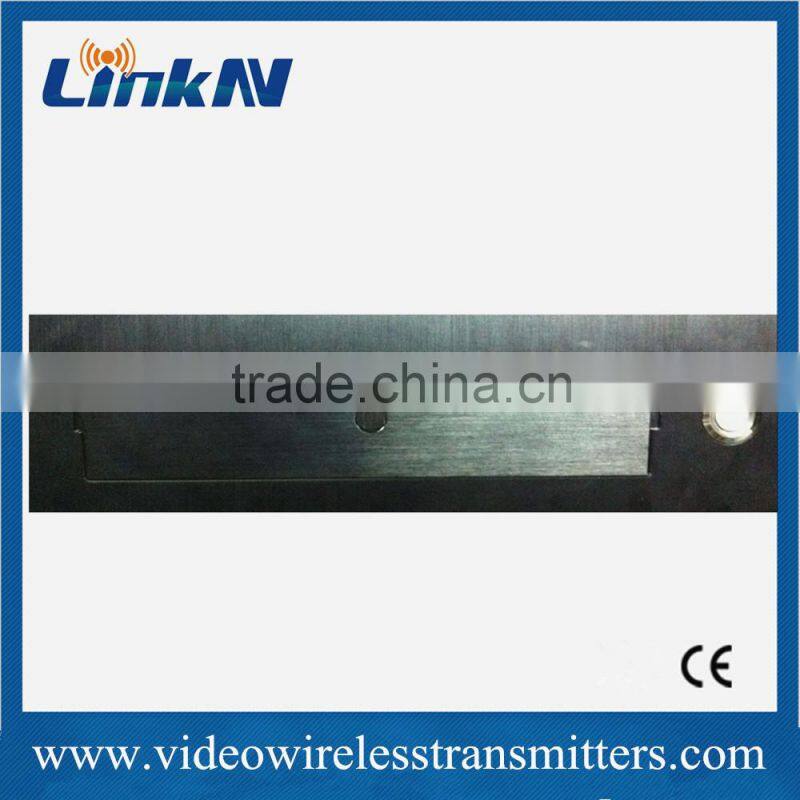

Help CenterMulti Users Data Bidirectional Transmission Portable HD Base Station
Related Products
-
Network Protocol Portable Basestation Receiver for IP/TCP/UDP/HTTP/SMTPUS$ 3,500 - 8,500MOQ: 1 Piece -
Outdoor, Waterproof Base Station,Wireless AV Transceiver for CCTVUS$ 7,600 - 9,200MOQ: 1 Piece
-
Portable 4 Channels,Video Wireless ,HD Transceiver for EmergencyUS$ 8,800 - 12,000MOQ: 1 Piece
-
LinkAV-TJ340-20W 2U Indoor Base Station Wireless TransceiverUS$ 1 - 8,000MOQ: 1 Piece
-
RJ45 Network Interface Portable USB Digital AV Base StationUS$ 1 - 8,000MOQ: 1 Piece
LinkAV wireless transmission system advantages:
1. Long range transmission distance
2. Real-time transmission systems
3. Extremly low delay less than 500ms
4. Perfect image quality, bright colors and smooth image.
( Video demonstration could be provided on request )
Product Features:
1. Embedded module function, data transfer and display integrate all-in-one
2. Stable power, dynamic power adjustable
3. Support 8 channels video decoding, built in soft matrix, data storage
4. Single carrier frequency support max. 4 users simultaneously two-way data transmitt
5. Encryption: AES 128 bit
6. Flexible power supply
7. Built in microphone and PTZ control
Technique parameters:
Item |
TJ340-20W |
|
RF Parameters |
Working Frequency |
300~800MHz ( Customizable) |
Modulation Bandwidth |
2 / 4 / 8MHz |
|
Modulation Type |
TDD-OFDM |
|
Communication Mode |
TDMA Full Duplex |
|
Power Output |
≤43 dBm |
|
Band Flatness |
≤ ±0.5 dB |
|
Spurious Spectrum |
≤ -36 dBm |
|
Third-order IMD |
≤ -36 dBC |
|
Receiving Sensitivity |
≤ -100 dBm |
|
MER |
≥ 36 dB |
|
Anti Adjacent Frequency Interference |
≥ 40 dB |
|
Data |
Synchronization Control |
GPS/Beidou with Synchronized clock |
Transmission Bandwidth |
Up to 14Mbps |
|
Network Protocol |
IP/TCP,UDP,HTTP,SMTP |
|
Business Unit |
Video Decoder |
8-channel D1 or 4- channel 720p video decoding |
Display |
14 inches HD display |
|
Audio Communication |
Built in amplifier speaker |
|
| Data Storage | 1T HDD | |
Generic Specification |
Working Temperature |
-30 ~ +70°C |
Power Supply |
DC 12V battery ( 3 hours) |
|
Power Consumption |
15-30W |
|
Dimensions |
424*366*198 mm |
|
Net Weight |
≤10Kg |
|

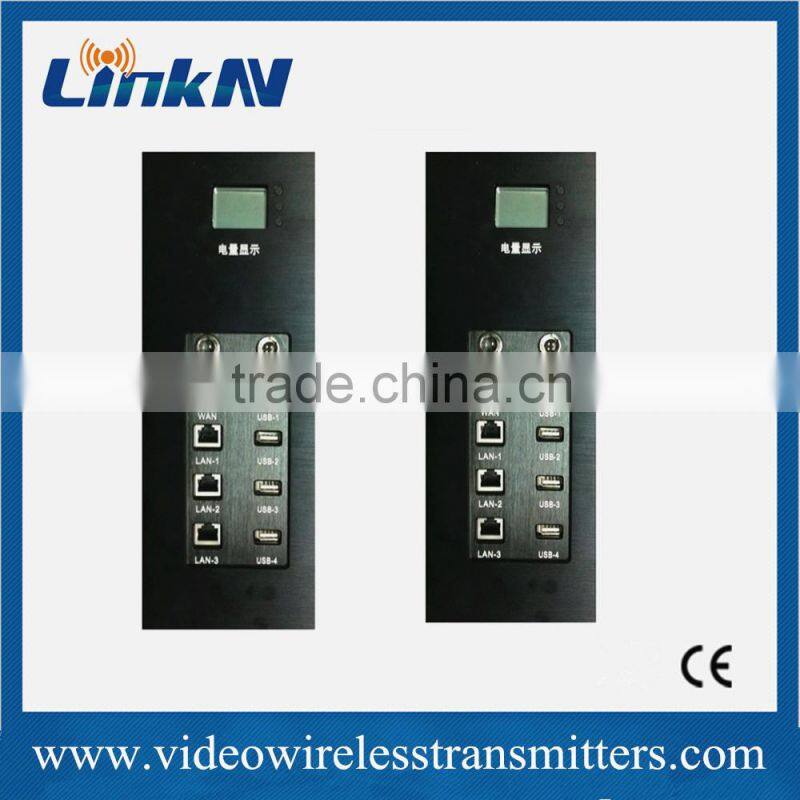

Connector |
Power Interface |
DC head |
Data Connector |
USB |
|
RF Antenna Interface |
NF head |
|
| Network Interface | RJ45 | |
Applications include:
- Government surveillance
- Law Enforcement
- Urban combat training with many multiple RF reflections
- Unmanned vehicles: UAV, UGV, USV
- Covert Surveillance
- Robots
- Portable microwave products
Our service:
1. Accept all terms of trade
2. Provide professional system design and construction
3. Lifelong maintenance
4. 24-hour technical support
5. We are professional wireless transmission products manufacturer. With 10 years experience, we can provide high quality products,better product pre-sales and after-sales service,attractive prices and short delivery time.
